What is the purpose of a Side-Mounted Vacuum Circuit Breaker?

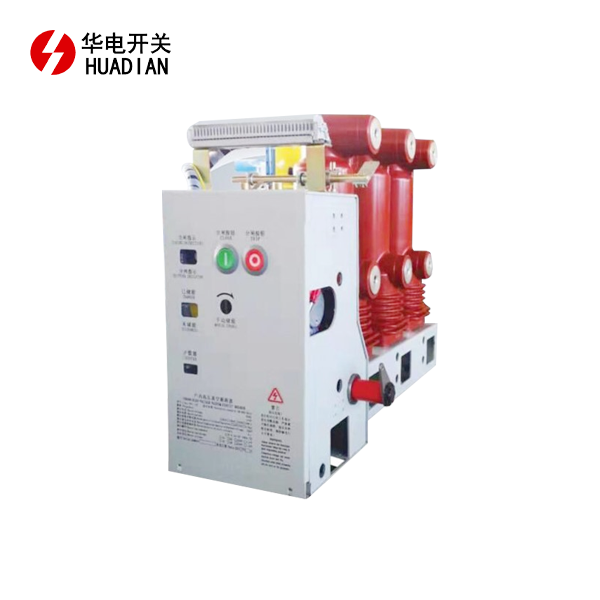

In the realm of electrical power distribution, safety and reliability are paramount. One crucial component that plays a significant role in ensuring both is the side-mounted vacuum circuit breaker. This article delves into the purpose and functionality of these essential devices, with a particular focus on the ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker.

Understanding Side-Mounted Vacuum Circuit Breakers

The Basics of Vacuum Circuit Breakers

Vacuum circuit breakers are sophisticated electrical devices designed to interrupt current flow in an electrical circuit to prevent damage from overloads or short circuits. Unlike their air or oil-filled counterparts, vacuum circuit breakers utilize a vacuum as the insulating medium. This unique feature allows for faster operation and improved arc extinction capabilities.

Side-Mounted Configuration Advantages

The side-mounted configuration of vacuum circuit breakers offers several advantages over traditional designs. By positioning the breaker on the side of the switchgear, it allows for easier access during maintenance and inspection procedures. This arrangement also optimizes space utilization within electrical substations and switchgear rooms, making it an ideal choice for installations where space is at a premium.

Key Components of Side-Mounted Vacuum Circuit Breakers

Side-mounted vacuum circuit breakers consist of several critical components, including vacuum interrupters, operating mechanisms, and control circuits. The vacuum interrupters house the main contacts and are responsible for extinguishing the arc during current interruption. The operating mechanism provides the necessary force to open and close the contacts, while the control circuits manage the breaker's operation and protection functions.

The Purpose and Applications of Side-Mounted Vacuum Circuit Breakers

Protection Against Electrical Faults

The primary purpose of a ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker is to protect electrical systems from damage caused by overcurrents, short circuits, and other fault conditions. When a fault is detected, the breaker rapidly interrupts the current flow, isolating the affected portion of the circuit and preventing further damage to equipment or potential safety hazards.

Enhancing System Reliability

Side-mounted vacuum circuit breakers play a crucial role in enhancing the overall reliability of electrical distribution systems. Their fast operating speeds and superior arc quenching capabilities result in minimal wear and tear on the contacts, leading to extended service life and reduced maintenance requirements. This increased reliability translates to fewer outages and improved continuity of power supply for end-users.

Versatility in Various Industries

The ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker and similar models find applications across a wide range of industries. They are commonly used in power generation plants, substations, industrial facilities, and commercial buildings. Their compact design and efficient operation make them particularly suitable for medium-voltage distribution systems, typically ranging from 3kV to 36kV.

Advantages of the ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker

Superior Arc Extinction

The ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker excels in arc extinction capabilities. The vacuum environment within the interrupter allows for rapid deionization of the arc, resulting in faster current interruption and reduced arc energy. This feature not only enhances the breaker's performance but also contributes to the longevity of the contacts and overall system safety.

Compact and Space-Efficient Design

One of the standout features of the ZN63A(VS1)-12C is its compact and space-efficient design. The side-mounted configuration allows for optimal use of available space within switchgear enclosures. This characteristic is particularly beneficial in retrofit applications or in installations where space constraints are a significant consideration.

Low Maintenance Requirements

The ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker is engineered for minimal maintenance. The vacuum interrupter technology eliminates the need for oil or gas refilling, reducing the frequency and complexity of maintenance procedures. Additionally, the robust construction and high-quality materials used in its manufacture contribute to its long-term reliability and reduced lifecycle costs.

Installation and Maintenance Considerations

Proper Installation Procedures

To ensure optimal performance and safety, proper installation of the ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker is crucial. This process involves careful handling of the equipment, precise alignment within the switchgear, and proper connection of control and power circuits. It is recommended that installation be carried out by qualified professionals with experience in medium-voltage switchgear.

Regular Inspection and Testing

While the ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker is designed for low maintenance, regular inspections and testing are essential to maintain its reliability. Periodic visual inspections should be conducted to check for any signs of wear or damage. Additionally, functional tests, including contact resistance measurements and timing tests, should be performed at intervals recommended by the manufacturer to ensure the breaker operates within specified parameters.

Troubleshooting Common Issues

Despite their robust design, side-mounted vacuum circuit breakers may occasionally experience issues. Common problems include failure to close or open, unusual noises during operation, or inconsistent tripping times. When troubleshooting these issues, it's important to follow proper safety procedures and consult the manufacturer's documentation. In many cases, problems can be resolved through simple adjustments or replacement of worn components.

Future Trends in Vacuum Circuit Breaker Technology

Integration with Smart Grid Systems

As power distribution networks evolve towards smart grid technologies, vacuum circuit breakers like the ZN63A(VS1)-12C are being integrated with advanced monitoring and control systems. This integration allows for real-time monitoring of breaker status, remote operation, and predictive maintenance capabilities, further enhancing the reliability and efficiency of electrical distribution systems.

Advancements in Materials and Manufacturing

Ongoing research in materials science is leading to the development of new alloys and composites for use in vacuum circuit breakers. These advancements promise to improve the performance and longevity of critical components such as contacts and interrupters. Additionally, advanced manufacturing techniques, including 3D printing and precision machining, are enabling the production of more complex and efficient breaker designs.

Environmental Considerations

With growing emphasis on environmental sustainability, future developments in vacuum circuit breaker technology are likely to focus on reducing environmental impact. This may include the use of more eco-friendly materials, improved energy efficiency, and designs that facilitate easier recycling at the end of the product's lifecycle. The ZN63A(VS1)-12C and similar models are already steps in this direction, as they eliminate the need for insulating oils or gases that can be harmful to the environment.

Conclusion

The ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker exemplifies the critical role these devices play in modern electrical distribution systems. Its purpose extends beyond mere current interruption; it is a cornerstone of system reliability, safety, and efficiency. As technology continues to advance, side-mounted vacuum circuit breakers will undoubtedly evolve, incorporating new features and capabilities to meet the changing needs of the power industry. For electrical engineers, facility managers, and industry professionals, understanding the purpose and capabilities of these devices is essential for designing and maintaining robust and reliable power distribution systems.
