What is the Difference Between Copper-Aluminum Contact Arms and Pure Copper or Aluminum Contact Arms?

Copper-aluminum contact arms differ significantly from pure copper or aluminum contact arms in their composition, performance, and cost-effectiveness. Copper-aluminum contact arms are bimetallic components that combine the advantages of both metals. They offer superior electrical conductivity from copper and the lightweight properties of aluminum, resulting in improved efficiency and reduced overall weight. In contrast, pure copper contact arms provide excellent conductivity but are heavier and more expensive, while pure aluminum arms are lightweight but less conductive. This unique combination in copper-aluminum contact arms makes them an optimal choice for many electrical applications, balancing performance and cost considerations.

Understanding Contact Arms in Electrical Systems

The Role of Contact Arms in Circuit Breakers

Contact arms play a crucial role in circuit breakers, serving as the primary conducting path for electrical current. These components are responsible for establishing and breaking electrical connections, making them essential for the proper functioning of switchgear equipment. In vacuum circuit breakers, contact arms are particularly important as they operate in a vacuum environment, requiring specialized materials and designs to ensure reliable performance.

Materials Used in Contact Arms

The choice of materials for contact arms is critical to their performance. Traditionally, pure copper and aluminum have been widely used due to their respective advantages. Copper offers excellent electrical conductivity and thermal properties, while aluminum provides lightweight characteristics and corrosion resistance. However, the advent of copper-aluminum contact arms has introduced a new option that combines the benefits of both materials, offering a balanced solution for modern electrical systems.

Importance of Contact Arm Design in Switchgear

The design of contact arms significantly impacts the overall efficiency and reliability of switchgear equipment. Factors such as contact resistance, heat dissipation, and mechanical strength are all influenced by the contact arm's design and material composition. Manufacturers like Shaanxi Huadian Electric Co., Ltd. invest considerable resources in developing advanced contact arm designs to meet the evolving needs of the electrical industry, focusing on optimizing performance while maintaining cost-effectiveness.

Copper-Aluminum Contact Arms: A Closer Look

Composition and Manufacturing Process

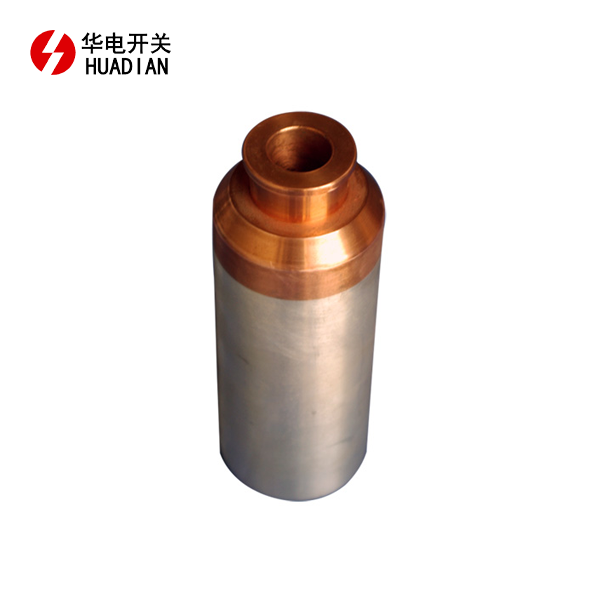

Copper-aluminum contact arms are bimetallic components created through a specialized manufacturing process. This process typically involves bonding a layer of copper to an aluminum core, resulting in a composite material that harnesses the strengths of both metals. The manufacturing techniques employed, such as friction welding or explosion bonding, ensure a strong and stable connection between the copper and aluminum layers, crucial for maintaining performance over the contact arm's lifespan.

Advantages of Copper-Aluminum Contact Arms

The unique composition of copper-aluminum contact arms offers several advantages over their single-metal counterparts. These include improved electrical conductivity compared to pure aluminum, reduced weight compared to pure copper, and enhanced heat dissipation properties. Additionally, the bimetallic nature of these contact arms can lead to cost savings, as they require less of the more expensive copper material while still delivering high performance.

Applications in Modern Electrical Systems

Copper-aluminum contact arms find extensive use in various electrical applications, particularly in medium and high-voltage switchgear. Their balanced properties make them ideal for vacuum circuit breakers, where weight, conductivity, and durability are critical factors. As electrical systems become more complex and demanding, the versatility of copper-aluminum contact arms positions them as a preferred choice for many manufacturers and end-users in the power distribution sector.

Comparing Contact Arm Materials

Pure Copper Contact Arms: Pros and Cons

Pure copper contact arms have long been a staple in electrical systems due to their outstanding conductivity. They offer minimal electrical resistance, excellent heat dissipation, and proven reliability. However, their higher weight and cost can be drawbacks, especially in applications where weight reduction is crucial. Additionally, copper's susceptibility to oxidation may require additional protective measures in certain environments.

Pure Aluminum Contact Arms: Strengths and Limitations

Aluminum contact arms are prized for their lightweight properties and corrosion resistance. They are significantly lighter than copper, making them advantageous in applications where weight is a critical factor. However, aluminum's lower electrical conductivity compared to copper can result in higher energy losses and heat generation. This limitation often restricts the use of pure aluminum contact arms in high-current applications.

Copper-Aluminum Contact Arms: The Best of Both Worlds

Copper-aluminum contact arms represent a compromise between pure copper and pure aluminum options. By combining copper's conductivity with aluminum's lightweight nature, these bimetallic components offer a balanced solution for many electrical applications. They provide improved performance over pure aluminum arms while being lighter and potentially more cost-effective than pure copper alternatives. This makes copper-aluminum contact arms an attractive option for manufacturers looking to optimize their switchgear designs.

Conclusion

The choice between copper-aluminum contact arms and pure copper or aluminum contact arms depends on the specific requirements of each application. Copper-aluminum contact arms offer a compelling middle ground, combining the strengths of both metals to provide a versatile solution for modern electrical systems. As the demand for more efficient and reliable switchgear continues to grow, the importance of selecting the right contact arm material becomes increasingly crucial. By understanding the differences and advantages of each option, engineers and procurement specialists can make informed decisions that optimize performance, cost, and longevity in their electrical equipment.
