What is the difference between a circuit breaker and a vacuum circuit breaker?

In the world of electrical systems, circuit breakers play a crucial role in protecting equipment and ensuring safety. As technology advances, various types of circuit breakers have emerged, each with its unique features and applications. Among these, vacuum circuit breakers have gained significant popularity due to their exceptional performance and reliability. This article will delve into the key differences between traditional circuit breakers and vacuum circuit breakers, helping you understand why the latter has become increasingly prevalent in modern electrical systems.

Understanding Circuit Breakers

The Basics of Circuit Breakers

Circuit breakers are essential components in electrical systems, designed to interrupt the flow of electricity when a fault or overload occurs. These devices protect electrical circuits from damage caused by excess current, short circuits, or ground faults. By automatically breaking the circuit, they prevent potential fires, equipment damage, and electrical hazards.

Types of Circuit Breakers

There are several types of circuit breakers available, each utilizing different technologies to interrupt the current flow. Some common types include air circuit breakers, oil circuit breakers, SF6 circuit breakers, and vacuum circuit breakers. Each type has its advantages and is suited for specific applications based on factors such as voltage level, interrupting capacity, and environmental conditions.

Operating Principles of Traditional Circuit Breakers

Traditional circuit breakers typically rely on a combination of mechanical and electrical mechanisms to interrupt the current flow. When a fault is detected, the breaker's contacts separate, creating an arc that helps extinguish the current. The arc is then cooled and extinguished using various mediums such as air, oil, or gas, depending on the type of circuit breaker.

Introducing Vacuum Circuit Breakers

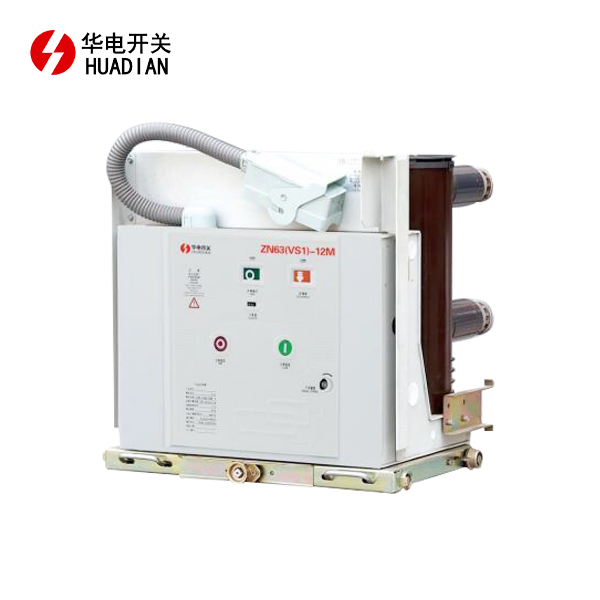

What is a Vacuum Circuit Breaker?

A vacuum circuit breaker is an advanced type of circuit breaker that utilizes a vacuum as the interrupting medium. In these devices, the contacts are enclosed in a vacuum chamber, which provides superior arc quenching capabilities. When the contacts separate, the arc is quickly extinguished due to the rapid dispersion of charge carriers in the vacuum environment.

Key Components of Vacuum Circuit Breakers

Vacuum circuit breakers consist of several critical components, including vacuum interrupters, operating mechanisms, and insulating materials. The vacuum interrupter is the heart of the breaker, containing the contacts and the vacuum chamber. The operating mechanism provides the necessary force to open and close the contacts, while the insulating materials ensure proper isolation between different parts of the breaker.

Advantages of Vacuum Circuit Breakers

Vacuum circuit breakers offer numerous advantages over traditional circuit breakers. These include higher interrupting capacity, faster operation, reduced maintenance requirements, and improved environmental friendliness. The absence of oil or gas as an interrupting medium also makes them safer and more reliable in various applications.

Comparing Circuit Breakers and Vacuum Circuit Breakers

Arc Interruption Mechanism

The key distinction between traditional circuit breakers and vacuum circuit breakers is in their arc interruption mechanism. Traditional circuit breakers use mediums like air, oil, or gas to cool and extinguish the arc, which can be a slower and less efficient process. In contrast, vacuum circuit breakers utilize the unique properties of a vacuum, where the lack of material allows the arc to be rapidly dispersed. This leads to faster current interruption, significantly lowering the chances of equipment damage and enhancing the reliability and safety of the entire electrical system.

Contact Wear and Maintenance

Vacuum circuit breakers exhibit notably reduced contact wear compared to their traditional counterparts. In a vacuum environment, the absence of oxidation and contamination prevents degradation of the contacts, which contributes to their longevity. This results in less frequent maintenance and repairs, as the contacts remain in better condition over time. Consequently, facilities using vacuum circuit breakers benefit from lower operational costs and enhanced system uptime, as the need for replacement parts and maintenance interventions is minimized. This increased durability also leads to improved overall reliability and efficiency of the electrical system.

Environmental Impact and Safety

Vacuum circuit breakers offer significant environmental and safety advantages over many traditional circuit breakers. Unlike conventional breakers that use oil or SF6 gas—substances that can be hazardous if leaked—vacuum circuit breakers operate without these potentially harmful materials. The use of a sealed vacuum chamber eliminates the risk of oil spills or gas leaks, reducing environmental contamination and safety hazards. This makes vacuum circuit breakers particularly suitable for applications where environmental impact and operational safety are critical considerations. Their design not only ensures a cleaner operational footprint but also enhances overall safety during use and maintenance.

Conclusion

In conclusion, while both traditional circuit breakers and vacuum circuit breakers serve the essential function of protecting electrical systems, vacuum circuit breakers offer several distinct advantages. Their superior arc quenching capabilities, reduced maintenance requirements, and environmental benefits make them an attractive option for modern electrical systems. As technology continues to evolve, vacuum circuit breakers are likely to play an increasingly important role in ensuring the safety and reliability of electrical networks worldwide.

Contact Us

If you're looking for high-quality vacuum circuit breakers or need expert advice on selecting the right circuit breaker for your application, don't hesitate to reach out to us. At Shaanxi Huadian Electric Co., Ltd., we specialize in manufacturing top-tier vacuum circuit breakers and other electrical equipment. Contact us today at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com to learn more about our products and how we can help optimize your electrical systems.
