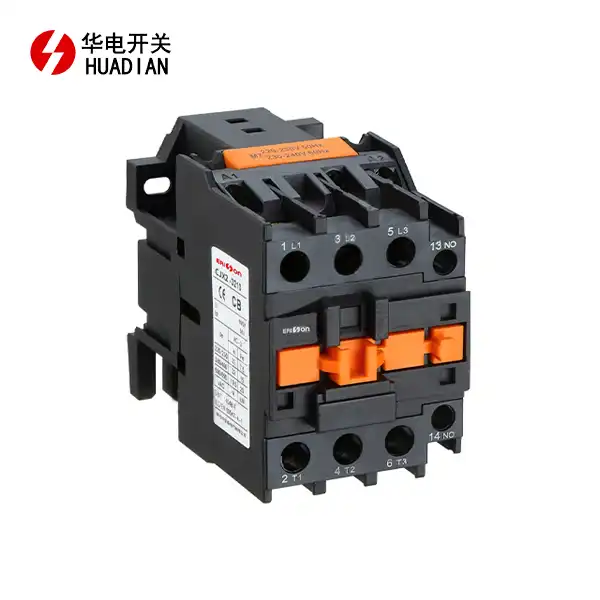

What is the AC contactor?

An AC contactor is a crucial electromechanical device used in electrical systems to control the flow of alternating current (AC) power. It functions as a switch, allowing or interrupting the flow of electricity to various loads such as motors, lighting systems, and heating equipment. AC contactors are designed to handle high current loads and frequent switching operations, making them indispensable in industrial, commercial, and residential applications. These devices consist of main contacts for power switching and auxiliary contacts for control circuits, all housed within a compact enclosure. AC contactors play a vital role in automating electrical systems, enhancing safety, and improving energy efficiency in numerous applications across diverse industries.

Components and Working Principle of AC Contactors

Main Components of an AC Contactor

AC contactors comprise several key components that work together to facilitate reliable power switching. The main contacts are typically made of silver alloy or other highly conductive materials to ensure efficient current flow and minimize contact resistance. These contacts are designed to withstand frequent making and breaking of electrical circuits under load conditions. The electromagnetic coil, another crucial component, generates the magnetic field necessary to actuate the contactor when energized. This coil is usually wound around an iron core to enhance its magnetic properties. Additionally, AC contactors feature a spring mechanism that returns the contacts to their original position when the coil is de-energized, ensuring fail-safe operation.

Operating Mechanism of AC Contactors

The working principle of an AC contactor revolves around electromagnetic actuation. When the control circuit energizes the electromagnetic coil, it generates a strong magnetic field. This field attracts the movable armature, which is mechanically linked to the main contacts. As the armature moves, it closes the main contacts, allowing current to flow through the power circuit. The contactor remains in this closed state as long as the coil is energized. When the control signal is removed, the spring mechanism overcomes the magnetic force, opening the contacts and interrupting the power flow. This simple yet effective mechanism allows for remote control of high-power circuits using low-power control signals, enhancing both safety and operational efficiency.

Arc Suppression and Contact Protection

One of the critical aspects of AC contactor design is arc suppression. When the contacts open under load, an electric arc may form, potentially damaging the contacts and reducing the contactor's lifespan. To mitigate this issue, manufacturers employ various arc suppression techniques. These may include specially designed contact geometries, arc chutes, or magnetic blowout coils. Arc chutes, for instance, consist of metal plates that divide and cool the arc, extinguishing it more quickly. Some advanced contactors also incorporate electronic circuits for zero-crossing switching, which minimizes arcing by timing the contact opening with the AC waveform's zero-crossing point. These features contribute to the longevity and reliability of AC contactors in demanding applications.

Applications and Advantages of AC Contactors

Industrial and Commercial Applications

AC contactors find extensive use in a wide range of industrial and commercial settings. In manufacturing facilities, they control large motors that drive conveyor belts, pumps, and compressors. HVAC systems in commercial buildings rely on AC contactors to regulate the operation of air conditioning units and ventilation fans. In the power distribution sector, these devices play a crucial role in switchgear assemblies, managing the flow of electricity across various circuits. Construction equipment, such as cranes and hoists, utilize AC contactors for motor control and overload protection. The versatility of AC contactors makes them indispensable in automation systems, where they facilitate the precise control of multiple loads based on programmed sequences or sensor inputs.

Advantages in Energy Management

One of the significant advantages of AC contactors is their contribution to energy management and efficiency. By allowing remote switching of high-power loads, they enable the implementation of sophisticated energy-saving strategies. For instance, in large industrial complexes, AC contactors can be programmed to shed non-essential loads during peak demand periods, helping to reduce overall energy consumption and associated costs. In smart building systems, these devices facilitate the automatic control of lighting and HVAC systems based on occupancy or time schedules, optimizing energy usage. The ability of AC contactors to handle frequent switching operations without degradation makes them ideal for applications requiring dynamic load management, such as in renewable energy systems where power flow needs to be adjusted based on generation and demand fluctuations.

Safety and Reliability Benefits

Safety is paramount in electrical systems, and AC contactors significantly contribute to creating safer working environments. By allowing remote control of high-power circuits, they reduce the need for direct human interaction with live electrical equipment. This remote operation capability is particularly valuable in hazardous environments or areas with limited accessibility. Moreover, AC contactors can be integrated with various safety systems, such as emergency stop circuits, ensuring rapid power disconnection in case of accidents or equipment malfunctions. The robust construction and reliable operation of AC contactors also enhance overall system dependability. Their ability to withstand high inrush currents and provide consistent performance over numerous switching cycles makes them a trustworthy component in critical applications where downtime must be minimized.

Selection Criteria and Maintenance of AC Contactors

Key Factors in Choosing the Right AC Contactor

Selecting the appropriate AC contactor for a specific application requires careful consideration of several factors. The rated operational voltage and current are primary considerations, as the contactor must be capable of handling the system's power requirements without overheating or premature failure. The utilization category, which defines the contactor's suitability for different types of loads (e.g., resistive, inductive, or capacitive), is another crucial factor. Environmental conditions, such as ambient temperature, humidity, and potential exposure to dust or corrosive substances, also play a role in contactor selection. Additionally, the expected frequency of operations and the desired lifespan should be taken into account. Some applications may require contactors with special features like auxiliary contacts for status monitoring or integrated overload protection. Consulting manufacturer specifications and seeking expert advice can help ensure the selection of an AC contactor that meets both current needs and future expansion possibilities.

Installation Best Practices

Proper installation of AC contactors is essential for their optimal performance and longevity. The mounting location should provide adequate ventilation to dissipate heat generated during operation. Contactors should be installed vertically to ensure proper functioning of gravity-dependent components like arc chutes. Careful attention must be paid to the tightening of electrical connections, as loose connections can lead to overheating and potential failure. The use of properly sized conductors and the implementation of appropriate short-circuit protection devices are crucial for safe operation. In applications where vibration is a concern, shock-absorbing mounts may be necessary to prevent mechanical stress on the contactor. Proper routing of control and power wiring, with separation between low-voltage and high-voltage circuits, helps minimize electromagnetic interference and enhances overall system reliability.

Maintenance and Troubleshooting Guidelines

Regular maintenance is key to ensuring the long-term reliability of AC contactors. Periodic visual inspections can help identify signs of wear, such as contact erosion or coil discoloration. Cleaning of the contactor, particularly in dusty environments, prevents the accumulation of debris that could interfere with proper operation. Checking the tightness of electrical connections and mechanical fasteners should be part of routine maintenance procedures. For contactors in critical applications, more advanced diagnostic techniques like thermal imaging or contact resistance measurement may be employed to detect potential issues before they lead to failure. When troubleshooting AC contactor problems, common issues to look for include coil failure, contact welding, or mechanical binding. Proper documentation of maintenance activities and operating history can be invaluable in identifying trends and predicting potential failures before they occur.

Conclusion

AC contactors are indispensable components in modern electrical systems, offering reliable control of high-power circuits across various applications. Their simple yet effective operating principle, combined with robust construction and advanced features like arc suppression, makes them a cornerstone of industrial automation and power distribution. By enabling remote switching, enhancing safety, and contributing to energy efficiency, AC contactors play a crucial role in optimizing electrical systems. As technology advances, we can expect to see further innovations in AC contactor design, potentially incorporating smart diagnostics and improved energy management capabilities, further cementing their importance in the evolving landscape of electrical engineering and industrial automation.
