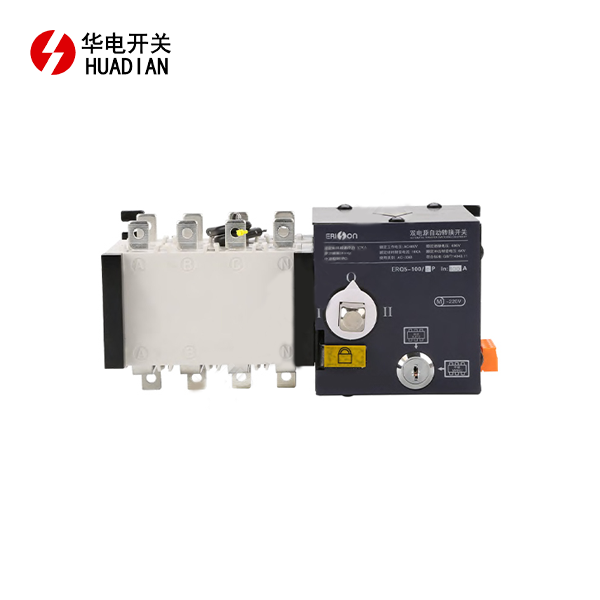

What is dual power automatic transfer switch?

A dual power automatic transfer switch (ATS) is a critical electrical device designed to seamlessly switch between two power sources, typically a primary and a backup power supply. This sophisticated equipment continuously monitors the availability and quality of the main power source. In the event of a power outage or significant voltage fluctuation, the ATS automatically transfers the electrical load to the secondary power source, ensuring uninterrupted power supply to essential equipment or facilities. Dual power ATSs are indispensable in various settings, including data centers, hospitals, industrial facilities, and commercial buildings, where maintaining a constant power supply is crucial for operations, safety, and preventing costly downtimes.

Components and Functionality of Dual Power Automatic Transfer Switches

Key Components of an ATS

Dual power automatic transfer switches comprise several essential components that work in harmony to ensure reliable power switching. The main contactor or transfer mechanism is the heart of the ATS, responsible for physically connecting and disconnecting power sources. Microprocessors or programmable logic controllers (PLCs) serve as the brain, continuously monitoring power quality and making split-second decisions. Voltage sensors vigilantly detect any fluctuations or failures in the primary power source, while time delay relays prevent unnecessary switching due to momentary power disturbances. Additionally, bypass switches allow for manual operation during maintenance, ensuring system flexibility and redundancy.

Operating Principles

The operating principles of a dual power ATS are both sophisticated and elegant in their simplicity. When the primary power source is functioning normally, the ATS maintains the connection to this source. However, if the voltage drops below a preset threshold or fails entirely, the ATS initiates a rapid sequence of events. It first opens the circuit to the primary source, then closes the circuit to the secondary source, all within a fraction of a second. This seamless transition is crucial for sensitive equipment that cannot tolerate even brief power interruptions. Once the primary power source is restored and stabilized, the ATS reverses the process, switching back to the main supply after a predefined delay to ensure stability.

Types of Automatic Transfer Switches

Dual power automatic transfer switches come in various configurations to suit different applications and requirements. Open transition switches, also known as "break-before-make," completely disconnect from one source before connecting to another, minimizing the risk of backfeeding but potentially causing a brief power interruption. Closed transition switches, or "make-before-break" types, momentarily connect both sources during the transfer, ensuring truly uninterrupted power but requiring more sophisticated synchronization mechanisms. Delayed transition switches introduce a deliberate pause between disconnecting one source and connecting another, allowing residual voltage to dissipate and preventing potential damage to motor-driven loads. Soft loading transfer switches gradually shift the load between sources, reducing stress on the electrical system and connected equipment.

Benefits and Applications of Dual Power Automatic Transfer Switches

Ensuring Continuous Power Supply

The primary benefit of dual power automatic transfer switches lies in their ability to ensure a continuous, uninterrupted power supply. This capability is paramount in critical environments where even momentary power loss can have severe consequences. In healthcare facilities, for instance, ATSs safeguard life-support systems and crucial medical equipment. Data centers rely on these devices to maintain server uptime and protect against data loss. Industrial processes that require precise control and timing benefit from the seamless power transition, preventing production disruptions and potential safety hazards. By automatically managing power source switching, ATSs eliminate the need for manual intervention, reducing response times and minimizing human error in high-stress situations.

Protecting Sensitive Equipment

Modern electrical and electronic equipment often have low tolerance for power fluctuations and interruptions. Dual power automatic transfer switches play a crucial role in protecting these sensitive devices from damage and malfunction. By continuously monitoring power quality and swiftly switching to a stable alternative source when needed, ATSs shield equipment from voltage sags, surges, and complete outages. This protection extends the lifespan of expensive machinery and prevents costly repairs or replacements. In research facilities, where experiments may run for extended periods, ATSs ensure that valuable data is not compromised due to power issues. Financial institutions use ATSs to maintain the integrity of transactions and prevent data corruption in their systems.

Enhancing System Reliability and Redundancy

Dual power automatic transfer switches significantly enhance overall system reliability and redundancy in electrical installations. By providing a rapid, automatic switch between power sources, they create a robust backup system that can withstand various power-related challenges. This redundancy is particularly valuable in mission-critical applications where downtime is not an option. For instance, in telecommunications infrastructure, ATSs ensure that communication networks remain operational even during power grid failures. In emergency response centers, these switches guarantee that vital communication and coordination systems stay online during crises. The ability to seamlessly transition between power sources also allows for scheduled maintenance on one source without disrupting operations, further improving system reliability and uptime.

Selecting and Implementing Dual Power Automatic Transfer Switches

Factors to Consider in ATS Selection

Selecting the appropriate dual power automatic transfer switch requires careful consideration of several factors. The amperage rating of the ATS must match or exceed the maximum load current of the system it's protecting. The voltage rating should align with the electrical system's requirements. Transfer time is crucial, especially for sensitive loads, and can range from a few milliseconds to several seconds depending on the ATS type. Environmental factors such as temperature, humidity, and potential exposure to contaminants should influence the choice of enclosure and components. The number and type of poles (e.g., three-pole for three-phase systems) must be compatible with the electrical configuration. Additionally, consider the control system's sophistication, with options ranging from simple electromechanical controllers to advanced microprocessor-based systems with extensive monitoring and communication capabilities.

Installation and Integration Considerations

Proper installation and integration of dual power automatic transfer switches are paramount for optimal performance and safety. The ATS should be installed by qualified electricians familiar with local electrical codes and standards. Proper sizing of conductors and circuit protection devices is essential to ensure the ATS can handle the full load current without overheating. Careful attention must be paid to grounding and bonding to prevent electrical hazards and ensure proper operation. When integrating the ATS into an existing electrical system, consider the impact on other components and potential need for upgrades. The location of the ATS should allow for easy access for maintenance while protecting it from environmental hazards. For critical applications, redundant ATSs may be installed to provide an additional layer of reliability.

Maintenance and Testing Protocols

Regular maintenance and testing are crucial to ensure the continued reliability of dual power automatic transfer switches. A comprehensive maintenance program should include visual inspections for signs of wear, damage, or overheating. Electrical connections should be checked and tightened periodically to prevent loose connections that can lead to arcing or increased resistance. Functional tests, simulating power failures, should be conducted regularly to verify proper operation of the ATS and identify any issues before they become critical. These tests should include verification of transfer times, proper sequencing, and correct operation of any associated generators or other backup power sources. Advanced ATSs often include self-diagnostic features and event logging capabilities, which can assist in predictive maintenance and troubleshooting. Adhering to manufacturer-recommended maintenance schedules and procedures is essential for maintaining warranty coverage and ensuring long-term reliability.

Conclusion

Dual power automatic transfer switches are indispensable components in modern electrical systems, providing seamless power transitions and ensuring continuity in critical operations. Their ability to automatically switch between power sources not only protects sensitive equipment but also enhances overall system reliability and redundancy. As technology advances, ATSs continue to evolve, offering improved performance, faster transfer times, and more sophisticated monitoring capabilities. For businesses and institutions where uninterrupted power is crucial, investing in high-quality dual power ATSs is not just a precaution - it's a necessity for maintaining operations, safeguarding assets, and ensuring peace of mind in an increasingly power-dependent world.
