What is A1 and A2 on a AC contactor?

A1 and A2 on an AC contactor are the coil terminals that energize the contactor's electromagnetic coil. A1 is typically the positive terminal, while A2 is the negative terminal. When voltage is applied across these terminals, it creates a magnetic field that pulls the contactor's moving contacts closed, allowing current to flow through the main power circuit. This mechanism enables the AC contactor to control high-power electrical circuits using a lower-power control signal. Understanding the function of A1 and A2 is crucial for proper installation and operation of AC contactors in various electrical systems.

Understanding AC Contactors

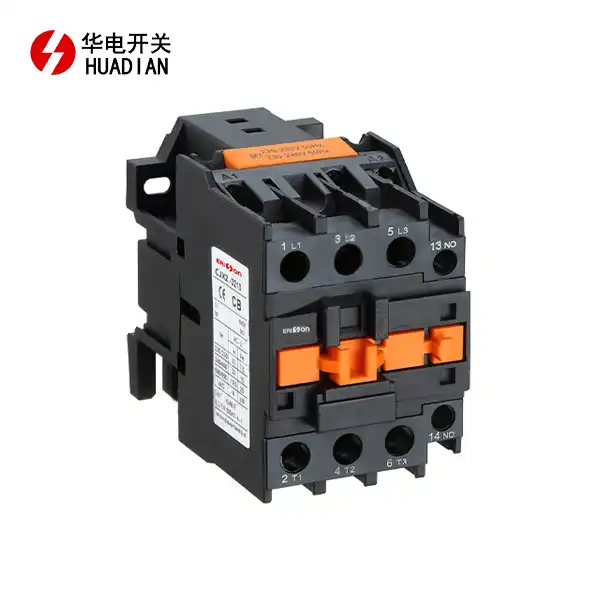

What is an AC Contactor?

An AC contactor is an electrically controlled switch used in power control circuits. It's designed to handle high current loads and is commonly found in industrial and commercial applications. AC contactors are essential components in motor starters, lighting systems, and other electrical equipment that require remote switching of large electrical loads.

Components of an AC Contactor

AC contactors consist of several key components:

- Electromagnetic coil: The heart of the contactor, responsible for generating the magnetic field

- Movable contacts: These close or open the main circuit

- Fixed contacts: Stationary contacts that mate with the movable contacts

- Spring mechanism: Ensures rapid opening of contacts when power is removed

- Auxiliary contacts: Used for control and monitoring purposes

Understanding these components is crucial for proper maintenance and troubleshooting of AC contactors.

Operating Principle of AC Contactors

The operation of an AC contactor is based on electromagnetic principles. When the coil is energized, it creates a magnetic field that attracts the movable armature. This action closes the main contacts, allowing current to flow through the power circuit. When the coil is de-energized, the spring mechanism quickly opens the contacts, interrupting the current flow. This simple yet effective mechanism allows for remote control of high-power circuits.

The Role of A1 and A2 Terminals

Function of A1 and A2

A1 and A2 terminals serve as the association focuses for the control voltage that energizes the contactor's coil. A1 is regularly stamped as the positive terminal, whereas A2 is the negative terminal. When the fitting voltage is connected over these terminals, it makes the attractive field fundamental to work the contactor. The voltage connected to A1 and A2 is more often than not lower than the voltage controlled by the primary contacts, permitting for more secure and more productive control of high-power circuits.

Importance in Circuit Design

The A1 and A2 terminals play a crucial role in circuit design:

- Control circuit integration: They allow the contactor to be easily integrated into control circuits

- Safety: By separating the control circuit from the main power circuit, they enhance overall system safety

- Flexibility: Different control voltages can be used to suit various applications

- Remote operation: Enable remote activation and deactivation of the contactor

Proper understanding and utilization of A1 and A2 terminals are essential for designing efficient and safe electrical systems.

Common Voltage Ratings

AC contactors are available with various coil voltage ratings to suit different applications. Common voltage ratings for A1 and A2 terminals include:

- 24V AC/DC

- 110V AC

- 220V AC

- 380V AC

The choice of voltage depends on the specific requirements of the control system and the available power supply. It's crucial to match the coil voltage with the control circuit voltage to ensure proper operation and prevent damage to the contactor.

Installation and Maintenance Considerations

Proper Wiring Techniques

Correct wiring of A1 and A2 terminals is crucial for the safe and efficient operation of AC contactors:

- Always follow manufacturer's guidelines and electrical codes

- Ensure proper wire gauge selection based on current requirements

- Use appropriate termination methods to prevent loose connections

- Implement proper insulation and protection measures

- Double-check polarity to prevent reverse connection

Proper wiring not only ensures optimal performance but also extends the lifespan of the AC contactor and enhances overall system reliability.

Troubleshooting Common Issues

When encountering problems with AC contactors, consider these potential issues related to A1 and A2 terminals:

- Coil failure: Check for proper voltage across A1 and A2

- Loose connections: Inspect terminal connections for tightness

- Incorrect voltage: Verify that the applied voltage matches the coil rating

- Control circuit faults: Examine the control circuit for any discontinuities

- Mechanical issues: Look for any physical obstructions preventing contactor operation

Regular maintenance and prompt troubleshooting can prevent downtime and extend the life of the AC contactor.

Safety Precautions

When working with AC contactors, always prioritize safety:

- De-energize all circuits before performing any work

- Use appropriate personal protective equipment (PPE)

- Verify the absence of voltage with a reliable meter before touching any terminals

- Follow lockout/tagout procedures to prevent accidental energization

- Be aware of residual magnetic fields that may cause unexpected movement

- Never bypass safety interlocks or protective devices

Adhering to these safety precautions is essential to prevent accidents and ensure a safe working environment.

Conclusion

Understanding the function and importance of A1 and A2 terminals on AC contactors is crucial for anyone working with electrical systems. These terminals serve as the gateway for controlling high-power circuits through low-power signals, making them an indispensable component in industrial and commercial applications. Proper installation, maintenance, and troubleshooting of these terminals ensure the efficient and safe operation of AC contactors. By grasping the concepts discussed in this article, you'll be better equipped to design, install, and maintain electrical systems that rely on AC contactors.
