What is a Power Cable? A Comprehensive Guide to Types and Uses

A power cable is an essential electrical component designed to transmit electrical energy from a power source to various devices and equipment. These cables consist of one or more electrical conductors, typically made of copper or aluminum, encased in a protective insulation and sheathing. Power cables are crucial in residential, commercial, and industrial applications, enabling the safe and efficient distribution of electricity. They come in various types, sizes, and configurations to accommodate different voltage requirements, environmental conditions, and specific use cases. Understanding the characteristics and applications of power cables is vital for ensuring proper electrical installations, maintaining safety standards, and optimizing energy transmission in diverse settings.

Types of Power Cables

Low Voltage Power Cables

Low voltage power cables are designed for applications requiring voltages up to 1000V. These cables are commonly used in residential and commercial buildings for general wiring purposes. They typically feature copper or aluminum conductors with PVC or XLPE insulation. Low voltage cables come in various configurations, including single-core and multi-core options, to suit different installation requirements.

Medium Voltage Power Cables

Medium voltage power cables are engineered for voltages ranging from 1kV to 33kV. These cables are primarily used in power distribution networks, industrial facilities, and renewable energy installations. They often incorporate advanced insulation materials such as XLPE or EPR to withstand higher voltage stresses. Medium voltage cables may also include additional protective layers, such as metallic screens or armor, to enhance durability and electrical performance.

High Voltage Power Cables

High voltage power cables are specialized conductors designed for voltages exceeding 33kV. These cables play a critical role in power transmission over long distances and in high-capacity electrical systems. High voltage cables feature sophisticated insulation systems, often utilizing oil-impregnated paper or advanced polymeric materials. They may also incorporate unique design elements like fluid-filled cores or gas-pressurized insulation to maintain optimal performance under extreme electrical stresses.

Power Cable Construction and Components

Conductor Materials and Designs

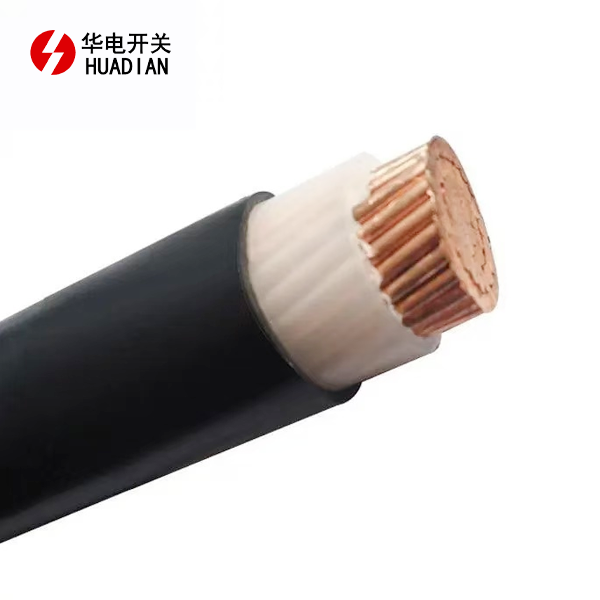

The conductor is the core component of a power cable, responsible for carrying electrical current. Copper and aluminum are the most common conductor materials, each offering distinct advantages. Copper conductors provide excellent conductivity and corrosion resistance but are more expensive. Aluminum conductors are lighter and more cost-effective but require larger cross-sectional areas to achieve equivalent current-carrying capacity. Conductors may be solid or stranded, with stranded designs offering greater flexibility and improved current distribution.

Insulation Types and Properties

Insulation is crucial for preventing electrical leakage and protecting the conductor from external factors. Common insulation materials include PVC (polyvinyl chloride), XLPE (cross-linked polyethylene), and EPR (ethylene propylene rubber). Each material offers unique properties in terms of temperature resistance, dielectric strength, and environmental performance. PVC is cost-effective and widely used in low voltage applications, while XLPE and EPR are preferred for medium and high voltage cables due to their superior electrical and thermal characteristics.

Sheathing and Protective Layers

The outer layers of a power cable provide mechanical protection, moisture resistance, and additional electrical shielding. Sheathing materials may include PVC, PE (polyethylene), or specialized compounds for specific environmental conditions. Some power cables incorporate metallic armor or braided screens to enhance mechanical strength and provide electromagnetic shielding. For applications requiring fire resistance, special flame-retardant and low-smoke zero halogen (LSZH) sheathing materials are employed to improve safety in critical installations.

Applications and Uses of Power Cables

Residential and Commercial Wiring

In residential and commercial settings, power cables are integral to electrical systems, providing connections for lighting, appliances, and various electrical devices. These installations typically utilize low voltage cables, such as NYM or NM-B types, which are designed for indoor use and comply with local building codes. Proper selection and installation of power cables in these environments are essential for ensuring electrical safety, preventing overheating, and maintaining reliable power distribution throughout the structure.

Industrial and Manufacturing Facilities

Industrial applications demand robust power cables capable of withstanding harsh environments and high electrical loads. These settings often require a mix of low and medium voltage cables to support diverse equipment and machinery. Armored cables, such as ACWU or MC types, are commonly used in industrial settings to provide enhanced protection against mechanical damage and chemical exposure. Specialized power cables with features like oil resistance or high flexibility may be employed for specific industrial processes or mobile equipment.

Utility and Infrastructure Projects

Power cables play a critical role in utility-scale energy transmission and distribution networks. High voltage underground and submarine cables are used for long-distance power transmission, connecting generating stations to substations and urban centers. Medium voltage cables are employed in local distribution grids, providing power to neighborhoods and commercial districts. In infrastructure projects, such as airports, railways, and telecommunications networks, specialized power cables are utilized to meet unique operational requirements and safety standards.

Conclusion

Power cables are indispensable components of modern electrical systems, enabling the safe and efficient transmission of energy across various applications. From residential wiring to industrial installations and large-scale infrastructure projects, the diverse range of power cable types and designs ensures optimal performance in different environments and voltage requirements. As technology advances and energy demands evolve, the development of innovative power cable solutions continues to play a crucial role in shaping the future of electrical distribution and supporting sustainable energy practices.
