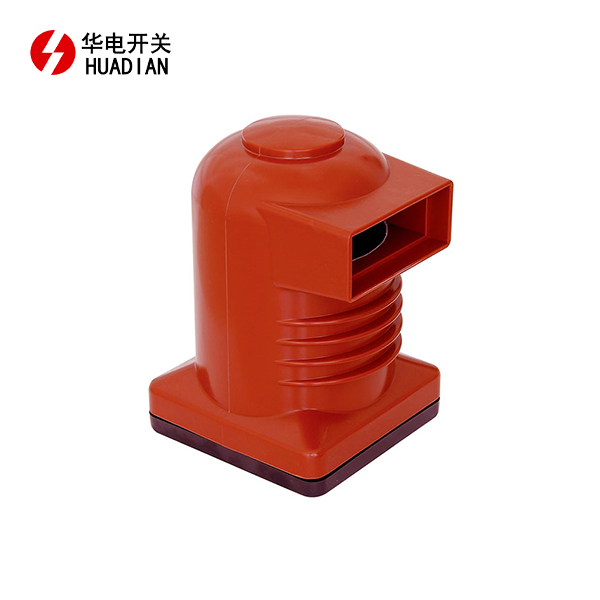

What are the technical specifications of a 12~40.5kV Contact Box series?

The technical specifications of a 12~40.5kV contact box series encompass a range of crucial parameters essential for high-voltage electrical systems. These contact boxes are designed to operate within voltage ranges of 12 to 40.5 kV, offering robust insulation and reliable performance. Key specifications include rated voltage, rated current, short-circuit breaking capacity, and mechanical endurance. The contact boxes typically feature advanced arc-extinguishing technologies, ensuring swift and efficient interruption of electrical currents. Materials used in construction often include high-grade insulators and conductive components to withstand extreme electrical and thermal stresses. Understanding these specifications is vital for selecting the appropriate contact box for specific applications in power distribution and industrial systems.

Understanding the Core Components of 12~40.5kV Contact Box Series

Insulation Materials and Their Properties

The insulation materials used in 12~40.5kV contact box series play a pivotal role in their performance and reliability. High-quality epoxy resin or advanced polymer composites are often employed to provide excellent dielectric strength and thermal stability. These materials must withstand high voltages and prevent electrical breakdown under various environmental conditions. The insulation design typically incorporates strategically placed air gaps and creepage distances to enhance the overall insulation effectiveness.

Modern contact boxes may also utilize vacuum-based insulation technology, which offers superior arc-quenching capabilities compared to traditional air or oil-based insulation. This vacuum insulation significantly reduces the size of the contact box while improving its interrupting performance. The choice of insulation material and design directly impacts the contact box's ability to maintain its integrity during normal operation and fault conditions.

Contact Mechanisms and Their Functionality

The heart of a 12~40.5kV contact box series lies in its contact mechanism. This system typically consists of main contacts and arcing contacts, each serving a specific purpose. The main contacts are responsible for carrying the rated current during normal operation, while the arcing contacts handle the intense heat and erosion associated with current interruption during fault conditions.

Advanced contact designs may incorporate silver-tungsten alloys or other specialized materials to enhance durability and conductivity. The contact mechanism is engineered to provide rapid separation and precise alignment, crucial for efficient current interruption and minimal wear. Some high-performance contact boxes feature a tulip-shaped contact design, which ensures optimal pressure distribution and reduces contact resistance.

Arc Extinguishing Systems and Their Efficiency

Arc extinguishing systems are critical components in 12~40.5kV contact box series, responsible for quickly and safely interrupting high-voltage currents. These systems often employ sophisticated techniques such as magnetic arc control or axial magnetic field technology. By manipulating the arc's movement and shape, these systems can effectively dissipate the arc energy and prevent restrikes.

In vacuum interrupters, the arc is extinguished at the first current zero, thanks to the rapid recovery of dielectric strength in the vacuum. For gas-insulated contact boxes, SF6 (sulfur hexafluoride) or more environmentally friendly alternatives like dry air or nitrogen may be used. These gases possess excellent arc-quenching properties, contributing to the compact design and high performance of modern contact boxes.

Performance Metrics of 12~40.5kV Contact Box Series

Rated Voltage and Current Capacity

The rated voltage of a 12~40.5kV contact box series is a fundamental parameter that defines its operational range. These contact boxes are designed to function reliably within this voltage spectrum, catering to various medium-voltage applications. The specific voltage rating within this range is selected based on the intended application, such as 12kV for some industrial systems or 33kV for certain power distribution networks.

Current capacity is another crucial metric, indicating the maximum continuous current the contact box can safely conduct. This rating typically ranges from hundreds to thousands of amperes, depending on the specific model and application requirements. The current capacity is influenced by factors such as contact material, cooling system efficiency, and overall design optimization. High-performance contact boxes in this series may offer current ratings exceeding 3000A, suitable for high-power industrial applications or substations.

Short-Circuit Breaking Capacity and Interrupting Time

Short-circuit breaking capacity is a critical performance indicator for 12~40.5kV contact box series. It represents the maximum fault current that the device can safely interrupt without damage. This capacity is typically expressed in kA (kiloamperes) and can range from 20kA to 50kA or higher for heavy-duty models. The short-circuit breaking capacity is closely tied to the contact box's arc-extinguishing capabilities and overall structural integrity.

Interrupting time, measured in cycles or milliseconds, is equally important. It refers to the duration between the initiation of a trip signal and the complete interruption of current flow. Advanced 12~40.5kV contact boxes can achieve interrupting times as low as 2-3 cycles (40-60 milliseconds at 50Hz), ensuring rapid fault clearance and minimizing potential damage to connected equipment. The combination of high breaking capacity and fast interrupting time is essential for maintaining power system stability and protection.

Mechanical and Electrical Endurance

Mechanical endurance is a measure of a contact box's ability to withstand repeated operations without failure or significant wear. For 12~40.5kV contact box series, this is typically expressed as the number of close-open operations the device can perform under no-load conditions. High-quality contact boxes in this range may offer mechanical endurance ratings of 10,000 operations or more, ensuring long-term reliability in frequently switched applications.

Electrical endurance, on the other hand, refers to the number of operations the contact box can perform while interrupting rated current or fault current. This metric is crucial for assessing the device's long-term performance under actual operating conditions. Advanced 12~40.5kV contact boxes may feature electrical endurance ratings of several thousand operations at rated current, with reduced ratings for fault current interruptions. The balance between mechanical and electrical endurance is key to ensuring the overall longevity and reliability of the contact box in diverse operational scenarios.

Environmental and Safety Considerations for 12~40.5kV Contact Box Series

Temperature and Humidity Tolerances

The 12~40.5kV contact box series must operate reliably across a wide range of environmental conditions. Temperature tolerance is a critical factor, with most high-quality contact boxes designed to function effectively in ambient temperatures ranging from -40°C to +55°C. This wide temperature range ensures operational stability in various climates, from arctic to tropical environments. Some specialized models may offer even broader temperature tolerances for extreme conditions.

Humidity tolerance is equally important, particularly in coastal or high-moisture environments. Contact boxes in this voltage range are typically designed to withstand relative humidity levels up to 95% without condensation. Advanced sealing techniques and moisture-resistant materials are employed to prevent ingress of moisture, which could compromise the insulation properties or lead to corrosion of internal components. Some manufacturers also offer tropicalized versions of their contact boxes, specifically designed for high-humidity environments.

Electromagnetic Compatibility and Shielding

Electromagnetic compatibility (EMC) is a crucial consideration in the design of 12~40.5kV contact box series. These devices must operate without causing electromagnetic interference to nearby equipment and must also be resistant to external electromagnetic disturbances. Rigorous EMC testing ensures compliance with international standards such as IEC 61000.

Shielding techniques play a vital role in achieving EMC. This may include the use of metallic enclosures, specialized coatings, and strategic component placement to minimize electromagnetic emissions. Advanced contact boxes may incorporate innovative shielding solutions, such as composite materials with electromagnetic absorption properties, to enhance their EMC performance. Proper grounding and bonding practices are also essential in mitigating electromagnetic issues and ensuring safe operation in complex electrical environments.

Safety Features and Compliance Standards

Safety is paramount in the design and operation of 12~40.5kV contact box series. These devices incorporate multiple safety features to protect both equipment and personnel. Interlocking mechanisms prevent access to live parts and ensure that the contact box cannot be operated when in an unsafe condition. Visible disconnection indicators provide clear visual confirmation of the contact position, reducing the risk of accidental contact with energized components.

Compliance with international safety standards is mandatory for 12~40.5kV contact boxes. These typically include IEC 62271 for high-voltage switchgear and controlgear, as well as regional standards such as ANSI/IEEE C37 in North America. Adherence to these standards ensures that the contact boxes meet stringent requirements for dielectric strength, temperature rise, short-circuit performance, and mechanical operation. Many manufacturers also pursue additional certifications, such as seismic qualification, to meet specific application needs and regulatory requirements in different markets.

Conclusion

The technical specifications of 12~40.5kV contact box series encompass a complex array of parameters crucial for reliable and efficient operation in medium-voltage electrical systems. From robust insulation materials and advanced contact mechanisms to sophisticated arc-extinguishing systems, these components work in harmony to ensure safe current interruption and long-term reliability. The performance metrics, including voltage and current ratings, breaking capacity, and endurance, define the operational boundaries of these critical devices. Environmental adaptability and stringent safety features further underscore their versatility and dependability across diverse applications. As power distribution networks evolve, the ongoing advancement in contact box technology continues to push the boundaries of efficiency, reliability, and safety in electrical systems.

Contact Us

Are you looking for high-quality 12~40.5kV contact boxes that meet your specific requirements? Shaanxi Huadian Electric Co., Ltd. offers a comprehensive range of circuit breakers and contact boxes designed to excel in demanding electrical environments. For more information about our products or to discuss your unique needs, please contact us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com. Our team of experts is ready to assist you in finding the perfect solution for your electrical system.
