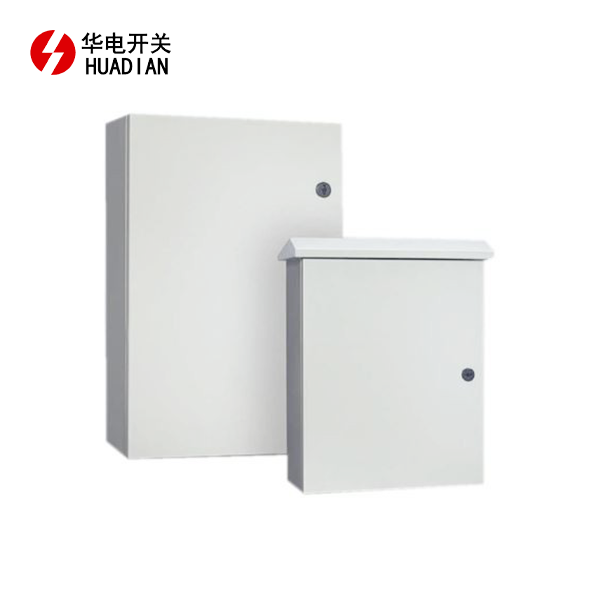

What are the Specifications of a JXF (JFF) Control Box?

The JXF (JFF) control box is a crucial component in electrical systems, designed to house and protect various control and monitoring devices. These boxes are typically crafted from high-quality steel or stainless steel, offering robust protection against environmental factors. The specifications of a JXF (JFF) control box include dimensions ranging from 300x200x150mm to 1000x800x300mm, IP ratings of IP55 or IP65 for dust and water resistance, and a temperature range of -25°C to +40°C. These control boxes are equipped with mounting plates, door locks, and gland plates for cable entry, making them versatile for diverse industrial applications.

Key Features and Components of JXF (JFF) Control Boxes

Material Composition and Durability

JXF (JFF) control boxes are engineered with durability in mind. The primary material used in their construction is cold-rolled steel, which undergoes a rigorous galvanization process to enhance corrosion resistance. This treatment ensures the control box can withstand harsh industrial environments, including exposure to chemicals, moisture, and extreme temperatures. For more demanding applications, stainless steel variants are available, offering superior resistance to corrosion and oxidation.

Sealing and Protection Mechanisms

One of the standout features of JXF (JFF) control boxes is their exceptional sealing capabilities. These boxes are equipped with high-quality rubber gaskets that create a tight seal between the door and the main body. This design prevents the ingress of dust, water, and other contaminants, maintaining the integrity of the internal components. The IP55 or IP65 rating of these control boxes is a testament to their ability to protect against solid particles and water jets from any direction.

Customization Options and Accessories

JXF (JFF) control boxes offer a range of customization options to meet specific industrial needs. These include various sizes to accommodate different quantities of control equipment, multiple door configurations for easy access, and different mounting options such as wall-mounting or floor-standing designs. Additional accessories like viewing windows, internal lighting, and ventilation systems can be integrated to enhance functionality. The ability to customize these control boxes makes them suitable for a wide array of applications across various industries.

Applications and Industries for JXF (JFF) Control Boxes

Manufacturing and Industrial Automation

In the manufacturing sector, JXF (JFF) control boxes play a pivotal role in housing automation equipment. They are commonly used to protect programmable logic controllers (PLCs), human-machine interfaces (HMIs), and other critical control components. The robust construction of these boxes ensures that sensitive electronic equipment remains protected from dust, debris, and accidental impacts common in factory environments. This protection is crucial for maintaining the reliability and longevity of automation systems, thereby reducing downtime and maintenance costs.

Power Distribution and Electrical Systems

JXF (JFF) control boxes are extensively used in power distribution applications. They serve as enclosures for circuit breakers, contactors, relays, and other electrical switching devices. The superior sealing properties of these boxes make them ideal for outdoor installations, such as in substations or on utility poles. By protecting electrical components from environmental factors like rain, snow, and UV radiation, JXF (JFF) control boxes contribute significantly to the safety and reliability of power distribution networks.

Telecommunications and Data Centers

In the rapidly evolving world of telecommunications and data centers, JXF (JFF) control boxes find essential applications. They are used to house network switches, routers, and fiber optic termination points. The control boxes' ability to maintain a controlled internal environment is crucial for the optimal performance of sensitive networking equipment. Moreover, the customizable nature of these boxes allows for the integration of cooling systems and cable management solutions, which are vital in high-density data environments.

Installation and Maintenance Considerations for JXF (JFF) Control Boxes

Proper Mounting Techniques

The installation of JXF (JFF) control boxes requires careful consideration of mounting techniques to ensure stability and accessibility. Wall-mounted boxes should be securely fastened using appropriate anchors and bolts, taking into account the weight of the box and its contents. For floor-standing models, it's essential to use a level surface and consider anti-vibration mounts if the environment is prone to mechanical disturbances. Proper mounting not only ensures the safety of the equipment but also facilitates easy access for maintenance and upgrades.

Cable Entry and Management

Effective cable management is crucial for the optimal performance and longevity of the electrical systems housed within JXF (JFF) control boxes. These boxes are designed with cable glands or knockouts that allow for neat and organized cable entry. It's important to use the appropriate size and type of cable glands to maintain the box's IP rating. Inside the box, cables should be neatly routed and secured using cable ties or dedicated cable management systems. This not only improves the aesthetics but also prevents strain on connections and facilitates easier troubleshooting and maintenance.

Regular Inspection and Maintenance Protocols

To ensure the longevity and effectiveness of JXF (JFF) control boxes, regular inspection and maintenance are essential. This includes checking the integrity of seals and gaskets, inspecting for any signs of corrosion or damage, and ensuring that all fasteners remain tight. The internal components should be kept clean and free from dust accumulation, which can be achieved through periodic cleaning with appropriate methods such as compressed air or anti-static cloths. Additionally, it's important to verify that any ventilation systems or filters are functioning correctly to maintain the optimal internal environment for the electrical equipment.

Conclusion

JXF (JFF) control boxes are indispensable components in modern electrical and industrial systems. Their robust construction, versatile customization options, and high protection ratings make them suitable for a wide range of applications across various industries. By providing a secure and controlled environment for sensitive electrical equipment, these control boxes play a crucial role in ensuring the reliability, safety, and efficiency of industrial operations. As technology continues to advance, the importance of well-designed and properly maintained control boxes like the JXF (JFF) series will only grow, making them a vital consideration for any industrial or electrical project.
