What are the signs of a bad AC contactor?

A faulty AC contactor can manifest through several telltale signs. These include unusual noises such as buzzing or chattering, visible physical damage like pitting or welding of contacts, failure to engage or disengage properly, and inconsistent operation of the connected equipment. Additionally, overheating, indicated by discoloration or a burning smell, can signal a deteriorating contactor. Electrical issues like voltage fluctuations or equipment not receiving power when the contactor is engaged are also common indicators. Regular inspection and prompt attention to these signs can prevent more serious electrical problems and ensure the efficient operation of your HVAC or other AC-powered systems.

Understanding AC Contactors and Their Function

What is an AC Contactor?

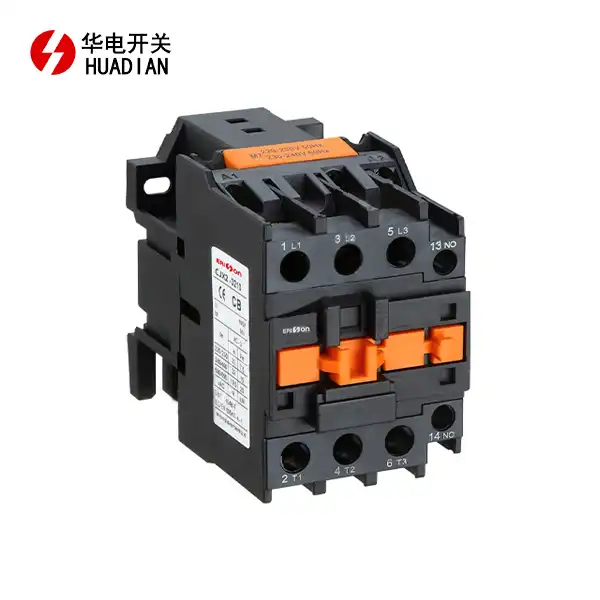

An AC contactor is a crucial electrical component designed to control the flow of electricity in alternating current (AC) circuits. It acts as a switch, allowing or interrupting the power supply to various electrical devices and systems. AC contactors are commonly used in HVAC systems, industrial machinery, and other applications where high-power electrical loads need to be managed efficiently and safely.

How AC Contactors Work?

The operation of an AC contactor is based on electromagnetic principles. When the control circuit is energized, it creates a magnetic field that pulls the moving contacts towards the fixed contacts, completing the circuit and allowing current to flow. When the control circuit is de-energized, a spring mechanism pushes the contacts apart, breaking the circuit and stopping the flow of electricity. This simple yet effective mechanism allows for remote control of high-power electrical systems.

Importance of AC Contactors in Electrical Systems

AC contactors play a vital role in ensuring the safe and efficient operation of electrical systems. They provide a means to control high-power loads remotely, protect equipment from overloads, and enable automated control of electrical devices. In HVAC systems, for example, AC contactors control the operation of compressors, fans, and other components, allowing for precise temperature regulation. Their reliability and durability make them indispensable in various industrial and commercial applications.

Common Signs of a Failing AC Contactor

Audible Symptoms

One of the most noticeable signs of a failing AC contactor is unusual noise. A properly functioning contactor should operate quietly, with only a soft click when engaging or disengaging. If you hear persistent buzzing, humming, or chattering sounds coming from the contactor, it may indicate that the contacts are not closing properly or that the magnetic coil is weakening. These audible symptoms often precede more serious issues and should be addressed promptly to prevent further damage.

Visual Indicators

Visual inspection can reveal several signs of a deteriorating AC contactor. Look for signs of physical damage such as pitting, erosion, or welding of the contacts. These issues can result from arcing or overheating and can significantly impair the contactor's performance. Additionally, discoloration of the contactor housing or surrounding components may indicate overheating. In severe cases, you might observe melted plastic parts or burnt insulation, which are clear indicators that the contactor needs immediate replacement.

Operational Issues

Operational problems are often the most critical signs of a failing AC contactor. These can manifest as equipment failing to start or stop when commanded, intermittent operation, or complete system failure. You might notice that the connected equipment operates erratically or doesn't receive power consistently. In HVAC systems, this could result in the air conditioning unit not turning on or off as expected. These operational issues not only affect the performance of your equipment but can also lead to increased energy consumption and potential safety hazards.

Diagnosing and Addressing AC Contactor Problems

Testing AC Contactors

Proper diagnosis of AC contactor issues requires careful testing. Start by visually inspecting the contactor for signs of wear or damage. Use a multimeter to check for continuity across the contacts when the contactor is engaged and disengaged. Measure the coil resistance to ensure it falls within the manufacturer's specifications. If possible, use a thermal imaging camera to detect any hotspots that might indicate excessive resistance or poor connections. Remember to always follow safety procedures and disconnect power before performing any tests on electrical components.

Maintenance and Cleaning

Regular maintenance can significantly extend the life of an AC contactor and prevent many common issues. Clean the contactor regularly to remove dust, debris, and any corrosion that may have accumulated. Use a contact cleaner spray designed for electrical components to clean the contacts gently. Check and tighten all electrical connections to ensure they are secure. Lubricate moving parts if recommended by the manufacturer, but be cautious not to over-lubricate as this can attract dust and debris. Implement a regular maintenance schedule to catch and address potential issues before they lead to system failure.

When to Replace an AC Contactor?

While maintenance can address many issues, there comes a point when replacement is necessary. Replace the AC contactor if you observe severe pitting or welding of the contacts, if the coil shows signs of failure, or if the contactor consistently fails to operate correctly despite maintenance efforts. It's also advisable to replace the contactor if it's nearing the end of its expected lifespan, even if it's still functioning, as a preventive measure. When replacing, ensure you select a contactor with the correct voltage and current ratings for your application. Consider upgrading to a more robust or energy-efficient model if your system requirements have changed.

Conclusion

Understanding the signs of a failing AC contactor is crucial for maintaining the efficiency and safety of electrical systems. From unusual noises and visible damage to operational inconsistencies, these indicators serve as early warnings that should not be ignored. Regular inspection, proper maintenance, and timely replacement of AC contactors can prevent costly breakdowns, ensure smooth operation of equipment, and maintain energy efficiency. By staying vigilant and addressing issues promptly, you can significantly extend the life of your electrical systems and avoid unexpected disruptions to your operations.
