What Are the Most Common Problems with Small Leakage Circuit Breakers?

Small leakage circuit breakers are crucial components in electrical systems, designed to protect against electric shock and electrical fires. However, these devices can encounter several issues that compromise their effectiveness. The most common problems with small leakage circuit breakers include nuisance tripping, failure to trip when necessary, and physical damage. Nuisance tripping occurs when the breaker activates unnecessarily, often due to moisture, worn insulation, or harmonic distortion. Failure to trip is a more serious issue, where the breaker doesn't respond to genuine faults, potentially exposing users to electrical hazards. Physical damage, such as loose connections or worn contacts, can also impair the breaker's function. Regular maintenance and proper installation are key to mitigating these problems and ensuring optimal performance of small leakage circuit breakers.

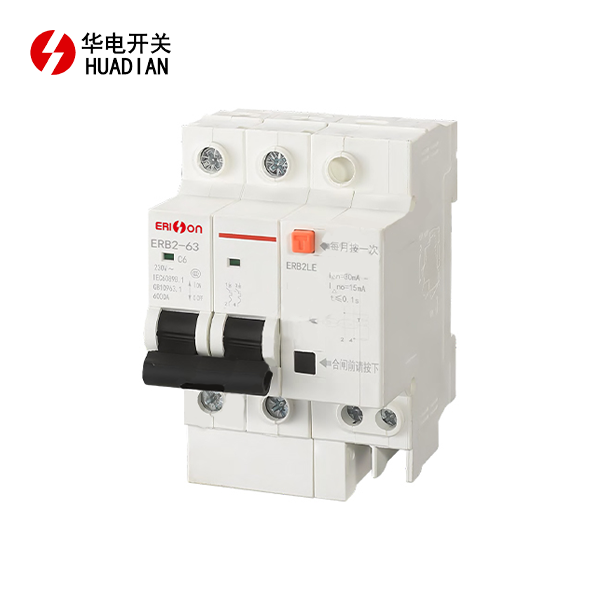

Understanding Small Leakage Circuit Breakers

The Fundamental Principles of Small Leakage Circuit Breakers

Small leakage circuit breakers, also known as residual current devices (RCDs) or ground fault circuit interrupters (GFCIs), operate on a simple yet ingenious principle. These devices continuously monitor the current flowing through the live and neutral conductors of an electrical circuit. In normal conditions, the current in both conductors should be equal. If a leakage occurs, such as when a person accidentally touches a live wire, the device detects the imbalance and rapidly disconnects the circuit, preventing potential electrocution.

The sensitivity of small leakage circuit breakers is typically measured in milliamperes (mA). Most residential and light commercial applications use breakers with a 30mA sensitivity, which can respond to faults in as little as 25 milliseconds. This rapid response time is crucial for preventing electrical accidents and fires.

Types and Applications of Small Leakage Circuit Breakers

There are several types of small leakage circuit breakers, each designed for specific applications:

- AC type: These are the most common and suitable for standard alternating current circuits.

- A type: These can detect both AC and pulsating DC faults, making them ideal for circuits with electronic equipment.

- B type: These are capable of detecting smooth DC faults in addition to AC and pulsating DC, making them suitable for industrial applications with variable frequency drives.

The application of small leakage circuit breakers extends across various sectors. In residential settings, they're commonly found in bathrooms, kitchens, and outdoor areas where water exposure is likely. In commercial and industrial environments, they're used to protect circuits powering machinery, lighting systems, and other electrical equipment.

The Importance of Small Leakage Circuit Breakers in Electrical Safety

The significance of small leakage circuit breakers in electrical safety cannot be overstated. These devices serve as a critical line of defense against electric shock and electrical fires. Unlike standard circuit breakers that only protect against overcurrent and short circuits, small leakage circuit breakers can detect minute current imbalances that could indicate a potentially dangerous situation.

In many countries, the installation of small leakage circuit breakers is mandated by electrical codes and regulations, particularly in areas with high moisture content or where the risk of electrical faults is elevated. Their ability to quickly disconnect faulty circuits has been instrumental in reducing electrical accidents and fatalities worldwide.

Common Problems with Small Leakage Circuit Breakers

Nuisance Tripping: Causes and Solutions

Nuisance tripping is perhaps the most frustrating problem associated with small leakage circuit breakers. This occurs when the breaker trips without any apparent fault, disrupting power supply and causing inconvenience. Several factors can contribute to nuisance tripping:

Moisture ingress is a common culprit, especially in outdoor or damp environments. When moisture penetrates electrical equipment or wiring, it can create small leakage currents that trigger the breaker. Improving weatherproofing and ensuring proper sealing of electrical enclosures can help mitigate this issue.

Another cause of nuisance tripping is the presence of harmonic distortion in the electrical system. This is often due to non-linear loads such as computers, LED lighting, and variable speed drives. Installing harmonic filters or upgrading to a more sophisticated breaker designed to handle harmonics can resolve this problem.

Worn insulation on wiring or equipment can also lead to small leakage currents. Regular inspection and replacement of aging electrical components can prevent this issue.

Failure to Trip: Identifying and Addressing the Issue

While nuisance tripping is annoying, a small leakage circuit breaker that fails to trip when it should is a serious safety concern. This problem can occur due to several reasons:

Mechanical failure of the breaker's internal components is one possibility. Over time, the delicate mechanisms within the breaker can wear out or become damaged, preventing it from functioning correctly. Regular testing of the breaker using its test button can help identify such issues early.

Incorrect installation or wiring errors can also lead to a breaker's failure to trip. This underscores the importance of having qualified electricians perform installations and modifications to electrical systems.

In some cases, the breaker may be undersized for the application, leading to its inability to detect small leakage currents. Ensuring that the breaker's rating is appropriate for the circuit it's protecting is crucial.

Physical Damage and Wear: Prevention and Maintenance

Small leakage circuit breakers, like all electrical components, are subject to physical damage and wear over time. Common issues include:

Loose connections can develop due to thermal cycling or vibration, leading to arcing and potential failure of the breaker. Regular tightening of connections during maintenance can prevent this problem.

Dust and debris accumulation inside the breaker can interfere with its operation. Keeping electrical panels clean and sealed can help maintain the breaker's functionality.

Contact wear is another issue that can develop over time, especially in breakers that trip frequently. This can lead to increased contact resistance and potential failure. Periodic replacement of breakers, especially in critical applications, can prevent problems associated with wear.

Troubleshooting and Maintenance of Small Leakage Circuit Breakers

Diagnostic Procedures for Identifying Breaker Issues

Effective troubleshooting of small leakage circuit breakers requires a systematic approach. The first step is to verify if the problem lies with the breaker itself or the circuit it's protecting. This can be done by disconnecting all loads from the circuit and testing the breaker. If it still trips, the issue is likely with the breaker or the wiring.

Using a megger to test insulation resistance can help identify leakage points in the circuit. This tool applies a high voltage to the circuit and measures the current flow, helping to locate areas of compromised insulation.

For more advanced diagnostics, specialized testing equipment can be used to measure the breaker's trip time and current sensitivity. These tests can reveal if the breaker is operating within its specified parameters or if it needs replacement.

Preventive Maintenance Strategies

Regular maintenance is key to ensuring the reliable operation of small leakage circuit breakers. A comprehensive maintenance strategy should include:

Periodic visual inspections to check for signs of physical damage, overheating, or loose connections. Any abnormalities should be addressed promptly.

Functional testing using the breaker's test button should be performed monthly. This simple test can reveal mechanical issues with the breaker's tripping mechanism.

Annual thermographic scanning of electrical panels can identify hot spots that may indicate loose connections or overloaded circuits before they lead to breaker failure.

When to Replace a Small Leakage Circuit Breaker?

While maintenance can extend the life of a small leakage circuit breaker, there comes a point when replacement is necessary. Signs that indicate a breaker needs replacement include:

Frequent nuisance tripping that persists even after addressing potential causes in the circuit.

Visible signs of damage such as scorch marks, melted plastic, or a burning smell emanating from the breaker.

Failure to trip during regular testing or in response to actual fault conditions.

Age is also a factor to consider. While there's no fixed lifespan for small leakage circuit breakers, many manufacturers recommend replacement after 10-15 years of service, especially in critical applications where reliability is paramount.

Conclusion

Small leakage circuit breakers play a vital role in electrical safety, protecting against potentially life-threatening shocks and fires. While they can experience issues such as nuisance tripping, failure to trip, and physical damage, many of these problems can be mitigated through proper installation, regular maintenance, and timely replacement. Understanding the common problems associated with these devices and implementing effective troubleshooting and maintenance strategies is crucial for maintaining a safe and reliable electrical system. By staying vigilant and proactive in the care of small leakage circuit breakers, we can ensure they continue to provide the critical protection they're designed for, safeguarding lives and property from electrical hazards.
