What are the key specifications of a High Voltage Vacuum Load Switch and Fuse Combination?

The key specifications of a high voltage vacuum load switch and fuse combination, such as the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances, include its rated voltage, current capacity, interrupting capacity, and insulation level. These devices typically operate at voltages between 3.6kV to 40.5kV, with current ratings ranging from 200A to 630A. The interrupting capacity can reach up to 31.5kA, ensuring reliable protection against short circuits. The insulation level, measured by the withstand voltage, is crucial for maintaining safety in high-voltage environments. Additionally, the mechanical and electrical endurance, as well as the operational temperature range, are essential specifications that determine the device's longevity and performance in various conditions.

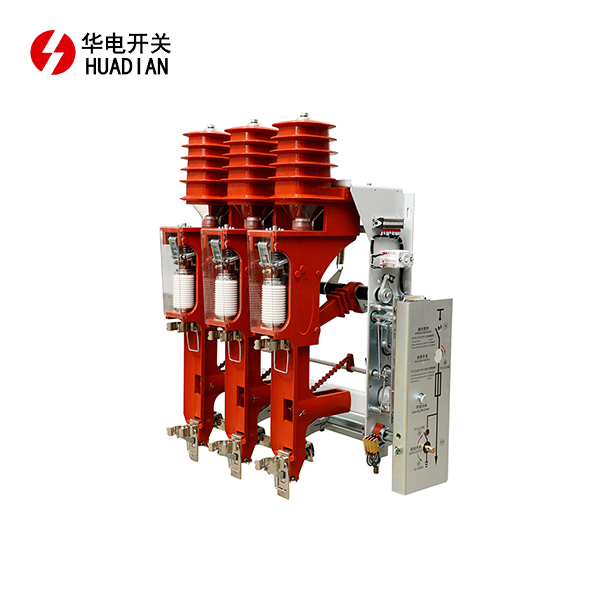

Understanding the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination

The Role of Vacuum Load Switches in Electrical Systems

Vacuum load switches play a pivotal role in electrical systems, particularly in high-voltage applications. These devices are designed to interrupt and establish the flow of electric current under normal load conditions. The FZRN25A-12D, a high-voltage vacuum load switch and fuse combination, exemplifies the integration of switching and protection functions in a single unit.

The vacuum interrupter technology employed in these switches offers several advantages. It provides superior arc quenching capabilities, resulting in minimal contact wear and extended operational life. This technology allows for compact design and reliable performance in challenging environments, making it ideal for use in substations, industrial facilities, and renewable energy installations.

Fuse Integration: Enhancing Protection Capabilities

The integration of fuses with vacuum load switches, as seen in the FZRN25A-12D, brings additional layers of protection to electrical systems. Fuses act as a fail-safe mechanism, rapidly interrupting excessive currents caused by short circuits or overloads. This combination ensures that the electrical network remains safeguarded against potentially catastrophic events.

The fuse element in the FZRN25A-12D is carefully coordinated with the switch's characteristics to provide optimal protection. This coordination ensures that the fuse responds quickly to fault currents while allowing the switch to handle normal load operations. The result is a comprehensive protection scheme that enhances the overall reliability and safety of the electrical system.

Applications and Industries

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances finds applications across various industries and settings. In power distribution networks, these devices are crucial for sectionalizing and isolating parts of the grid, facilitating maintenance and fault management. They are also extensively used in industrial settings where high-voltage equipment requires reliable switching and protection.

Renewable energy sectors, particularly wind and solar farms, benefit from the compact design and robust performance of these devices. The ability to withstand harsh environmental conditions makes them suitable for outdoor installations. Moreover, their reliable operation is essential in ensuring the smooth integration of renewable energy sources into the power grid.

Key Technical Specifications of the FZRN25A-12D

Electrical Ratings and Performance

The FZRN25A-12D boasts impressive electrical ratings that make it suitable for a wide range of high-voltage applications. With a rated voltage of 12kV, it can effectively operate in medium-voltage distribution systems. The device's current-carrying capacity is equally noteworthy, with a rated current of 630A, allowing it to handle substantial load requirements.

One of the standout features of the FZRN25A-12D is its impressive short-circuit breaking capacity. It can safely interrupt fault currents up to 31.5kA, providing robust protection against potential system failures. This high breaking capacity ensures that the device can respond effectively to severe fault conditions, minimizing damage to connected equipment and enhancing overall system reliability.

Insulation and Dielectric Strength

The insulation properties of the FZRN25A-12D are crucial for its safe and reliable operation in high-voltage environments. The device boasts a power frequency withstand voltage of 42kV, ensuring it can maintain its insulating properties under normal operating conditions. Moreover, its lightning impulse withstand voltage of 75kV demonstrates its ability to withstand transient overvoltages, such as those caused by lightning strikes or switching operations.

These impressive insulation characteristics are achieved through careful design and the use of high-quality insulating materials. The vacuum interrupter, in particular, contributes significantly to the device's excellent dielectric strength, allowing for compact construction without compromising on insulation performance.

Mechanical and Environmental Specifications

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances is built to withstand demanding operational conditions. Its mechanical endurance is rated for 3000 operations, ensuring a long service life even in applications requiring frequent switching. This high endurance is particularly valuable in scenarios where regular load management or system reconfiguration is necessary.

Environmental considerations are also addressed in the design of the FZRN25A-12D. It can operate reliably in temperatures ranging from -25°C to +40°C, making it suitable for diverse climatic conditions. The device's enclosure, typically rated at IP54, provides robust protection against dust and water ingress, further enhancing its suitability for outdoor installations.

Advanced Features and Benefits of the FZRN25A-12D

Safety and Operational Enhancements

The FZRN25A-12D incorporates several advanced features that enhance both safety and operational efficiency. One notable feature is its visible isolation gap, which provides clear visual confirmation of the switch's open status. This feature is crucial for maintenance personnel, ensuring that the circuit is genuinely de-energized before work begins.

Another safety enhancement is the device's interlocking mechanism. This system prevents incorrect operation sequences, such as closing the switch when the earthing switch is engaged. Such interlocks are vital in preventing accidents and ensuring that switching operations are performed in the correct order, thereby maintaining the integrity of the electrical system.

Maintenance and Longevity Considerations

The design of the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances places a strong emphasis on minimizing maintenance requirements and maximizing operational lifespan. The use of vacuum interruption technology significantly reduces contact wear compared to traditional air-break switches. This reduction in wear translates to less frequent maintenance needs and a longer overall service life.

Additionally, the sealed vacuum interrupter eliminates the need for regular contact cleaning or adjustment, further reducing maintenance demands. The robust construction of the device, coupled with its high mechanical endurance, ensures that it can withstand years of operation in challenging environments with minimal intervention.

Integration with Smart Grid Technologies

As power systems evolve towards smarter, more interconnected grids, the FZRN25A-12D is well-positioned to integrate with these advanced technologies. Many modern versions of this device come equipped with remote monitoring and control capabilities, allowing for seamless integration with SCADA (Supervisory Control and Data Acquisition) systems.

These smart features enable real-time monitoring of switch status, fault detection, and remote operation. Such capabilities are invaluable in improving grid reliability, reducing response times to faults, and enabling more efficient load management. The ability to remotely operate and monitor these devices aligns perfectly with the trend towards more automated and responsive power distribution networks.

Conclusion

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances represents a pinnacle in electrical protection and switching technology. Its robust specifications, including high voltage and current ratings, exceptional breaking capacity, and advanced safety features, make it an indispensable component in modern electrical systems. The integration of vacuum switching technology with fuse protection offers a comprehensive solution for load management and fault protection. As power systems continue to evolve, devices like the FZRN25A-12D will play a crucial role in ensuring the reliability, safety, and efficiency of electrical networks across various industries and applications.
