What are the disadvantages of a vacuum circuit breaker?

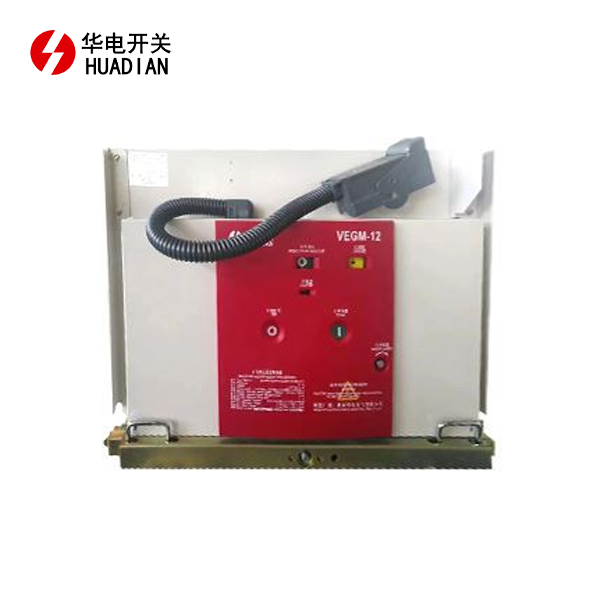

Due to their numerous benefits, vacuum circuit breakers have become increasingly popular in electrical systems. However, they also have some disadvantages, just like any other technology. This article digs into the drawbacks of vacuum circuit breakers, giving an extensive outline to engineers, obtainment trained professionals, and anybody engaged with electrical framework plan and support.

Cost Considerations

One of the primary disadvantages of vacuum circuit breakers is their cost. These sophisticated devices often come with a hefty price tag, which can be a significant factor for many organizations.

Initial Investment

The initial investment for vacuum circuit breakers is notably higher than that for traditional oil or air circuit breakers. This increased cost can be a significant hurdle for smaller companies or projects with limited budgets. The higher expense is largely attributed to the advanced technology and precision engineering involved in producing vacuum interrupters. These breakers require specialized materials and manufacturing processes to ensure their high performance and reliability. As a result, the sophisticated design and advanced components contribute to the elevated upfront cost, making it a considerable financial commitment for many organizations.

Specialized Maintenance

Vacuum circuit breakers typically demand less frequent maintenance compared to traditional oil or air circuit breakers, thanks to their robust design and sealed environment. However, when maintenance is necessary, it often requires specialized knowledge and equipment. The complexity of the technology means that only technicians with specific training and expertise can perform repairs or routine inspections effectively. This specialized skill set and the need for advanced tools can result in higher maintenance costs over time. Organizations may face increased expenses as they rely on these expert technicians and specialized equipment to ensure the breakers' optimal performance and longevity.

Replacement Expenses

When a vacuum interrupter requires replacement, the associated costs can be significant. Unlike other types of circuit breakers where individual components might be swapped out, vacuum interrupters often necessitate the replacement of the entire sealed unit. This is because the interrupter's sealed design, while advantageous for longevity and reliability, limits the ability to repair or replace only specific parts. Consequently, when a malfunction occurs, replacing the whole unit can be a costly endeavor. This substantial replacement expense highlights the need for careful consideration of the long-term financial implications when choosing vacuum circuit breakers for a system.

Technical Limitations

Despite their many advantages, vacuum circuit breakers do have some technical limitations that users should be aware of.

Voltage Limitations

Vacuum circuit breakers work best in applications with medium voltages, usually between 1kV and 38kV, but other technologies, like SF6 circuit breakers, are often preferred in applications with higher voltages. This voltage limit can be a huge downside in high-voltage transmission frameworks.

Chopping Current Phenomenon

Vacuum circuit breakers are known for the "chopping current" phenomenon. This occurs when the breaker interrupts the current before its natural zero-crossing point, potentially leading to high-frequency transients. These transients can cause overvoltages, which may be harmful to connected equipment if not properly managed.

Restrikes and Pre-strikes

Vacuum circuit breakers are susceptible to restrikes and pre-strikes. Restrikes occur when the arc reignites after current interruption, while pre-strikes happen when the arc forms before the contacts touch during closing. These phenomena can lead to insulation stress and potentially reduce the lifespan of the breaker and connected equipment.

Operational Challenges

While vacuum circuit breakers are generally reliable, they present certain operational challenges that users should be prepared to address.

Sensitivity to Environmental Factors

Vacuum circuit breakers can be sensitive to environmental conditions. Extreme temperatures, high humidity, or contamination can affect their performance. In harsh environments, special measures may be necessary to ensure the breaker's reliability, potentially increasing complexity and cost.

Limited Visual Inspection

The sealed nature of vacuum interrupters makes visual inspection of contact wear challenging. Unlike oil circuit breakers where the oil level can be a visual indicator of the breaker's condition, vacuum circuit breakers require specialized diagnostic tools to assess their internal state accurately.

X-ray Emission Concerns

Vacuum circuit breakers may produce low levels of X-rays when in use. Even though these levels are usually thought to be safe, they can be a problem in some applications or settings. Installation and upkeep may be more difficult if proper safety and shielding measures are needed.

Conclusion

Taking everything into account, while vacuum circuit breakers offer various advantages, it's critical to consider their burdens while arriving at conclusions about electrical framework plan and hardware determination. Vacuum circuit breakers may not be suitable for certain environments or applications due to their high initial cost, technical limitations, and operational difficulties.

However, it is essential to keep in mind that proper system design, routine upkeep, and the use of sophisticated diagnostic tools can all help to alleviate many of these drawbacks. As innovation keeps on developing, we can hope to see enhancements that address a portion of these constraints, further improving the allure of vacuum circuit breakers in a great many applications.
