Understanding the Materials That Make High-Temperature Cables Heat-Resistant

High-temperature cables are indispensable components in various industries, designed to withstand extreme heat conditions while maintaining their electrical and mechanical properties. These cables owe their remarkable heat resistance to a combination of advanced materials and innovative construction techniques. The core materials typically include high-performance polymers, ceramics, and specialized metal alloys, each chosen for its ability to maintain stability and functionality at elevated temperatures. The insulation often consists of materials like silicone rubber, fluoropolymers, or mica, which provide excellent thermal and electrical insulation. The outer jacket may incorporate additional heat-resistant compounds or reinforcing fibers to enhance durability. Understanding these materials is crucial for selecting the right high-temperature cable for specific applications, ensuring safety and reliability in harsh thermal environments.

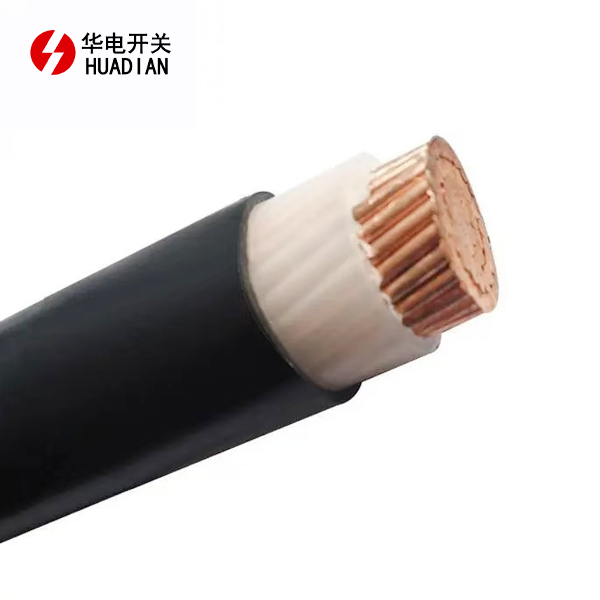

Core Conductor Materials in High-Temperature Cables

Copper and Its Alloys

Copper remains a popular choice for high-temperature cable conductors due to its excellent electrical conductivity and thermal properties. However, in extreme heat conditions, copper alloys like copper-nickel or beryllium copper may be preferred. These alloys offer enhanced strength and resistance to oxidation at high temperatures, maintaining their conductive properties more effectively than pure copper.

Nickel-Clad Copper

Nickel-clad copper conductors are engineered to combine the superior conductivity of copper with the heat resistance of nickel. The nickel coating protects the copper core from oxidation and degradation at high temperatures, making these conductors ideal for applications where temperatures can exceed 400°C. This innovative material ensures consistent electrical performance in extreme heat environments.

Aluminum and Its Alloys

While less common than copper in high-temperature applications, aluminum and its alloys are sometimes used in high-temperature cables, particularly where weight is a concern. Aluminum conductors are often alloyed with elements like zirconium or rare earth metals to improve their high-temperature strength and creep resistance. These alloys can maintain their mechanical properties at elevated temperatures, making them suitable for specific high-temperature cable applications.

Insulation Materials for Heat-Resistant Cables

Silicone Rubber Insulation

Silicone rubber is a versatile insulation material widely used in high-temperature cables. Its molecular structure, consisting of alternating silicon and oxygen atoms, provides exceptional thermal stability. Silicone rubber can maintain its flexibility and electrical properties at temperatures ranging from -55°C to 200°C, with some specialized formulations capable of withstanding even higher temperatures. Additionally, silicone rubber offers excellent resistance to ozone, UV radiation, and moisture, contributing to the overall durability of high-temperature cables.

Fluoropolymer Insulations

Fluoropolymers, such as PTFE (Polytetrafluoroethylene) and FEP (Fluorinated Ethylene Propylene), are renowned for their exceptional heat resistance and chemical inertness. These materials can withstand temperatures up to 260°C continuously, with some grades capable of short-term exposure to even higher temperatures. Fluoropolymer insulations maintain their electrical and mechanical properties under extreme heat, making them ideal for high-temperature cables in demanding industrial and aerospace applications. Their low dielectric constant and dissipation factor also contribute to excellent signal transmission characteristics in high-frequency applications.

Mica Tape Insulation

Mica tape insulation is a highly effective solution for extreme temperature environments. Composed of thin layers of mica flakes bonded with high-temperature resistant resins, this insulation can withstand temperatures up to 1000°C. Mica's natural inorganic structure provides excellent thermal stability, fire resistance, and dielectric strength. In high-temperature cables, mica tape is often used in combination with other insulating materials to create a composite insulation system that offers superior heat resistance and electrical performance. This layered approach allows for the creation of cables that can operate reliably in the most challenging thermal conditions.

Jacket Materials for High-Temperature Cable Protection

Fiberglass Braiding

Fiberglass braiding serves as an excellent outer jacket material for high-temperature cables. Its inherent heat resistance, coupled with high tensile strength, makes it ideal for protecting the cable's core and insulation. Fiberglass can withstand continuous temperatures up to 650°C, providing a robust barrier against mechanical stress and thermal damage. The braided structure also offers flexibility, allowing the cable to bend without compromising its protective qualities. Additionally, fiberglass is non-conductive, which enhances the overall electrical insulation of the cable system.

Polyimide Film Wrapping

Polyimide films, such as Kapton®, are used as high-performance jacket materials in high-temperature cables. These films exhibit exceptional thermal stability, maintaining their mechanical and electrical properties at temperatures up to 400°C. Polyimide jackets are extremely thin yet durable, offering excellent abrasion resistance and dimensional stability. Their low outgassing properties make them particularly suitable for aerospace and vacuum applications. The film can be wrapped around the cable core in multiple layers, providing a compact, lightweight, and highly heat-resistant outer protection.

Metal Braiding and Shielding

For the most extraordinary temperature applications or where electromagnetic protecting is required, metal braiding or protecting can be consolidated into the cable jacket. Materials like stainless steel, inconel, or other high-temperature alloys are woven into a adaptable braid that encases the cable. This metallic external layer not only gives prevalent heat resistance but moreover offers fabulous security against mechanical damage and electromagnetic obstructions. Metal-braided jackets can withstand temperatures well over 1000°C, making them reasonable for applications in furnaces, engine compartments, and other high-heat industrial environments.

Conclusion

The development of high-temperature cables represents a remarkable fusion of materials science and engineering. By carefully selecting and combining heat-resistant conductors, advanced insulation materials, and robust jacket solutions, manufacturers create cables capable of operating reliably in the most demanding thermal environments. From silicone rubber and fluoropolymers to mica composites and metal alloys, each material plays a crucial role in ensuring the cable's performance and longevity. As industries continue to push the boundaries of operational temperatures, the ongoing research and development in high-temperature cable materials remain vital. Understanding these materials not only aids in proper cable selection but also drives innovation towards even more heat-resistant and efficient cable solutions for future applications.
