Understanding Small Leakage Circuit Breakers

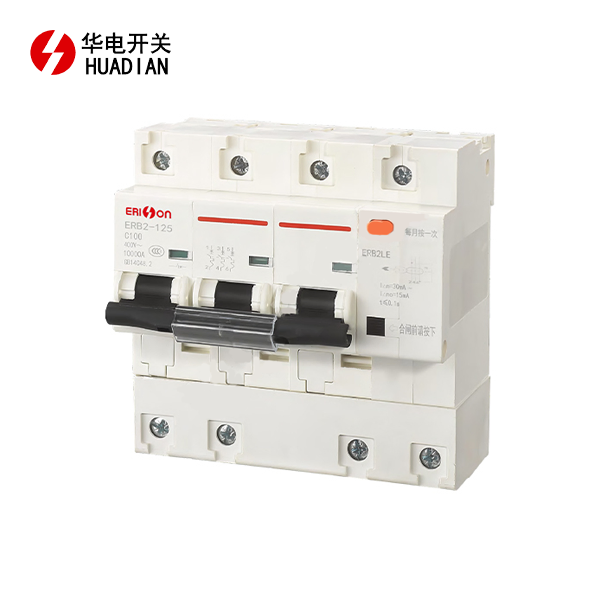

What Are Small Leakage Circuit Breakers
Small leakage circuit breakers are sophisticated electrical safety devices designed to protect against electrical hazards. They continuously monitor the current flow in a circuit and swiftly interrupt the power supply when they detect an imbalance, which could indicate a potential ground fault or leakage current. This rapid response helps prevent electrical shocks and reduces the risk of electrical fires.
How Do Small Leakage Circuit Breakers Work
The operation of small leakage circuit breakers relies on the principle of current differentiation. These devices measure the current flowing into a circuit through the live conductor and compare it with the current returning through the neutral conductor. In a normal situation, these currents should be equal. If there's a discrepancy, even as small as 30 milliamperes, the circuit breaker will trip, cutting off the power supply almost instantaneously.
Types of Small Leakage Circuit Breakers
There are several types of small leakage circuit breakers available in the market, each suited for specific applications:
- Type AC: Designed for standard alternating current applications
- Type A: Suitable for both AC and pulsating DC currents
- Type F: Ideal for high-frequency applications
-Type B: Capable of detecting both AC and smooth DC fault currents
Preparing for Installation
Safety Precautions
Before embarking on the installation process, it's paramount to prioritize safety. Ensure the main power supply is turned off and use a voltage tester to verify that no current is flowing through the circuits. Wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses. If you're uncertain about any aspect of the installation, it's advisable to consult a licensed electrician.
Tools and Materials Needed
Gather all necessary tools and materials before starting the installation. You'll need:
- Small leakage circuit breaker
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Voltage tester
- Needle-nose pliers
- Electrical tape
- Wire connectors
- Multimeter
Assessing Your Electrical Panel
Examine your electrical panel to determine the best location for the small leakage circuit breaker. Ensure there's sufficient space and that the panel can accommodate the new device. Check the panel's amperage rating and verify that it's compatible with the circuit breaker you intend to install. If your panel is outdated or lacks space, you may need to consider upgrading it before proceeding with the installation.
Step-by-Step Installation Process
Turning Off the Power
Begin by locating your main electrical panel and switching off the main circuit breaker. This step is crucial for your safety. Use a voltage tester to double-check that power is indeed off in the circuits you'll be working on. Remember, electrical work can be dangerous, and taking this precaution is non-negotiable.
Removing the Panel Cover
Carefully remove the panel cover to access the interior of the electrical panel. This typically involves unscrewing several screws around the perimeter of the cover. Once removed, set the cover aside in a safe place. Take note of the panel's layout and the position of existing circuit breakers.
Installing the Small Leakage Circuit Breaker
Follow these steps to install the small leakage circuit breaker:
- Identify an empty slot in the panel where you'll install the new breaker.
- Align the breaker with the bus bar and snap it into place. Ensure it's securely seated.
- Connect the incoming hot wire to the "LINE" terminal of the breaker.
- Attach the outgoing hot wire to the "LOAD" terminal.
- Connect the neutral wire to the neutral bar in the panel.
- If required, connect the ground wire to the ground bar.
Post-Installation Steps
Testing the Installed Breaker
After installation, it's crucial to test the small leakage circuit breaker to ensure it's functioning correctly:
- Replace the panel cover and turn the main power back on.
- Locate the test button on the newly installed breaker.
- Press the test button firmly.
- The breaker should trip immediately, cutting off power to the circuit.
- If it doesn't trip, turn off the main power and recheck your connections.
Labeling and Documentation
Proper labeling and documentation are essential for future reference and maintenance:
- Label the new breaker clearly, indicating which circuit it protects.
- Update your electrical panel diagram to reflect the new addition.
- Keep a record of the installation date and the breaker's specifications.
Educating Household Members
Take the time to educate everyone in your household about the new small leakage circuit breaker:
- Explain its purpose and importance in ensuring electrical safety.
- Demonstrate how to test the breaker and how often it should be done.
- Discuss what to do if the breaker trips frequently.
Conclusion
Installing small leakage circuit breakers is a significant step towards enhancing electrical safety in your home or business. By following this comprehensive guide, you've not only added an essential layer of protection against electrical hazards but also gained valuable insights into your electrical system. Remember, while this guide provides detailed instructions, electrical work can be complex and potentially dangerous. If you encounter any difficulties or feel uncertain at any point during the installation process, don't hesitate to seek the assistance of a qualified electrician. Regular maintenance and testing of your small leakage circuit breakers will ensure they continue to provide reliable protection for years to come.
