How to Safely Install Instrumentation Cables in Industrial Settings?

Safely installing instrumentation cables in industrial settings requires meticulous planning, adherence to industry standards, and precise execution. The process involves careful cable selection, proper routing techniques, and appropriate protection measures. Installers must consider factors such as environmental conditions, electromagnetic interference, and mechanical stress. By following best practices, such as using cable trays, conduits, or cable ladders, implementing proper grounding and shielding, and maintaining adequate separation from power cables, technicians can ensure reliable signal transmission and minimize the risk of damage or interference. Regular inspection and maintenance of the installed instrumentation cables are crucial for long-term performance and safety in industrial environments.

Preparation and Planning for Instrumentation Cable Installation

Site Assessment and Environmental Considerations

Before embarking on the installation of instrumentation cables, a thorough site assessment is paramount. This evaluation should encompass various environmental factors that could impact the longevity and performance of the cables. Ambient temperature fluctuations, humidity levels, and exposure to corrosive substances are critical considerations. For instance, in areas with high moisture content, cables with enhanced moisture resistance properties should be selected. Similarly, in locations with extreme temperature variations, cables with appropriate temperature ratings must be chosen to prevent degradation or failure.

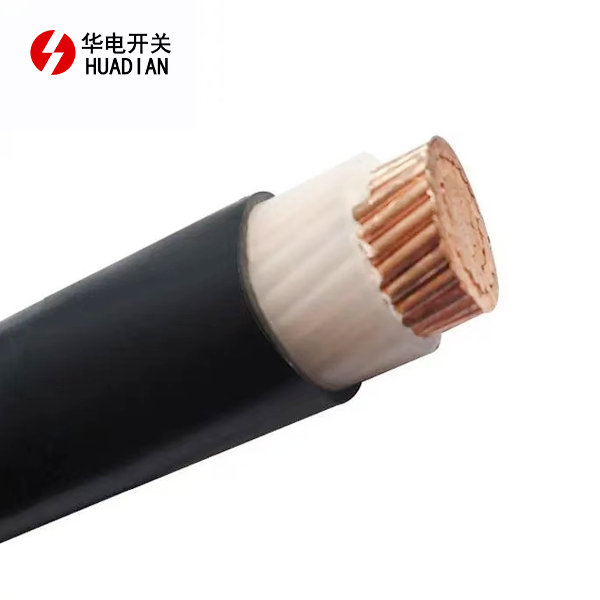

Cable Selection and Specification

Selecting the appropriate instrumentation cable is a crucial step in ensuring a safe and efficient installation. Factors to consider include the signal type (analog, digital, or hybrid), required bandwidth, and the distance the signal needs to travel. The cable's shielding requirements should be determined based on the level of electromagnetic interference (EMI) present in the environment. Additionally, the cable's outer jacket material should be selected based on its resistance to chemicals, abrasion, and UV radiation, depending on the specific industrial setting. It's also essential to consider the cable's flexibility and bending radius, especially in applications where frequent movement or vibration is expected.

Routing Plan and Cable Management Strategy

Developing a comprehensive routing plan is essential for a successful instrumentation cable installation. This plan should outline the most efficient and secure paths for the cables, taking into account physical obstacles, potential interference sources, and accessibility for future maintenance. A well-designed cable management strategy should incorporate appropriate cable support systems such as cable trays, conduits, or cable ladders. These systems not only provide physical protection but also help in organizing cables for easy identification and maintenance. The routing plan should also consider the segregation of instrumentation cables from power cables to minimize electromagnetic interference and ensure signal integrity.

Installation Techniques for Instrumentation Cables

Proper Cable Handling and Unspooling Methods

Correct handling of instrumentation cables during installation is crucial to prevent damage and ensure optimal performance. When unspooling cables, it's important to use appropriate equipment such as cable jacks or turntables to maintain tension and prevent kinking or twisting. The cable should never be pulled directly from the side of a reel, as this can cause spiraling and potential damage to the internal conductors. For longer cable runs, intermediate pulling points may be necessary to distribute the pulling force and reduce strain on the cable. It's also important to observe the manufacturer's specified minimum bending radius to avoid damaging the cable's internal structure.

Secure Mounting and Support Techniques

Proper mounting and support of instrumentation cables are essential for long-term reliability and safety. Cable trays, ladders, or conduits should be securely fastened to the building structure or equipment frames. When using cable ties or clamps, care must be taken not to over-tighten them, as this can deform the cable and potentially damage the internal conductors or shielding. In areas subject to vibration or movement, flexible conduits or specialized vibration-resistant mounting systems should be employed. For vertical runs, appropriate cable support grips or clamps should be used at regular intervals to prevent the cable's weight from causing strain or slippage.

Grounding and Shielding Implementation

Effective grounding and shielding are critical aspects of instrumentation cable installation, particularly in environments with high levels of electromagnetic interference. The cable's shield should be properly terminated and grounded, typically at one end to prevent ground loops. In some cases, multi-point grounding may be necessary for high-frequency signals. When transitioning between different grounding zones, isolation barriers or surge protection devices may be required. It's important to maintain the continuity of shielding across cable joints or terminations to ensure consistent protection against interference. Regular testing of the grounding system's integrity should be part of the installation and maintenance process.

Post-Installation Procedures and Maintenance

Testing and Verification of Installed Cables

After the installation of instrumentation cables, thorough testing and verification are essential to ensure proper functionality and compliance with safety standards. This process typically involves continuity testing to verify the integrity of each conductor, insulation resistance testing to check for any damage to the cable's insulation, and signal quality testing to ensure the cable meets the required performance specifications. For critical applications, time-domain reflectometry (TDR) may be used to detect any faults or anomalies along the cable length. It's also important to verify that the cable installation complies with relevant industry standards and local regulations.

Documentation and Labeling Protocols

Comprehensive documentation of the instrumentation cable installation is crucial for future maintenance and troubleshooting. This documentation should include detailed cable routing diagrams, specifications of the installed cables, test results, and any deviations from the original installation plan. Each cable should be clearly labeled at both ends and at regular intervals along its length, using durable labels that can withstand the industrial environment. The labeling system should follow a consistent and logical scheme that allows for easy identification of cable function, origin, and destination. This documentation and labeling not only facilitate maintenance but also aid in future system expansions or modifications.

Ongoing Maintenance and Inspection Schedules

Regular maintenance and inspection of instrumentation cables are essential for ensuring long-term reliability and safety. A comprehensive maintenance schedule should be established, including periodic visual inspections for signs of physical damage, corrosion, or environmental degradation. Thermal imaging can be used to detect any hot spots that might indicate electrical issues. The integrity of cable support systems, grounding connections, and cable terminations should be checked regularly. In harsh environments, more frequent inspections may be necessary. Any issues identified during these inspections should be promptly addressed to prevent potential failures or safety hazards. Additionally, maintaining accurate records of all maintenance activities and any repairs or replacements is crucial for tracking the system's health over time.

Conclusion

The safe installation of instrumentation cables in industrial settings is a complex process that requires careful planning, precise execution, and ongoing maintenance. By following best practices in cable selection, installation techniques, and post-installation procedures, organizations can ensure the reliability and longevity of their instrumentation systems. Proper cable management not only enhances safety but also improves operational efficiency and reduces downtime. As industrial environments continue to evolve with advancing technologies, staying updated with the latest standards and techniques in instrumentation cable installation remains crucial for maintaining optimal performance and safety in industrial operations.
