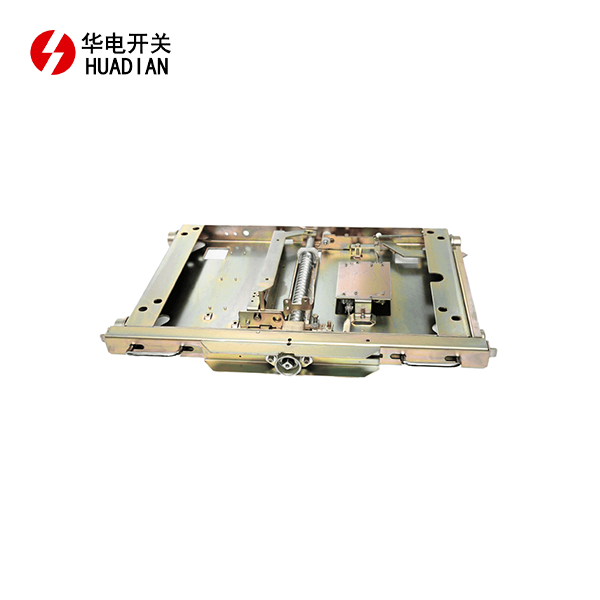

Installation Process for the DPC-4 Series Chassis
Pre-Installation Preparations
Before embarking on the installation of the DPC-4 series chassis, it's imperative to conduct thorough preparations. Begin by meticulously examining the installation site, ensuring it meets all necessary specifications. Verify that the mounting surface is level and capable of supporting the chassis weight. Gather all required tools and equipment, including a torque wrench, insulated screwdrivers, and personal protective equipment (PPE). Review the manufacturer's documentation to familiarize yourself with any specific requirements or precautions.
Mounting the Chassis
The mounting process is a critical step in the installation of the DPC-4 series chassis. Start by positioning the chassis in its designated location, using appropriate lifting equipment if necessary. Align the mounting holes precisely with the pre-drilled holes in the mounting surface. Insert the mounting bolts, but do not fully tighten them yet. Use a level to ensure the chassis is perfectly horizontal, making adjustments as needed. Once properly aligned, tighten the mounting bolts to the manufacturer-specified torque using a calibrated torque wrench.
Electrical Connections
Establishing proper electrical connections is paramount for the safe and efficient operation of the DPC-4 series chassis. Begin by verifying that all power sources are completely de-energized and locked out. Carefully connect the main power cables to the designated terminals, ensuring proper polarity and secure connections. Install any necessary control wiring, adhering to the wiring diagram provided in the manufacturer's documentation. Double-check all connections for tightness and proper insulation. Before energizing the system, conduct a thorough visual inspection and use a multimeter to verify the integrity of all connections.
Maintenance Strategies for Optimal Performance
Regular Inspection Routines
Implementing a robust inspection routine is crucial for maintaining the DPC-4 series chassis in peak condition. Develop a comprehensive checklist that covers all critical components and systems. Conduct visual inspections at regular intervals, looking for signs of wear, corrosion, or loose connections. Pay particular attention to insulation integrity, contact condition, and the overall cleanliness of the chassis. Use thermal imaging cameras to detect any hot spots that may indicate potential issues. Document all findings meticulously, creating a historical record that can help identify trends and predict potential failures before they occur.
Cleaning and Lubrication Procedures
Proper cleaning and lubrication are essential for the longevity and reliability of the DPC-4 series chassis. Develop a cleaning schedule based on the environmental conditions and usage patterns of your specific installation. Use only manufacturer-approved cleaning agents and techniques to avoid damaging sensitive components. Pay special attention to ventilation openings, ensuring they remain free from dust and debris. For moving parts, apply appropriate lubricants as recommended by the manufacturer, being careful not to over-lubricate, which can attract dust and potentially cause electrical issues. Always use non-conductive lubricants for electrical components.
Component Replacement and Upgrades
To maintain optimal performance, it's crucial to replace worn components and consider strategic upgrades for the DPC-4 series chassis. Develop a proactive replacement strategy based on manufacturer recommendations and your own operational data. Keep an inventory of critical spare parts to minimize downtime during replacements. When replacing components, always use genuine parts or those explicitly approved by the manufacturer to ensure compatibility and maintain warranty coverage. Stay informed about available upgrades that could enhance the performance or efficiency of your DPC-4 series chassis, and evaluate their potential return on investment.
Troubleshooting Common Issues
Diagnostic Techniques
Effective troubleshooting of the DPC-4 series chassis requires a systematic approach and the right diagnostic techniques. Familiarize yourself with the chassis's normal operating parameters and alarm systems. When issues arise, begin with a thorough visual inspection, looking for obvious signs of damage or malfunction. Utilize diagnostic tools such as multimeters, oscilloscopes, and power quality analyzers to gather data on electrical performance. Develop a decision tree for common issues to streamline the troubleshooting process. Always consult the manufacturer's troubleshooting guide for specific procedures and safety precautions.
Common Problems and Solutions
While the DPC-4 series chassis is known for its reliability, certain issues may occasionally arise. Familiarize yourself with common problems such as contact wear, insulation breakdown, or control circuit malfunctions. For each potential issue, develop a step-by-step resolution process. For instance, if you encounter frequent tripping, investigate possible causes such as overloading, short circuits, or faulty trip units. Document all troubleshooting efforts and their outcomes to build a knowledge base for future reference. Remember that some complex issues may require manufacturer support or specialized expertise.
When to Seek Professional Assistance
While many maintenance and troubleshooting tasks can be handled in-house, it's crucial to recognize when professional assistance is necessary for the DPC-4 series chassis. Establish clear guidelines for when to escalate issues to the manufacturer or a specialized service provider. Complex electrical problems, recurring issues that resist resolution, or any situation where safety is compromised are all indicators that expert help is needed. Maintain a list of qualified service providers and their contact information for quick access during emergencies. Remember that attempting repairs beyond your expertise can void warranties and potentially create dangerous situations.
Conclusion
Mastering the installation and maintenance of the DPC-4 series chassis is crucial for ensuring the reliability and longevity of your electrical system. By following the comprehensive guidelines outlined in this article, you can confidently handle the installation process, implement effective maintenance strategies, and troubleshoot common issues. Remember that proper care and attention to detail are key to maximizing the performance of your DPC-4 series chassis. Regular inspections, timely maintenance, and prompt attention to any emerging issues will help you avoid costly downtime and extend the life of your equipment.
