Understanding Small Leakage Circuit Breakers
What are Small Leakage Circuit Breakers

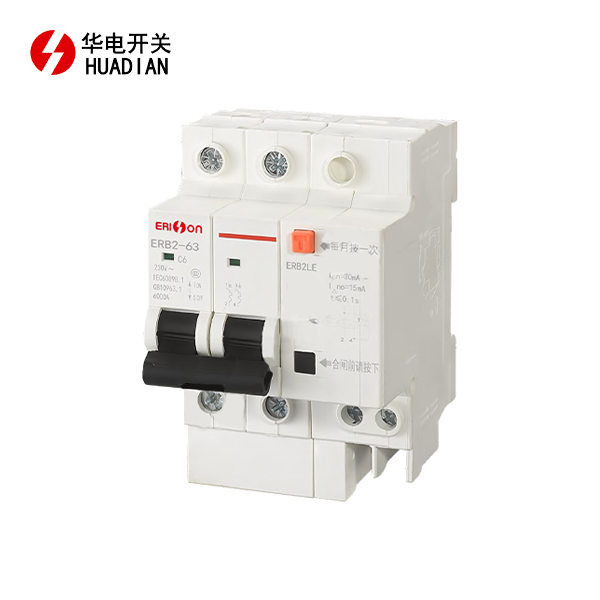

Small leakage circuit breakers, also known as residual current devices (RCDs) or ground fault circuit interrupters (GFCIs), are specialized electrical safety devices designed to protect against electric shock and fire hazards. These compact devices are installed in electrical distribution boards or directly into power outlets, continuously monitoring the electrical current flowing through a circuit.
The primary function of a small leakage circuit breaker is to detect any imbalance between the current flowing into and out of a circuit. In normal conditions, the amount of current entering a circuit should be equal to the amount returning. However, if there's a leakage due to a fault or someone accidentally coming into contact with a live wire, the breaker detects this discrepancy and rapidly cuts off the power supply.
How Small Leakage Circuit Breakers Operate
The operation of small leakage circuit breakers is based on a simple yet effective principle. Inside the device, there's a differential current transformer that measures the current flowing in the live and neutral conductors. Under normal circumstances, these currents should be equal. If a leakage occurs, it creates an imbalance in the current flow.
When the difference between the incoming and outgoing current exceeds a predetermined threshold (typically 30mA for domestic applications), the circuit breaker's trip mechanism is activated. This triggers the opening of electrical contacts within the device, interrupting the power supply to the protected circuit in a fraction of a second.
Types of Small Leakage Circuit Breakers
There are several types of small leakage circuit breakers available, each designed for specific applications and environments:
- AC Type: Sensitive to alternating current leakage
- A Type: Detects both AC and pulsating DC leakage currents
- B Type: Capable of detecting AC, pulsating DC, and smooth DC leakage currents
- S Type: Selective RCDs for use in cascaded systems
Benefits of Using Small Leakage Circuit Breakers
Enhanced Electrical Safety
The primary benefit of small leakage circuit breakers is the significant improvement in electrical safety they provide. These devices offer protection against electric shock by quickly disconnecting the power supply when they detect a leakage current. This rapid response can be life-saving, particularly in situations where a person might come into contact with a live electrical component.
Moreover, small leakage circuit breakers protect against indirect contact hazards. For instance, if an appliance develops a fault that causes its metal casing to become live, the breaker will trip before a person touching the appliance can receive a dangerous shock.
Fire Prevention
Another crucial benefit of small leakage circuit breakers is their role in fire prevention. Electrical fires often start due to undetected earth leakage currents, which can cause overheating in wiring or appliances. By swiftly cutting off the power supply when such leakages are detected, these devices significantly reduce the risk of electrical fires.
This fire prevention capability is particularly valuable in both residential and commercial settings, where electrical fires can lead to devastating consequences in terms of property damage and potential loss of life.
Compliance with Electrical Safety Regulations
The installation of small leakage circuit breakers is often mandated by electrical safety regulations in many countries. By incorporating these devices into electrical systems, property owners and managers can ensure compliance with these regulations, avoiding potential legal issues and penalties.
Furthermore, the use of small leakage circuit breakers demonstrates a commitment to safety, which can be particularly important for businesses in terms of liability protection and maintaining a positive reputation.
Installation and Maintenance of Small Leakage Circuit Breakers
Proper Installation Techniques
The installation of small leakage circuit breakers requires careful consideration and expertise. These devices should be installed by qualified electricians who understand the intricacies of electrical systems and can ensure proper integration with existing circuits.
Key considerations during installation include:
- Correct sizing of the breaker based on the circuit's amperage
- Proper wiring connections to ensure effective operation
- Strategic placement within the electrical distribution system for optimal protection
- Ensuring compatibility with the existing electrical infrastructure
Regular Testing and Maintenance
To ensure the continued effectiveness of small leakage circuit breakers, regular testing and maintenance are essential. Most devices come equipped with a test button that simulates a leakage condition. This test should be performed periodically, typically monthly, to verify that the breaker is functioning correctly.
The testing process usually involves:
- Pressing the test button on the device
- Observing that the breaker trips immediately
- Resetting the breaker to restore power
Troubleshooting Common Issues
While small leakage circuit breakers are generally reliable, they can sometimes experience issues. Common problems include nuisance tripping, failure to trip during testing, or complete non-operation.
Troubleshooting steps may include:
- Checking for loose connections or damaged wiring
- Identifying and addressing potential sources of leakage in the protected circuit
- Verifying the breaker's compatibility with the electrical system
- Assessing environmental factors that might affect the breaker's performance
Conclusion
Small leakage circuit breakers are indispensable components in modern electrical systems, providing a critical layer of protection against electrical hazards. By swiftly detecting and responding to current imbalances, these devices significantly reduce the risks of electric shock and electrical fires. Their importance in enhancing safety, ensuring regulatory compliance, and protecting both lives and property cannot be overstated. As technology continues to advance, the role of small leakage circuit breakers in safeguarding our electrical environments is likely to grow, making them an essential consideration for anyone involved in electrical system design, installation, or maintenance.
