How does a 12~40.5kV Contact Box series improve safety in high-voltage environments?

The 12~40.5kV contact box series significantly enhances safety in high-voltage environments through its advanced design and robust construction. These contact boxes are engineered to provide superior insulation, arc quenching, and current interruption capabilities, effectively minimizing the risk of electrical accidents and equipment damage. By incorporating state-of-the-art materials and innovative technologies, the series ensures reliable performance under extreme conditions, safeguarding both personnel and equipment. The contact boxes' ability to swiftly isolate faults, combined with their high dielectric strength and thermal resistance, creates a safer operational environment in power distribution systems, switchgear, and industrial applications.

Understanding the 12~40.5kV Contact Box Series

Components and Construction

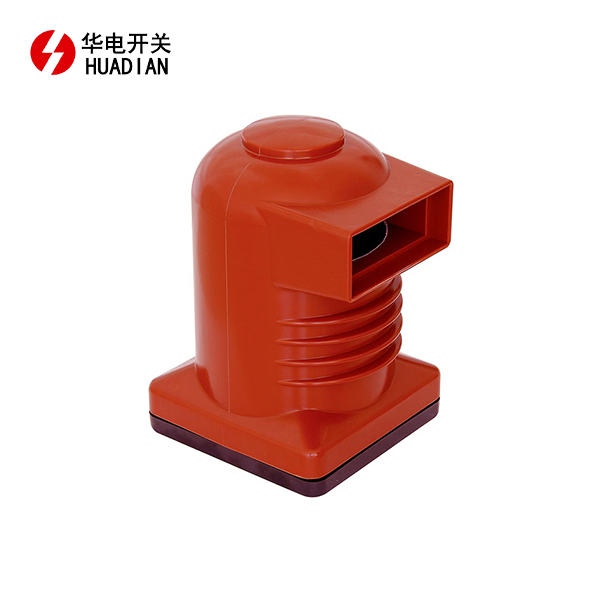

The 12~40.5kV contact box series is a marvel of engineering, comprising several key components that work in harmony to ensure optimal performance and safety. At its core, the contact box houses the main contacts, typically made of high-conductivity materials such as copper or silver-plated copper. These contacts are designed to handle high currents and voltages while minimizing electrical resistance and heat generation.

Surrounding the main contacts is an insulation system, often utilizing advanced materials like epoxy resin or SF6 gas. This insulation plays a crucial role in preventing electrical breakdown and maintaining dielectric strength. The contact box also incorporates arc-quenching chambers, which are engineered to rapidly extinguish any arcs that may form during circuit interruption.

The outer shell of the contact box is constructed from durable materials, such as high-grade polymers or metal alloys, providing mechanical protection and environmental sealing. This robust construction ensures the contact box can withstand the harsh conditions often present in high-voltage environments.

Operating Principles

The 12~40.5kV contact box series operates on sophisticated principles that ensure safe and efficient current interruption. When a fault occurs or the circuit needs to be opened, the main contacts within the box separate. This separation creates an arc, which is quickly elongated and cooled within the arc-quenching chamber.

The contact box employs various arc-extinguishing techniques, such as magnetic blowout coils or gas blast methods, to rapidly dissipate the arc energy. This swift arc extinction is crucial for minimizing wear on the contacts and preventing potential damage to surrounding equipment.

Moreover, the contact box is designed to withstand high transient recovery voltages that occur immediately after current interruption. This capability is essential for maintaining insulation integrity and preventing restrikes, which could lead to equipment failure or safety hazards.

Voltage and Current Ratings

The 12~40.5kV contact box series is engineered to handle a wide range of voltage and current levels, making it versatile for various applications in power distribution and industrial settings. The voltage ratings typically span from 12kV to 40.5kV, covering medium to high voltage applications.

Current ratings for these contact boxes can vary significantly based on the specific model and intended use. Some units are designed to handle continuous currents of several thousand amperes, while others may be rated for even higher short-circuit currents for brief durations.

It's important to note that the voltage and current ratings are not arbitrary figures but are based on rigorous testing and compliance with international standards such as IEC 62271. These ratings ensure that the contact box can reliably perform its function under normal operating conditions and during fault scenarios, without compromising safety or integrity.

Safety Features of the 12~40.5kV Contact Box Series

Arc Flash Protection

Arc flash protection is a paramount safety feature of the 12~40.5kV contact box series. These devices are designed to mitigate the dangers associated with arc flash incidents, which can release enormous amounts of energy in the form of heat and light. The contact boxes incorporate several mechanisms to enhance arc flash protection:

Firstly, they utilize arc-resistant materials in their construction, which can withstand the intense heat and pressure generated during an arc flash event. This helps contain the arc within the contact box, preventing it from escaping and potentially harming nearby personnel or equipment.

Secondly, many models in the series feature rapid arc detection systems. These systems can identify the formation of an arc within milliseconds and trigger protective measures, such as initiating circuit interruption or activating additional safety devices.

Furthermore, the contact boxes are often designed with increased clearances and creepage distances, which reduce the likelihood of arc formation between live parts and grounded components. This design aspect significantly enhances the overall safety of the electrical system.

Insulation and Dielectric Strength

The insulation system and dielectric strength of the 12~40.5kV contact box series are critical factors in ensuring safety in high-voltage environments. These contact boxes employ advanced insulation materials and techniques to prevent electrical breakdown and maintain system integrity.

High-quality solid insulation materials, such as epoxy resins or advanced polymers, are often used to provide excellent dielectric properties and long-term reliability. These materials are carefully selected for their ability to withstand high electric field strengths and resist partial discharges.

In some models, SF6 gas or vacuum insulation is utilized, offering superior dielectric strength and arc-quenching capabilities. These insulation methods allow for more compact designs without compromising on safety or performance.

The contact boxes undergo rigorous dielectric testing to ensure they can withstand voltages well above their rated levels. This testing includes power frequency withstand tests and lightning impulse withstand tests, verifying the insulation system's ability to maintain its integrity under extreme conditions.

Fail-Safe Mechanisms

The 12~40.5kV contact box series incorporates various fail-safe mechanisms to ensure safety even in the event of component failure or abnormal operating conditions. These mechanisms are designed to prevent catastrophic failures and minimize the risk of electrical accidents.

One such mechanism is the incorporation of pressure relief devices. In the unlikely event of an internal fault causing a pressure build-up within the contact box, these devices safely vent the excess pressure, preventing explosive rupture of the enclosure.

Many models also feature interlocking systems that prevent unauthorized or unsafe operation. These interlocks ensure that the contact box can only be operated when it is safe to do so, preventing actions like opening the box while it's energized or closing it when there's a known fault.

Additionally, some contact boxes in the series are equipped with condition monitoring systems. These systems continuously assess the health of critical components, such as the insulation system or the main contacts. By detecting early signs of degradation or potential failures, these monitoring systems allow for proactive maintenance, further enhancing the overall safety and reliability of the electrical system.

Applications and Benefits in High-Voltage Environments

Power Distribution Systems

In power distribution systems, the 12~40.5kV contact box series plays a pivotal role in ensuring safe and reliable electricity supply. These contact boxes are typically installed in substations, switchgear, and distribution panels, where they serve as critical components for controlling and protecting power circuits.

One of the primary benefits of using these contact boxes in power distribution is their ability to quickly isolate faults. When a fault occurs in the system, the contact box can swiftly interrupt the current flow, preventing the fault from propagating and potentially damaging other equipment or causing widespread outages.

Moreover, the robust construction and high dielectric strength of these contact boxes make them ideal for outdoor installations in substations. They can withstand harsh environmental conditions, including extreme temperatures, humidity, and pollution, while maintaining their operational integrity.

The 12~40.5kV contact box series also contributes to the overall efficiency of power distribution systems. By providing reliable switching and protection, they help minimize downtime and reduce maintenance requirements, ultimately leading to improved system reliability and reduced operational costs.

Industrial Applications

In industrial settings, the 12~40.5kV contact box series finds extensive applications in various high-power processes and equipment. These contact boxes are crucial for ensuring the safe operation of large motors, furnaces, and other energy-intensive machinery commonly found in manufacturing plants, refineries, and mining operations.

One significant benefit of using these contact boxes in industrial applications is their ability to handle high inrush currents associated with starting large motors. The robust design of the contact boxes allows them to withstand these temporary high currents without damage, ensuring smooth and safe equipment start-up.

Furthermore, the arc quenching capabilities of the 12~40.5kV contact box series are particularly valuable in industrial environments where frequent switching operations occur. By effectively managing and extinguishing arcs, these contact boxes help prolong the life of the electrical equipment and reduce the risk of electrical fires.

The compact design of many models in this series is another advantage in industrial settings, where space is often at a premium. Despite their high voltage and current ratings, these contact boxes can be integrated into relatively small switchgear assemblies, allowing for efficient use of factory floor space.

Renewable Energy Integration

As the world transitions towards cleaner energy sources, the 12~40.5kV contact box series is playing an increasingly important role in renewable energy integration. These contact boxes are essential components in the electrical systems of wind farms, solar power plants, and other renewable energy installations.

In wind power applications, the contact boxes are used in turbine switchgear to control and protect the power output from individual turbines. Their ability to operate reliably in harsh offshore environments makes them particularly suitable for use in offshore wind farms.

For solar power plants, the 12~40.5kV contact box series is crucial for managing the connection between large-scale photovoltaic arrays and the grid. These contact boxes help ensure smooth power flow and provide protection against faults that can occur due to the variable nature of solar power generation.

The series also contributes to the stability and reliability of smart grids. As renewable energy sources introduce more variability into the power system, the fast-acting and reliable operation of these contact boxes becomes increasingly important for maintaining grid stability and managing power quality.

Conclusion

The 12~40.5kV contact box series represents a significant advancement in electrical safety technology for high-voltage environments. Through its robust construction, advanced insulation systems, and sophisticated arc quenching mechanisms, this series provides unparalleled protection against electrical hazards. Its versatility across power distribution, industrial applications, and renewable energy integration underscores its importance in modern electrical systems. By enhancing operational safety, improving system reliability, and supporting the transition to cleaner energy sources, the 12~40.5kV contact box series is not just a component but a cornerstone of safe and efficient high-voltage operations.
