How do I test an AC contactor?

Testing an AC contactor is a crucial procedure to ensure its proper functioning and reliability in electrical systems. To test an AC contactor, start by visually inspecting it for any signs of damage or wear. Then, use a multimeter to check for continuity across the contactor's terminals when it's both open and closed. Measure the coil resistance to verify it's within the manufacturer's specifications. Conduct an insulation resistance test to check for any breakdown in the contactor's insulation. Finally, perform a functional test by applying the rated voltage to the coil and observing if the contactor operates smoothly and makes proper contact. Remember to always follow safety protocols and consult the manufacturer's guidelines for specific testing procedures.

Understanding AC Contactors and Their Importance

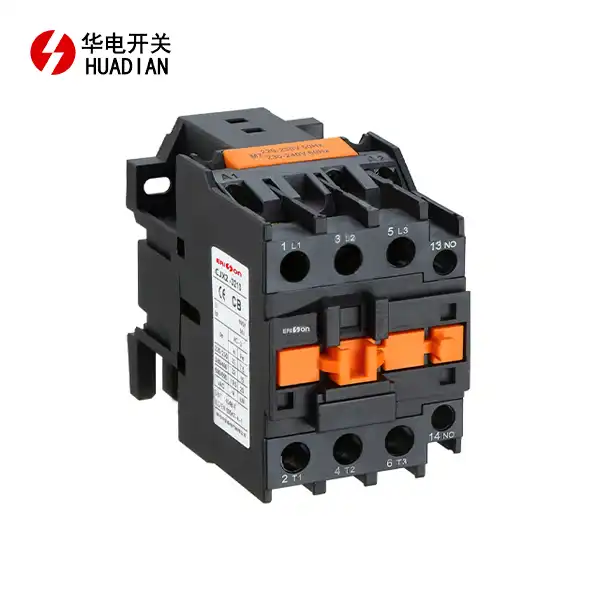

What is an AC Contactor?

An AC contactor is an essential electromagnetic switch used in electrical systems to control the flow of electricity to various devices and equipment. It consists of a coil and a set of contacts, which open or close when the coil is energized or de-energized. AC contactors are designed to handle high current loads and are commonly found in industrial, commercial, and residential applications.

The Role of AC Contactors in Electrical Systems

AC contactors play a vital role in electrical systems by providing a safe and efficient means of controlling power distribution. They act as intermediaries between power sources and electrical loads, allowing for remote operation and automation of various electrical processes. AC contactors are particularly useful in applications that require frequent switching of high-current loads, such as motors, lighting systems, and heating elements.

Why Regular Testing is Crucial?

Regular testing of AC contactors is paramount to maintaining the safety and reliability of electrical systems. Over time, contactors can experience wear and tear, which may lead to reduced performance or complete failure. By conducting routine tests, technicians can identify potential issues before they escalate into major problems, preventing unexpected downtime, equipment damage, and safety hazards. Regular testing also helps ensure compliance with electrical safety standards and regulations.

Preparing for AC Contactor Testing

Safety Precautions

Before beginning any testing procedures on AC contactors, it's crucial to prioritize safety. Always disconnect the power supply to the contactor and use appropriate personal protective equipment (PPE), including insulated gloves and safety glasses. Verify that the contactor is de-energized using a voltage tester before proceeding with any tests. It's also essential to be familiar with local electrical codes and safety regulations to ensure compliance throughout the testing process.

Tools and Equipment Needed

To conduct a comprehensive test of an AC contactor, you'll need several tools and pieces of equipment. These typically include:

- A digital multimeter capable of measuring resistance, continuity, and voltage

- An insulation resistance tester (megohmmeter)

- A power supply or contactor tester for functional testing

- Screwdrivers and wire strippers

- A notebook or digital device for recording test results

Ensure all testing equipment is properly calibrated and in good working condition before use.

Understanding Manufacturer Specifications

Each AC contactor model may have specific testing requirements and acceptable parameter ranges. Before testing, obtain and review the manufacturer's documentation for the particular contactor you're working with. This information will provide valuable insights into the expected coil resistance, operating voltage range, and other critical specifications. Familiarizing yourself with these details will help you interpret test results accurately and identify any deviations from normal operating parameters.

Step-by-Step AC Contactor Testing Process

Visual Inspection

Begin the testing process with a thorough visual inspection of the AC contactor. Look for signs of physical damage, such as cracks in the housing, burnt or discolored contacts, or loose connections. Check for any signs of overheating, corrosion, or excessive wear on the contactor's components. Ensure that all terminals are securely fastened and free from contamination. This initial visual assessment can often reveal obvious issues that may require immediate attention or replacement of the contactor.

Coil Resistance Measurement

Measuring the coil resistance is a crucial step in testing an AC contactor. Use a digital multimeter set to the appropriate resistance range and connect the probes to the coil terminals. Compare the measured resistance value to the manufacturer's specifications. A significant deviation from the expected resistance could indicate a problem with the coil, such as a short circuit or open winding. If the measured resistance is outside the acceptable range, the contactor may need to be replaced or repaired.

Contact Resistance Test

The contact resistance test assesses the quality of the electrical connection between the contactor's contacts when closed. Use a low-resistance ohmmeter or a specialized contact resistance tester for this measurement. Apply a small current through the closed contacts and measure the voltage drop across them. Calculate the contact resistance using Ohm's law. High contact resistance can lead to excessive heat generation and reduced efficiency. If the contact resistance exceeds the manufacturer's specified limits, it may be necessary to clean or replace the contacts.

Advanced Testing Techniques for AC Contactors

Insulation Resistance Testing

Insulation resistance testing, also known as megger testing, is crucial for assessing the integrity of the AC contactor's insulation. Use a megohmmeter to apply a high DC voltage between the contactor's electrically isolated parts, such as between the coil and contacts or between open contacts. Measure the resulting resistance, which should be in the megohm range. Low insulation resistance can indicate insulation breakdown, moisture ingress, or contamination. This test helps identify potential safety hazards and ensures the contactor can withstand its rated voltage without breakdown.

Pick-up and Drop-out Voltage Tests

Pick-up and drop-out voltage tests evaluate the contactor's operating characteristics. To perform these tests, gradually increase the voltage applied to the contactor's coil until the contacts close (pick-up voltage) and then decrease it until the contacts open (drop-out voltage). Record these voltages and compare them to the manufacturer's specifications. Deviations from the expected values may indicate issues with the contactor's magnetic circuit or mechanical components. These tests are essential for ensuring the contactor operates reliably within its designed voltage range.

Timing Tests

Timing tests measure the speed at which the contactor's contacts open and close. Use a specialized timing device or an oscilloscope to capture the time intervals between energizing the coil and contact closure (make time) and between de-energizing the coil and contact opening (break time). Compare these times to the manufacturer's specifications. Abnormal timing can indicate mechanical issues, such as worn springs or misaligned components. Proper timing is crucial for the contactor's performance, especially in applications requiring precise control or coordination with other devices.

Interpreting Test Results and Troubleshooting

Analyzing Test Data

After completing the various tests on the AC contactor, it's essential to carefully analyze the collected data. Compare all measured values against the manufacturer's specifications and industry standards. Look for any significant deviations or inconsistencies in the results. Pay particular attention to trends in the data, such as increasing contact resistance over time or decreasing insulation resistance. Proper analysis of test results can provide valuable insights into the contactor's condition and help predict potential future issues.

Common Issues and Their Indicators

Several common issues can affect AC contactors, each with its own set of indicators:

- Contact welding: Indicated by contacts that fail to open or have extremely low contact resistance

- Coil failure: Manifested through abnormal coil resistance or failure to operate at rated voltage

- Mechanical wear: Revealed by slow operating times or inconsistent contact closure

- Insulation breakdown: Detected through low insulation resistance measurements

- Overheating: Evidenced by discoloration of components or a burnt odor

Recognizing these indicators can help in diagnosing problems and determining appropriate corrective actions.

When to Replace vs. Repair?

The decision to replace or repair an AC contactor depends on several factors. Minor issues, such as loose connections or slightly pitted contacts, can often be addressed through cleaning and tightening. However, more severe problems like coil failure, significant contact erosion, or insulation breakdown typically warrant replacement. Consider the contactor's age, the cost of repairs versus replacement, and the criticality of the application. In many cases, replacing the entire contactor is more cost-effective and ensures greater reliability than attempting repairs on a worn or damaged unit.

Conclusion

Testing AC contactors is a vital aspect of maintaining electrical systems' safety and reliability. By following a comprehensive testing procedure, technicians can identify potential issues before they lead to system failures or safety hazards. Regular testing, combined with proper interpretation of results and timely maintenance or replacement, ensures that AC contactors continue to function efficiently and safely. As technology advances, staying updated with the latest testing techniques and equipment is crucial for electrical professionals. Remember that while testing is essential, it should always be performed with utmost attention to safety and in compliance with relevant standards and regulations.
