How Do I Install a JXF (JFF) Control Box?

Installing a JXF (JFF) control box requires careful attention to detail and adherence to safety protocols. Begin by disconnecting power to the area where you'll be working. Next, mount the control box securely on a stable surface, ensuring it's level and accessible. Connect the power supply wires to the designated terminals, following the manufacturer's wiring diagram. Install any necessary components like circuit breakers or switches within the box. Finally, connect the control wires to their respective terminals, double-check all connections, and close the box securely. Before powering on, perform a thorough inspection to ensure everything is correctly installed and all safety measures are in place.

Understanding JXF (JFF) Control Boxes

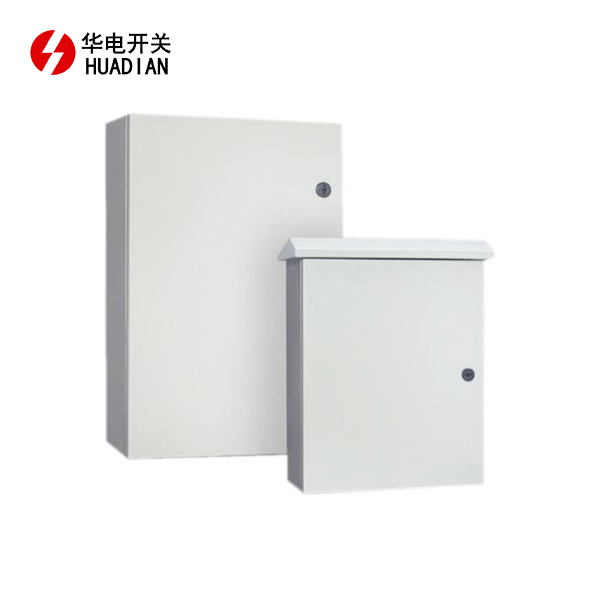

What is a JXF (JFF) Control Box?

A JXF (JFF) control box is a crucial component in electrical systems, designed to house and protect various control devices. These boxes are typically used in industrial settings, power distribution systems, and automation processes. The JXF (JFF) designation refers to a specific series of control boxes known for their durability, versatility, and compliance with international safety standards.

These control boxes are constructed using high-quality materials, often featuring a robust metal enclosure that provides protection against dust, moisture, and physical impacts. The interior of a JXF (JFF) control box is designed to accommodate a range of electrical components, including circuit breakers, contactors, relays, and terminal blocks.

Key Features of JXF (JFF) Control Boxes

JXF (JFF) control boxes boast several notable features that make them a popular choice in various industries:

- IP65 protection rating, ensuring resistance against dust and water ingress

- Modular design for easy customization and expansion

- High-quality powder coating for corrosion resistance

- Multiple knockout options for flexible cable entry

- Integrated mounting plate for secure component installation

- Compliance with IEC and other international standards

These features contribute to the reliability and longevity of JXF (JFF) control boxes, making them suitable for diverse applications across different industrial sectors.

Applications of JXF (JFF) Control Boxes

The versatility of JXF (JFF) control boxes allows for their use in a wide range of applications:

- Industrial machinery control systems

- Power distribution panels

- Automation and process control equipment

- HVAC control systems

- Telecommunications infrastructure

- Renewable energy installations

In each of these applications, JXF (JFF) control boxes provide a secure and organized housing for critical electrical components, ensuring smooth operation and easy maintenance of complex systems.

Preparing for Installation

Tools and Materials Needed

Before beginning the installation process, gather the following tools and materials:

- Screwdrivers (flathead and Phillips head)

- Wire strippers and cutters

- Multimeter for testing connections

- Level for accurate mounting

- Drill and appropriate bits for mounting holes

- Mounting screws and anchors

- Electrical tape and wire nuts

- Personal protective equipment (PPE) including safety glasses and insulated gloves

Having these tools readily available will streamline the installation process and ensure you're prepared for any challenges that may arise during the setup.

Safety Precautions

Safety should be the top priority when installing a JXF (JFF) control box. Adhere to these crucial safety precautions:

- Always disconnect power before beginning any work on electrical systems

- Use a voltage tester to confirm power is off before touching any wires

- Wear appropriate PPE throughout the installation process

- Follow local electrical codes and regulations

- Ensure proper grounding of the control box and its components

- Keep the work area clean and free of obstacles

- Never work alone on electrical installations; have a partner present for safety

By following these safety measures, you minimize the risk of accidents and ensure a secure installation environment.

Site Preparation

Proper site preparation is essential for a successful JXF (JFF) control box installation:

- Choose a location that is easily accessible for maintenance and operation

- Ensure the mounting surface is sturdy and can support the weight of the control box

- Clear the area of any obstructions that might interfere with the installation

- Verify that the chosen location meets environmental requirements (temperature, humidity, etc.)

- Plan the cable routing to and from the control box

- Mark the mounting points accurately using the control box as a template

Thorough site preparation will facilitate a smoother installation process and help avoid potential issues down the line.

Step-by-Step Installation Guide

Mounting the Control Box

The first step in installing a JXF (JFF) control box is securely mounting it to the prepared surface:

- Position the control box against the mounting surface and mark the mounting holes

- Drill pilot holes at the marked locations, using appropriate anchors if necessary

- Align the control box with the drilled holes and secure it using the mounting screws

- Use a level to ensure the box is perfectly straight and adjust if needed

- Tighten all mounting screws firmly, but be careful not to overtighten and damage the box

A properly mounted control box provides a stable foundation for the rest of the installation process.

Wiring and Connections

With the control box securely mounted, proceed with the wiring and connections:

- Review the wiring diagram provided with the JXF (JFF) control box

- Identify the correct cable entry points and remove the appropriate knockouts

- Install cable glands or conduit fittings to maintain the box's IP rating

- Strip the ends of the incoming power cables and control wires

- Connect the power supply wires to the main terminal block, ensuring proper polarity

- Install and wire any additional components like circuit breakers or contactors

- Connect control wires to their respective terminals according to the wiring diagram

Use wire nuts and electrical tape to insulate any exposed connections

- Organize and secure all wires using cable ties or wire management systems

Careful attention to detail during the wiring process is crucial for the safe and efficient operation of the control box.

Testing and Commissioning

After completing the wiring, it's essential to thoroughly test and commission the JXF (JFF) control box:

- Perform a visual inspection of all connections and components

- Use a multimeter to check for continuity and proper voltage levels

- Verify that all circuit breakers and switches are in the correct positions

- Close the control box cover securely

- Restore power to the system gradually, monitoring for any issues

- Test each control function to ensure proper operation

- Monitor the system for any unusual sounds, smells, or temperature increases

- Document all test results and system settings for future reference

Thorough testing and commissioning ensure that the JXF (JFF) control box is functioning correctly and safely before being put into regular operation.

Conclusion

Installing a JXF (JFF) control box is a critical assignment that requires cautious arranging, consideration to detail, and adherence to security protocols. By following the steps outlined in this direct, you can guarantee a effective establishment that gives dependable execution and protection for your electrical control systems. Keep in mind that appropriate maintenance and customary inspections are fundamental to keep your JXF (JFF) control box working ideally throughout its life expectancy. If you experience any challenges during the establishment handle or have concerns around your specific application, don't hesitate to counsel with a qualified electrician or the manufacturer's support team.
