Choosing the Best Power Cable for Industrial and Heavy-Duty Equipment

Selecting the right power cable for industrial and heavy-duty equipment is crucial for ensuring optimal performance, safety, and longevity of your machinery. The ideal power cable must withstand harsh environments, extreme temperatures, and constant mechanical stress while delivering reliable electrical power. Factors such as voltage requirements, current capacity, insulation type, and environmental conditions play pivotal roles in determining the most suitable cable. By understanding these elements and consulting with experts, you can make an informed decision that enhances your equipment's efficiency and minimizes downtime, ultimately boosting your industrial operations' productivity and safety.

Understanding Power Cable Specifications

Voltage Ratings and Their Importance

Voltage ratings are a fundamental aspect of power cable specifications. They indicate the maximum voltage a cable can safely handle without compromising its insulation or performance. Industrial equipment often operates at higher voltages than residential applications, necessitating cables with appropriate voltage ratings. Low-voltage cables typically range from 300V to 2000V, while medium-voltage cables can handle 2001V to 35,000V. High-voltage cables, used in specialized industrial settings, can manage voltages exceeding 35,000V. Choosing a cable with the correct voltage rating ensures safe operation and prevents electrical failures that could lead to equipment damage or workplace hazards.

Current Carrying Capacity

The current carrying capacity, or ampacity, of a power cable is another critical specification. It represents the maximum amount of electrical current a cable can safely conduct without overheating. Factors influencing ampacity include conductor size, insulation material, and ambient temperature. Larger conductor sizes generally allow for higher current capacities. However, it's essential to consider the specific application requirements and environmental conditions. Overloading a cable beyond its rated ampacity can lead to insulation breakdown, reduced lifespan, and potential fire hazards. Proper sizing ensures efficient power transmission and minimizes energy losses due to heat generation.

Insulation and Jacket Materials

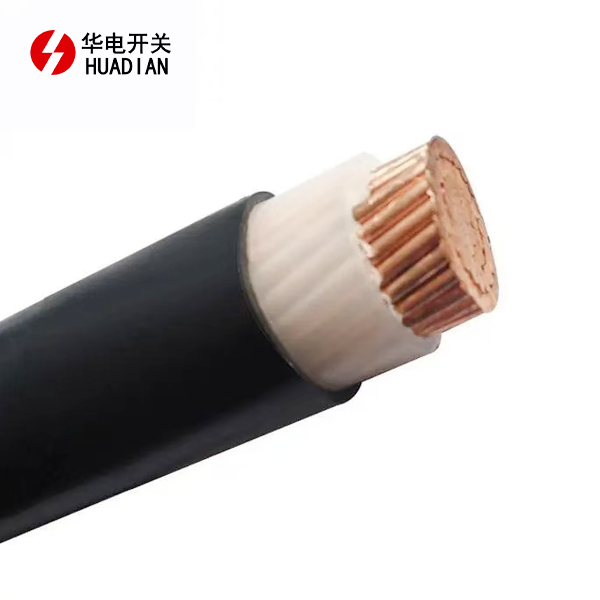

Insulation and jacket materials play a crucial role in a power cable's performance and durability. Common insulation materials include Cross-Linked Polyethylene (XLPE), Ethylene Propylene Rubber (EPR), and Polyvinyl Chloride (PVC). XLPE offers excellent electrical properties and thermal resistance, making it suitable for high-temperature applications. EPR provides superior flexibility and moisture resistance, ideal for wet environments. PVC is cost-effective and offers good mechanical protection but may have limitations in extreme temperatures. Jacket materials, such as neoprene or thermoplastic elastomers, provide additional protection against physical damage, UV radiation, and chemical exposure. Selecting the appropriate insulation and jacket combination ensures your power cable can withstand the specific environmental challenges of your industrial setting.

Environmental Considerations for Power Cable Selection

Temperature Extremes and Their Effects

Temperature extremes can significantly impact power cable performance and longevity. High temperatures can accelerate insulation degradation, reducing the cable's lifespan and potentially leading to premature failure. Conversely, extremely low temperatures can cause cable materials to become brittle, increasing the risk of cracking or breaking during installation or operation. When selecting a power cable for industrial applications, consider both the ambient temperature range and any localized heat sources near the cable's path. Look for cables with temperature ratings that exceed your expected operating conditions to ensure reliable performance. Some specialized cables incorporate materials like silicone rubber insulation, which can withstand temperatures from -55°C to 180°C, making them suitable for extreme temperature environments.

Moisture and Chemical Resistance

Many industrial environments expose power cables to moisture, oils, and corrosive chemicals. These elements can degrade standard cable materials, leading to insulation breakdown, corrosion of conductors, and eventual failure. When choosing a power cable for such environments, prioritize options with robust moisture and chemical resistance. Cables with ethylene propylene rubber (EPR) insulation often exhibit excellent resistance to water, oils, and many chemicals. For particularly harsh chemical environments, consider fluoropolymer-insulated cables, which offer exceptional resistance to a wide range of corrosive substances. Additionally, look for cables with sealed or welded jacket constructions that prevent moisture ingress and maintain the cable's integrity over time.

Mechanical Stress and Abrasion Protection

Industrial power cables are often subjected to significant mechanical stress, including bending, twisting, and abrasion. These forces can damage the cable's structure, compromising its electrical and mechanical properties. To mitigate these risks, select cables designed with reinforced constructions. Armored cables, featuring metallic or non-metallic armor layers, provide excellent protection against crushing and cutting forces. For applications involving frequent movement or flexing, such as in robotic systems or cable tracks, choose flexible cables with finely stranded conductors and specialized jacket materials that can withstand repeated bending cycles. Some cables also incorporate abrasion-resistant outer jackets made from materials like polyurethane, which can significantly extend the cable's service life in rough industrial environments.

Specialized Power Cables for Specific Applications

Mining and Offshore Industry Cables

The mining and offshore industries present unique challenges for power cables, including exposure to extreme environmental conditions, corrosive substances, and high mechanical stresses. Specialized cables for these sectors often feature robust construction with multiple layers of protection. Mining cables may incorporate flame-retardant and oil-resistant jackets, along with high-tensile strength armor to withstand the rigors of underground operations. Offshore cables, particularly those used in subsea applications, require exceptional water resistance and pressure tolerance. These cables often utilize lead sheathing or specialized polymer compounds to ensure long-term reliability in marine environments. Additionally, both mining and offshore cables frequently include integrated grounding conductors and redundant insulation layers to enhance safety and reliability in these high-risk environments.

Cables for Mobile and Portable Equipment

Mobile and portable industrial equipment, such as cranes, excavators, and welding machines, require power cables that can withstand frequent movement and harsh outdoor conditions. These cables must balance flexibility with durability to ensure reliable power transmission while resisting wear and tear. Rubber-jacketed cables are often preferred for their excellent flexibility and resistance to oils, abrasion, and weather exposure. Some specialized portable cables incorporate color-coded conductors or alphanumeric markings to facilitate quick and accurate connections in the field. For extreme flexibility requirements, extra-flexible cables with very fine stranding and special elastomeric compounds can maintain performance even under constant flexing and torsional stress.

High-Temperature and Fire-Resistant Cables

In industrial settings where high temperatures or fire risks are present, specialized cables are essential for maintaining safety and operational integrity. High-temperature cables often utilize silicone rubber or fluoropolymer insulations that can withstand continuous exposure to temperatures exceeding 150°C. These cables are crucial in applications near furnaces, boilers, or other heat-generating equipment. Fire-resistant cables are designed to maintain circuit integrity during a fire, allowing critical systems to continue functioning for a specified period. These cables typically incorporate mica tape wrappings and specialized compounds that form a ceramic char when exposed to flame, protecting the conductors. Some fire-resistant cables can maintain circuit integrity for up to 3 hours at temperatures over 900°C, ensuring crucial equipment remains operational during emergency situations.

Conclusion

Selecting the optimal power cable for industrial and heavy-duty equipment is a critical decision that impacts safety, performance, and operational efficiency. By carefully considering factors such as voltage requirements, current capacity, environmental conditions, and specific application needs, you can choose a cable that ensures reliable power transmission and longevity. Remember that while initial costs are important, the long-term benefits of a properly specified cable - including reduced maintenance, improved safety, and enhanced equipment performance - often outweigh the upfront investment. As industrial technologies continue to evolve, staying informed about the latest advancements in power cable design and materials will help you make the best choices for your specific industrial applications.
