Can Control Cables Be Used for Long-Distance Data Transmission?

Control cables can indeed be utilized for long-distance data transmission, but their effectiveness depends on various factors. These cables are specifically designed to transmit control signals and low-voltage power, making them suitable for certain types of data transmission over moderate distances. However, for truly long-distance data transmission, specialized data cables or fiber optic cables are often preferred due to their superior signal integrity and lower susceptibility to interference. The feasibility of using control cables for long-distance data transmission hinges on factors such as the required data rate, environmental conditions, signal type, and the specific cable construction. While control cables can be a cost-effective solution for some applications, it's crucial to carefully evaluate the requirements of your data transmission system to determine if control cables are the most appropriate choice.

Understanding Control Cables and Their Capabilities

What Are Control Cables?

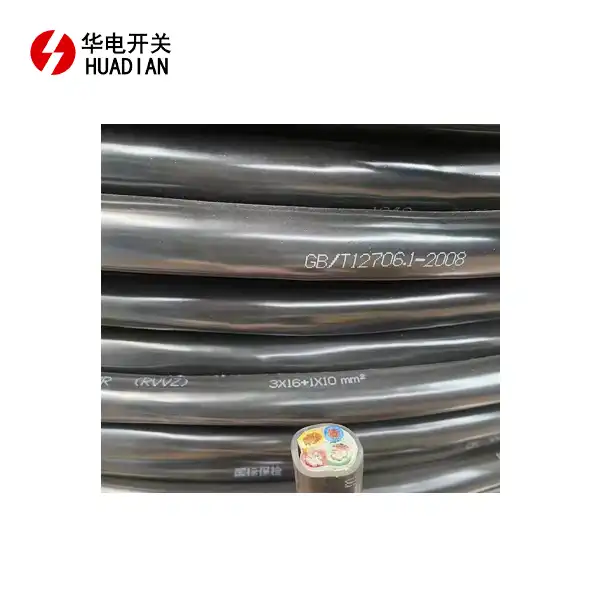

Control cables are specialized electrical cables designed to transmit control signals and low-voltage power in various industrial and commercial applications. These cables typically consist of multiple insulated conductors bundled together within an outer jacket. The construction of control cables can vary, with options including shielded or unshielded designs, different types of insulation materials, and varying numbers of conductors.

Key Features of Control Cables

Control cables possess several key features that make them suitable for specific applications. These include flexibility, durability, and resistance to environmental factors such as oil, chemicals, and temperature fluctuations. Many control cables are also designed with robust shielding to minimize electromagnetic interference (EMI) and radio frequency interference (RFI), which can be crucial in industrial settings where electrical noise is prevalent.

Typical Applications of Control Cables

Control cables find widespread use in various industries and applications. They are commonly employed in manufacturing facilities to connect control panels to machinery, in building automation systems to link sensors and actuators, and in transportation systems for signaling and communication. The versatility of control cables makes them a popular choice for applications requiring reliable signal transmission in challenging environments.

Factors Affecting Long-Distance Data Transmission with Control Cables

Signal Attenuation and Distance Limitations

One of the primary challenges in using control cables for long-distance data transmission is signal attenuation. As electrical signals travel through a cable, they naturally lose strength over distance due to the cable's resistance. This attenuation can lead to data errors or complete signal loss if the cable run exceeds the maximum recommended length for the specific cable type and signal characteristics. The extent of signal attenuation depends on factors such as the cable's conductor size, insulation quality, and the frequency of the transmitted signal.

Electromagnetic Interference (EMI) and Shielding

Electromagnetic interference can significantly impact the quality of data transmission, especially over long distances. Control cables used for data transmission must have adequate shielding to protect against EMI from nearby electrical equipment, power lines, or other sources of electromagnetic noise. The effectiveness of the shielding becomes increasingly important as the cable length increases, as longer runs provide more opportunities for interference to affect the signal integrity.

Data Rate and Bandwidth Considerations

The data rate and bandwidth requirements of the transmission system play a crucial role in determining whether control cables are suitable for long-distance applications. Control cables are typically designed for lower frequency signals and may not support the high bandwidths required for certain types of data transmission. As the required data rate increases, the maximum distance over which the cable can reliably transmit data decreases. This limitation is particularly relevant for high-speed digital communication protocols that require substantial bandwidth.

Alternatives and Considerations for Long-Distance Data Transmission

Fiber Optic Cables: The Gold Standard

When it comes to long-distance data transmission, fiber optic cables are often considered the gold standard. These cables use light to transmit data, which allows for much higher bandwidth and significantly longer transmission distances compared to electrical cables. Fiber optic cables are immune to electromagnetic interference and can transmit data over distances of many kilometers without the need for signal amplification. While the initial cost of fiber optic infrastructure may be higher, it offers unparalleled performance for long-distance, high-speed data transmission.

Specialized Data Cables and Ethernet Solutions

For applications that require electrical-based transmission but exceed the capabilities of standard control cables, specialized data cables and Ethernet solutions are available. These include Category 5e, 6, and 6a cables for Ethernet networks, which are designed to support high-speed data transmission over moderate distances. For industrial applications requiring longer runs, industrial Ethernet cables with enhanced shielding and rugged construction can provide a balance between performance and distance.

Signal Boosters and Repeaters

In scenarios where control cables must be used for longer distances than their specifications allow, signal boosters or repeaters can be employed to extend the transmission range. These devices amplify and clean up the signal at intervals along the cable run, effectively breaking the long distance into several shorter segments. While this approach can extend the usable length of control cables for data transmission, it introduces additional complexity and potential points of failure in the system.

Conclusion

Whereas control cables can be utilized for data transmission over moderate distances, their appropriateness for long-distance applications is restricted by components such as signal weakening, electromagnetic impedances, and bandwidth limitations. For genuinely long-distance data transmission, choices like fiber optic cables or specialized data cables are frequently more suitable. In any case, in certain industrial settings where control cables are already in utilize and the data transmission requirements are modest, they may give a cost-effective arrangement for integrating data communication into existing systems. Eventually, the choice to utilize control cables for long-distance data transmission should be based on a cautious assessment of the particular requirements of the application, counting remove, data rate, natural conditions, and budget contemplations.
