Can a High Voltage Vacuum Load Switch and Fuse Combination replace traditional circuit breakers?

High voltage vacuum load switch and fuse combinations, such as the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances, are increasingly becoming viable alternatives to traditional circuit breakers in certain applications. While they may not completely replace circuit breakers in all scenarios, these innovative devices offer unique advantages in specific contexts. The FZRN25A-12D combines the functionality of a vacuum load switch with fuse protection, providing a compact and cost-effective solution for medium voltage power distribution systems. This combination can effectively handle load switching and fault protection duties, making it suitable for various industrial and utility applications where space constraints and economic considerations are paramount.

What is FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination?

Components and Design

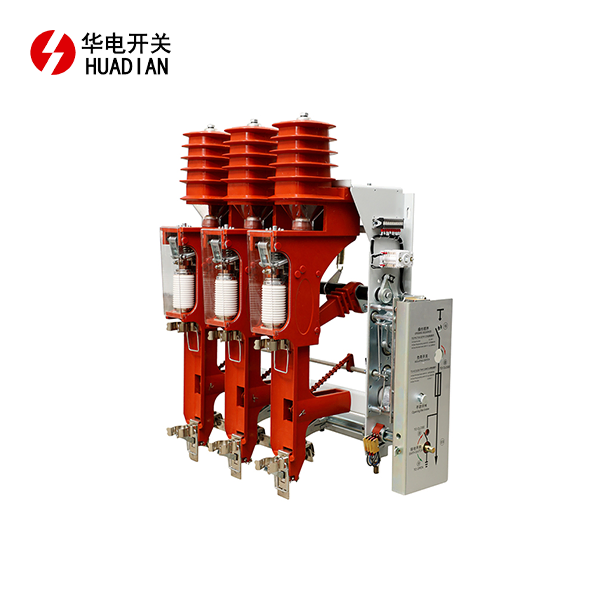

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination is an integrated electrical device designed for medium voltage power systems. It consists of two primary components: a vacuum load switch and a high-voltage fuse. The vacuum load switch utilizes vacuum interrupter technology, which provides excellent insulation and arc-quenching capabilities. The high-voltage fuse is carefully selected to complement the load switch, offering fast-acting protection against overcurrents and short circuits.

The design of the FZRN25A-12D is compact and modular, allowing for easy installation and maintenance. The vacuum interrupter is housed in a sealed chamber, ensuring long-term reliability and minimal environmental impact. The fuse is typically mounted in a separate compartment, accessible for inspection and replacement when necessary. This integrated design approach results in a space-efficient solution that can be particularly beneficial in applications where real estate is at a premium.

Operating Principles

The FZRN25A-12D operates on a straightforward principle. During normal conditions, the vacuum load switch remains closed, allowing current to flow through the circuit. When switching operations are required, the vacuum interrupter opens or closes, effectively controlling the flow of electricity. The vacuum environment within the interrupter chamber facilitates rapid arc extinction, minimizing wear and extending the device's operational life.

In the event of a fault condition, such as an overcurrent or short circuit, the high-voltage fuse comes into play. The fuse element melts and interrupts the circuit, protecting downstream equipment from potentially damaging currents. This dual-function approach combines the benefits of a load break switch with the protective capabilities of a fuse, offering a comprehensive solution for many power distribution scenarios.

Applications and Use Cases

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances finds applications in various industrial and utility settings. It is particularly well-suited for use in medium voltage distribution systems, ranging from 3.6 kV to 40.5 kV. Common applications include:

- Industrial power distribution systems

- Renewable energy installations, such as wind and solar farms

- Mining and petrochemical facilities

- Data centers and critical infrastructure

- Distribution transformer protection

- Switchgear and ring main units

In these environments, the FZRN25A-12D offers a balance of functionality, reliability, and cost-effectiveness. Its ability to handle both load switching and fault protection makes it an attractive option for many system designers and operators looking to optimize their electrical infrastructure.

Comparing FZRN25A-12D to Traditional Circuit Breakers

Advantages of the FZRN25A-12D

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination offers several advantages over traditional circuit breakers in certain applications:

- Compact Design: The integrated nature of the FZRN25A-12D results in a smaller footprint compared to separate circuit breaker and disconnect switch configurations. This space-saving feature is particularly valuable in confined substations or industrial settings where real estate is limited.

- Cost-Effectiveness: Generally, the combination of a vacuum load switch and fuse is more economical than a full-featured circuit breaker. This can lead to significant cost savings, especially in large-scale installations or projects with budget constraints.

- Simplified Maintenance: The FZRN25A-12D typically requires less maintenance than traditional circuit breakers. The vacuum interrupter technology is inherently more reliable and less prone to wear, reducing the frequency of inspections and servicing.

- Fast Fault Clearing: High-voltage fuses can interrupt fault currents more quickly than many circuit breakers, providing enhanced protection for sensitive equipment downstream.

- Reliable Operation: Vacuum interrupter technology offers excellent insulation properties and arc-quenching capabilities, ensuring consistent performance over the device's lifespan.

Limitations and Considerations

While the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances offers numerous benefits, it's essential to consider its limitations when comparing it to traditional circuit breakers:

- Limited Reclosing Capability: Unlike circuit breakers, which can be reclosed after a fault, fuses must be replaced once they've operated. This can lead to longer downtime in some scenarios.

- Coordination Challenges: Achieving proper coordination with other protective devices in the system may be more complex when using fuse-based protection.

- Lack of Advanced Features: Traditional circuit breakers often offer advanced features such as adjustable trip settings, event logging, and remote operation capabilities, which may not be available with the FZRN25A-12D.

- Current Limitations: Fuses have specific current ratings and interrupting capacities, which may limit their applicability in high-current applications compared to some circuit breakers.

- Environmental Considerations: In extreme environmental conditions, such as high-pollution areas or locations with frequent seismic activity, traditional circuit breakers might offer more robust performance.

Performance Comparison

When comparing the performance of the FZRN25A-12D to traditional circuit breakers, several factors come into play:

- Interrupting Time: The FZRN25A-12D, with its fuse-based protection, typically offers faster fault interruption times than many circuit breakers, especially in high-current fault scenarios.

- Reliability: Both technologies can offer high reliability when properly maintained. However, the simplicity of the FZRN25A-12D's design may lead to fewer potential points of failure.

- Operational Life: Vacuum interrupters generally have a longer operational life compared to the mechanical contacts in traditional circuit breakers, potentially reducing long-term maintenance costs.

- Flexibility: Traditional circuit breakers often provide more flexibility in terms of adjustable settings and protection schemes, which can be advantageous in complex power systems.

- Arc Flash Mitigation: The fast-acting nature of fuses in the FZRN25A-12D can help reduce arc flash hazards, potentially improving safety in some applications.

Ultimately, the choice between the FZRN25A-12D and traditional circuit breakers depends on the specific requirements of the application, including factors such as system voltage, available fault current, space constraints, and operational needs.

Integration and Implementation Considerations

System Design and Compatibility

Integrating the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances into an existing or new electrical system requires careful consideration of various factors:

- Voltage and Current Ratings: Ensure that the FZRN25A-12D's ratings match the system requirements, including nominal voltage, maximum continuous current, and short-circuit current withstand capabilities.

- Coordination Studies: Conduct comprehensive protection coordination studies to ensure proper selectivity between the FZRN25A-12D and other protective devices in the system.

- Physical Integration: Consider the device's dimensions and mounting requirements when planning its installation within switchgear or other enclosures.

- Environmental Factors: Evaluate the operating environment, including temperature, humidity, and pollution levels, to ensure the FZRN25A-12D is suitable for the intended application.

- Auxiliary Systems: Plan for any necessary auxiliary systems, such as control power supplies or monitoring equipment, that may be required for proper operation.

Installation and Maintenance Procedures

Proper installation and maintenance are crucial for ensuring the reliable operation of the FZRN25A-12D:

Installation:

- Follow manufacturer guidelines for handling and mounting the device.

- Ensure proper electrical connections, including primary and auxiliary contacts.

- Verify correct fuse selection and installation.

- Conduct thorough pre-commissioning tests, including insulation resistance and contact resistance measurements.

Maintenance:

- Establish a regular inspection schedule to check for signs of wear or degradation.

- Periodically verify the integrity of electrical connections and tighten if necessary.

- Inspect fuses for any signs of thermal stress or degradation.

- Conduct operational tests to ensure proper functioning of the vacuum interrupter.

- Keep detailed records of maintenance activities and any observed anomalies.

Safety Considerations and Best Practices

Implementing the FZRN25A-12D requires adherence to stringent safety protocols:

- Personal Protective Equipment (PPE): Ensure that personnel wear appropriate PPE when working on or near the device, including arc-rated clothing and face shields.

- Lockout/Tagout Procedures: Develop and strictly enforce lockout/tagout procedures to prevent accidental energization during maintenance or repair activities.

- Training: Provide comprehensive training to personnel on the operation, maintenance, and safety aspects of the FZRN25A-12D.

- Emergency Response: Establish clear emergency response procedures in case of equipment failure or accidents.

- Documentation: Maintain up-to-date documentation, including operating manuals, single-line diagrams, and safety procedures, readily accessible to authorized personnel.

- Regular Audits: Conduct periodic safety audits to ensure compliance with established procedures and identify areas for improvement.

By carefully considering these integration and implementation aspects, organizations can maximize the benefits of the FZRN25A-12D while ensuring safe and reliable operation within their electrical systems.

Conclusion

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances presents a compelling alternative to traditional circuit breakers in specific applications. While it may not completely replace circuit breakers across all scenarios, its unique combination of compact design, cost-effectiveness, and reliable performance makes it an attractive option for many medium voltage power distribution systems. By carefully evaluating system requirements, understanding the device's capabilities and limitations, and implementing proper installation and maintenance procedures, organizations can leverage the FZRN25A-12D to enhance their electrical infrastructure's efficiency and reliability.
