Can a DFW10-12 Cable Branch Box handle high-voltage applications?

The DFW10-12 cable branch box is indeed capable of handling high-voltage applications, making it a versatile and robust solution for various electrical distribution needs. Designed to withstand voltages up to 12kV, this cable branch box is specifically engineered to manage and distribute power in medium-voltage networks. Its robust construction, coupled with advanced insulation technologies, ensures safe and efficient operation in demanding electrical environments. The DFW10-12's ability to handle high-voltage applications makes it an ideal choice for industrial facilities, power distribution networks, and other settings where reliable medium-voltage power distribution is crucial.

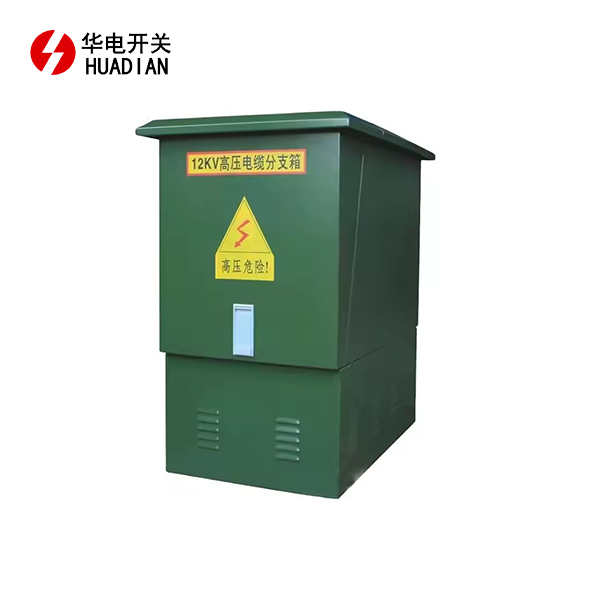

Understanding the DFW10-12 Cable Branch Box

Design and Construction

The DFW10-12 cable branch box is meticulously engineered to meet the rigorous demands of high-voltage applications. Its design incorporates several key features that contribute to its performance and reliability:

- Robust Enclosure: The box is typically constructed from high-grade, corrosion-resistant materials such as stainless steel or reinforced polymers. This ensures durability and protection against environmental factors.

- Insulation: Advanced insulation materials and techniques are employed to prevent electrical breakdown and ensure safe operation at high voltages.

- Compact Design: Despite its high-voltage capabilities, the DFW10-12 maintains a relatively compact form factor, making it suitable for installations where space is at a premium.

Technical Specifications

The DFW10-12 cable branch box boasts impressive technical specifications that enable its high-voltage performance:

- Rated Voltage: Up to 12kV

- Insulation Level: Typically 28/75kV

- Rated Current: Varies by model, but often ranges from 630A to 1250A

- Short-time Withstand Current: Usually around 25kA for 1 second

- Protection Class: IP54 or higher, depending on the specific model and intended application

Safety Features

Safety is paramount in high-voltage applications, and the DFW10-12 cable branch box incorporates several features to ensure secure operation:

- Interlocking Mechanisms: Prevent access to live parts during operation

- Earthing Switches: Provide additional safety during maintenance

- Arc-resistant Design: Minimizes the risk of arc flash incidents

- Pressure Relief Valves: Safely release internal pressure in case of a fault

Applications of the DFW10-12 Cable Branch Box

Industrial Settings

The DFW10-12 cable branch box finds extensive use in various industrial environments where high-voltage power distribution is essential:

- Manufacturing Plants: Ensures stable and efficient power distribution to support the operation of heavy machinery and equipment.

- Chemical Processing Facilities: Delivers a reliable and safe power supply to maintain smooth operations in hazardous chemical environments.

- Mining Operations: Provides robust power solutions for reliable operations in the demanding conditions of underground and open-pit mines.

- Steel Mills: Facilitates seamless power distribution to meet the high energy demands of steel production processes.

Utility Infrastructure

Power utility companies often utilize the DFW10-12 cable branch box in their distribution networks:

- Substations: Essential for reducing high voltage to safe levels, ensuring efficient local power distribution to communities.

- Underground Distribution Networks: Enables reliable power distribution through underground systems, ensuring stability in urban areas.

- Renewable Energy Integration: Facilitates the seamless connection of renewable energy sources like solar and wind to the grid.

Commercial and Institutional Applications

Large commercial and institutional facilities also benefit from the DFW10-12's capabilities:

- Hospitals: Guarantees continuous power for essential medical equipment, ensuring patient safety and operational efficiency.

- Data Centers: Delivers stable power to support high-performance servers and cooling systems, maintaining uptime.

- Shopping Malls: Distributes power effectively across large retail areas, supporting lighting, HVAC, and other systems.

- Educational Institutions: Supplies reliable power for various campus needs, from classrooms to administrative offices.

Advantages of Using DFW10-12 Cable Branch Box in High-Voltage Applications

Reliability and Durability

The DFW10-12 cable branch box offers exceptional reliability and durability in high-voltage environments:

- Long Operational Lifespan: Built to last, providing reliable service for many years in demanding high-voltage environments.

- Minimal Maintenance Requirements: Designed for low-maintenance operation, minimizing disruptions and reducing overall maintenance costs.

- Resistance to Environmental Factors: Capable of enduring extreme temperatures, humidity, and other harsh environmental conditions without performance loss.

Flexibility and Scalability

The DFW10-12 cable branch box provides flexibility in system design and scalability for future expansion:

- Modular Design: Enables seamless integration with current systems, simplifying upgrades and adjustments as needed.

- Expandability: Easily accommodates future power demands by adding new branches to the existing setup.

- Customization Options: Offered in various configurations, tailored to suit unique project and application requirements.

Cost-Effectiveness

Despite its advanced capabilities, the DFW10-12 offers cost advantages in high-voltage applications:

Reduced Installation Costs: Its compact, user-friendly design simplifies installation, lowering overall labor and setup expenses.

Lower Maintenance Costs: Durable and dependable, requiring less frequent repairs and minimizing long-term maintenance expenditures.

Energy Efficiency: Designed with high-quality components to reduce power losses, leading to lower operational energy costs.

Conclusion

The DFW10-12 cable branch box is indeed a formidable solution for high-voltage applications, offering a blend of performance, safety, and reliability. Its robust design, impressive technical specifications, and versatile applications make it an excellent choice for industries, utilities, and large-scale facilities requiring efficient medium-voltage power distribution. By leveraging the advantages of the DFW10-12, organizations can ensure a stable and safe electrical infrastructure, supporting their operations and growth in an increasingly power-dependent world.
