Can a 40.5kV Insulation Barrier be Used in Outdoor Environments?

Yes, a 40.5kV insulation barrier can indeed be used in outdoor environments, provided it meets specific design criteria and undergoes proper installation and maintenance. These barriers are engineered to withstand various environmental factors, including temperature fluctuations, humidity, UV radiation, and pollution. Manufacturers typically construct these barriers using robust materials like epoxy resin or silicone rubber, which offer excellent insulation properties and weather resistance. However, it's crucial to select a barrier specifically rated for outdoor use and ensure regular inspections and maintenance to guarantee its long-term effectiveness in protecting electrical equipment from moisture, contaminants, and other outdoor challenges.

Understanding 40.5kV Insulation Barriers

What is a 40.5kV Insulation Barrier?

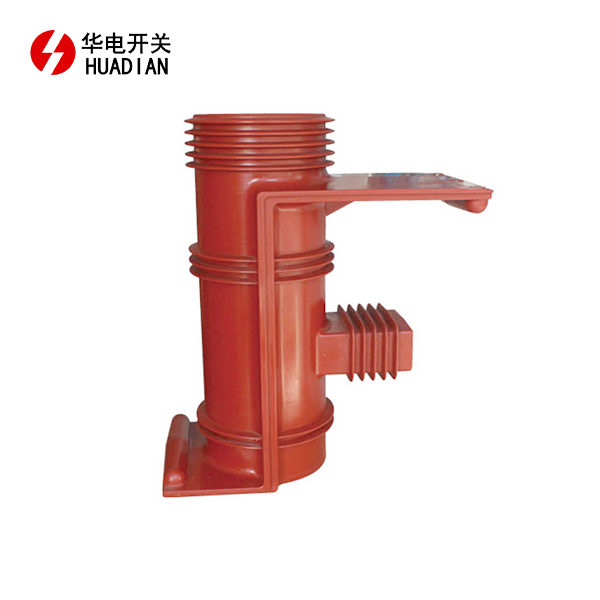

A 40.5kV insulation barrier is a critical component in medium-voltage electrical systems, designed to provide electrical isolation and protection. These barriers are typically constructed from high-quality insulating materials capable of withstanding voltage levels up to 40.5kV. The primary function of these barriers is to prevent electrical arcing, ensure safe operation of equipment, and protect personnel from potential electrical hazards.

Key Components of 40.5kV Insulation Barriers

The effectiveness of a 40.5kV insulation barrier relies on several key components. The main insulating material, often composed of epoxy resin or silicone rubber, forms the core of the barrier. This material is engineered to have high dielectric strength and excellent thermal properties. Additionally, these barriers may incorporate features such as creepage extenders, which increase the surface distance between conductive parts, enhancing their insulation capabilities. Some advanced designs also include embedded sensors for real-time monitoring of the barrier's performance and condition.

Applications of 40.5kV Insulation Barriers

40.5kV insulation barriers find extensive applications in various sectors of the power industry. They are commonly used in switchgear, transformers, and other high-voltage equipment in substations. These barriers play a crucial role in renewable energy installations, particularly in wind turbines and solar power plants, where they protect sensitive components from electrical stress. In industrial settings, 40.5kV insulation barriers are essential for safeguarding motor control centers and distribution systems, ensuring uninterrupted power supply and operational safety.

Outdoor Use Considerations for 40.5kV Insulation Barriers

Environmental Challenges

When considering the use of 40.5kV insulation barriers in outdoor environments, it's essential to account for various environmental challenges. Exposure to UV radiation can degrade certain insulating materials over time, potentially compromising their effectiveness. Fluctuating temperatures and humidity levels can lead to thermal expansion and contraction, which may affect the barrier's structural integrity. Additionally, outdoor environments often present challenges such as airborne pollutants, salt spray in coastal areas, and the accumulation of dust or ice, all of which can impact the barrier's performance.

Material Selection for Outdoor Applications

Choosing the right materials for outdoor 40.5kV insulation barriers is paramount to ensure their longevity and reliability. Hydrophobic materials, such as certain grades of silicone rubber, are often preferred for their ability to repel water and maintain insulation properties even in wet conditions. Some manufacturers incorporate UV stabilizers and anti-tracking additives into their insulation compounds to enhance resistance to environmental degradation. Advanced composite materials that combine the benefits of different insulating properties are also gaining popularity for outdoor applications, offering improved resistance to weathering and electrical stress.

Design Adaptations for Outdoor Use

To optimize 40.5kV insulation barriers for outdoor use, manufacturers often implement specific design adaptations. These may include increased creepage distances to account for pollution accumulation, strategically placed sheds or fins to improve water runoff, and enhanced sealing techniques to prevent moisture ingress. Some designs incorporate self-cleaning surfaces that help maintain insulation performance by shedding contaminants. Additionally, modular designs that allow for easy replacement of degraded components can significantly extend the overall lifespan of the insulation system in harsh outdoor environments.

Maintenance and Monitoring of Outdoor 40.5kV Insulation Barriers

Regular Inspection Protocols

Implementing a robust inspection protocol is crucial for maintaining the integrity of outdoor 40.5kV insulation barriers. Regular visual inspections can help identify early signs of degradation, such as surface cracks, discoloration, or erosion. Infrared thermography is an effective non-invasive technique for detecting hot spots that may indicate insulation failures. Periodic electrical tests, including partial discharge measurements and insulation resistance tests, provide valuable insights into the barrier's condition. Establishing a comprehensive inspection schedule, tailored to the specific environmental conditions and usage patterns, is essential for proactive maintenance.

Cleaning and Maintenance Techniques

Proper cleaning and maintenance are vital for preserving the performance of outdoor 40.5kV insulation barriers. Gentle cleaning methods, using appropriate non-abrasive cleaners and soft brushes, help remove accumulated dirt and contaminants without damaging the insulation surface. In areas prone to heavy pollution or salt deposits, more frequent cleaning may be necessary. Application of specialized coatings or sealants can help restore and enhance the hydrophobic properties of aged insulation surfaces. It's important to follow manufacturer-recommended maintenance procedures and use only approved cleaning agents to avoid inadvertently compromising the insulation properties.

Advanced Monitoring Systems

The integration of advanced monitoring systems can significantly enhance the reliability and longevity of outdoor 40.5kV insulation barriers. Online monitoring technologies, such as continuous partial discharge detection and leakage current monitoring, provide real-time insights into the barrier's performance. Some systems incorporate environmental sensors to correlate insulation behavior with specific weather conditions. Data analytics and predictive maintenance algorithms can help identify potential issues before they escalate, allowing for timely interventions. These advanced monitoring solutions not only improve the reliability of the insulation system but also contribute to optimized maintenance schedules and reduced downtime.

Conclusion

In conclusion, 40.5kV insulation barriers can be effectively used in outdoor environments when proper considerations are made in their design, material selection, and maintenance. The key to successful outdoor application lies in understanding the environmental challenges, selecting appropriate materials, and implementing robust maintenance and monitoring strategies. By adhering to these principles, power system operators can ensure the longevity and reliability of their outdoor insulation systems, contributing to safer and more efficient electrical infrastructure. As technology continues to advance, we can expect even more innovative solutions that will further enhance the performance of outdoor insulation barriers in challenging environments.
