Understanding Metal Oxide Arresters with All-Insulated Compound Coat
Composition and Structure

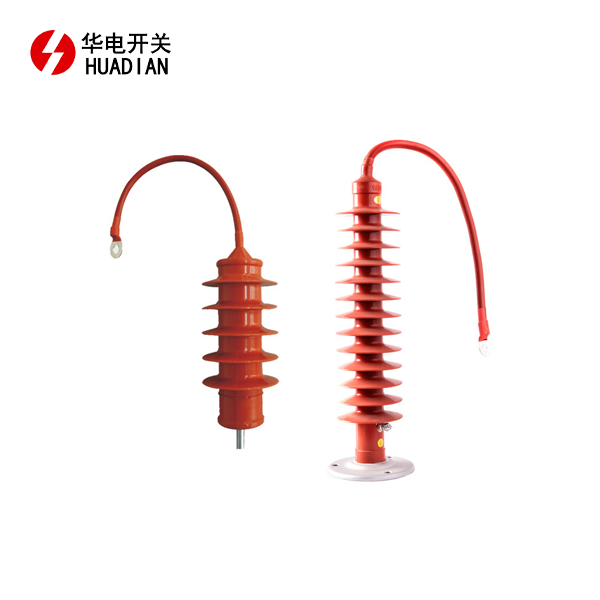

Metal oxide arresters with all-insulated compound coat are sophisticated devices designed to protect electrical systems from voltage surges and transients. At their core, these arresters utilize zinc oxide (ZnO) varistors, which are ceramic semiconductors with non-linear voltage-current characteristics. The ZnO discs are stacked in series and encased in a robust housing made of polymer materials.
The all-insulated compound coat is a key feature that sets these arresters apart. This coat is typically composed of silicone rubber or other advanced polymeric materials. It completely encapsulates the internal components, providing a seamless and uniform insulation layer. This design eliminates air gaps and potential weak points in the insulation, enhancing the overall performance and reliability of the arrester.
Operating Principles
Metal oxide arresters with all-insulated compound coat operate on the principle of voltage-dependent resistance. Under normal operating conditions, the arrester exhibits high resistance, effectively acting as an open circuit. However, when a voltage surge occurs, the resistance of the ZnO discs decreases rapidly, allowing the excess current to flow through the arrester and be safely diverted to ground.
The all-insulated compound coat plays a crucial role in this process. It ensures uniform voltage distribution across the ZnO discs, preventing localized stress and potential breakdown. Additionally, the coat provides excellent heat dissipation properties, allowing the arrester to handle multiple surge events without compromising its performance.
Applications in Electrical Systems
These advanced arresters find wide-ranging applications across various sectors of the electrical industry. They are commonly used in power transmission and distribution networks, substations, and industrial facilities. Their compact size and superior performance make them ideal for protecting sensitive equipment such as transformers, switchgear, and control systems.
In renewable energy installations, such as solar farms and wind turbines, metal oxide arresters with all-insulated compound coat play a vital role in safeguarding expensive inverters and other electronic components from lightning-induced surges. Their ability to withstand harsh environmental conditions makes them particularly suitable for outdoor applications.
Key Advantages of Metal Oxide Arresters with All-Insulated Compound Coat
Enhanced Insulation Properties
The all-insulated compound coat provides superior insulation characteristics compared to traditional designs. This seamless insulation layer eliminates potential weak points and air gaps, significantly reducing the risk of partial discharges and surface flashovers. The enhanced insulation properties contribute to improved reliability and longer service life of the arrester.
Moreover, the uniform insulation provided by the compound coat ensures even voltage distribution across the ZnO discs. This prevents localized stress concentrations that could lead to premature aging or failure of the arrester. The result is a more stable and predictable performance over the entire lifespan of the device.
Improved Thermal Management
Effective heat dissipation is crucial for the proper functioning of surge arresters. Metal oxide arresters with all-insulated compound coat excel in this aspect. The compound coat material is specifically designed to have excellent thermal conductivity, allowing for efficient heat transfer from the internal components to the external environment.
This improved thermal management capability enables the arrester to handle multiple surge events in quick succession without overheating. It also contributes to the device's ability to operate reliably in high-temperature environments, making it suitable for a wide range of applications in various climatic conditions.
Enhanced Environmental Protection
The all-insulated compound coat acts as a protective barrier against environmental factors that could potentially degrade the arrester's performance. It provides excellent resistance to moisture ingress, preventing internal corrosion and maintaining the integrity of the ZnO discs. This feature is particularly beneficial in coastal areas or regions with high humidity levels.
Additionally, the coat offers protection against UV radiation, which can cause degradation of polymer materials over time. This UV resistance ensures that the arrester maintains its mechanical and electrical properties even when exposed to direct sunlight for extended periods. The enhanced environmental protection translates to increased reliability and reduced maintenance requirements in outdoor installations.
Performance Characteristics and Long-term Reliability
Superior Surge Handling Capability
Metal oxide arresters with all-insulated compound coat demonstrate exceptional surge handling capabilities. The advanced design allows for rapid response to voltage surges, effectively clamping the voltage to a safe level within nanoseconds. This quick response time is crucial in protecting sensitive electronic equipment from damaging transients.
Furthermore, these arresters exhibit excellent energy absorption capacity. The combination of high-quality ZnO discs and the all-insulated compound coat enables them to withstand multiple high-energy surge events without degradation in performance. This robust surge handling capability ensures reliable protection even in environments prone to frequent lightning strikes or switching surges.
Stable Electrical Characteristics
One of the key advantages of metal oxide arresters with all-insulated compound coat is their stable electrical characteristics over time. The uniform insulation provided by the compound coat helps maintain consistent voltage distribution across the ZnO discs, preventing localized aging effects. This results in a more predictable and reliable performance throughout the arrester's service life.
The stable electrical characteristics are further enhanced by the arrester's resistance to partial discharges. The seamless insulation eliminates potential air gaps or voids that could lead to internal discharges, which are a common cause of gradual degradation in traditional arresters. This feature contributes to the long-term reliability and consistent protection level of the device.
Extended Service Life and Reduced Maintenance
Metal oxide arresters with all-insulated compound coat are designed for longevity and minimal maintenance requirements. The superior environmental protection offered by the compound coat significantly reduces the risk of internal contamination or moisture ingress, which are common causes of arrester failure. This enhanced protection translates to an extended service life, often exceeding 20 years in typical applications.
The reduced maintenance needs are a direct result of the arrester's robust design and stable performance characteristics. Unlike some traditional arresters that require periodic testing or replacement, these advanced devices can operate reliably for extended periods with minimal intervention. This feature not only reduces operational costs but also improves the overall reliability of the electrical system they protect.
Conclusion
Metal oxide arresters with all-insulated compound coat represent a significant advancement in surge protection technology. Their superior insulation properties, improved thermal management, and enhanced environmental protection make them an ideal choice for a wide range of electrical applications. The exceptional surge handling capability, stable electrical characteristics, and extended service life of these arresters contribute to increased system reliability and reduced maintenance costs. As electrical systems continue to evolve and become more complex, the role of these advanced arresters in safeguarding critical infrastructure and sensitive equipment becomes increasingly important.
