ZN63A(VS1)-24/GL Isolated Handcart
**Rated Current:** This handcart can handle a continuous current of up to 630 A, making it suitable for various operational demands.
**Tripping Capacity:** With a tripping capacity of 25 kA, the circuit breaker effectively protects your system by quickly isolating faults.
**Tripping Time:** The device boasts a swift tripping time of less than 0.1 seconds, minimizing downtime during fault conditions.
**Operation Mode:** The ZN63A(VS1)-24/GL operates in a manual mode, allowing for easy and efficient handling during maintenance and operation.
**Distance:** After disconnection, the minimum distance between contacts is maintained at 250 mm, ensuring safety and reliability during operation.
**Delivery:** We offer flexible delivery options, including express shipping and standard freight, to meet your project timelines.
**Packaging:** The product is securely packaged in a durable wooden crate, ensuring protection during transportation and handling.
ZN63A(VS1)-24/GL Isolated Handcart Introduction
The ZN63A(VS1)-24/GL Isolated Handcart is a high-performance vacuum circuit breaker solution designed for medium-voltage electrical systems. It is part of Shaanxi Huadian Electric Co., Ltd.'s renowned line of vacuum circuit breakers, known for their durability, safety, and efficiency in power distribution systems. The handcart is engineered to meet international safety standards and is ideal for industries that demand consistent, reliable protection of electrical equipment.
Product Features and Advantages
- High reliability: Equipped with advanced vacuum interrupter technology, the ZN63A(VS1)-24/GL provides reliable operation with minimal maintenance requirements, enhancing the safety of your electrical systems.
- Durable and robust: The circuit breaker handcart is built to withstand harsh industrial environments, ensuring long-term durability even under heavy-duty use.
- Compact and flexible design: Its space-saving design allows for easy integration into various power distribution systems, with flexibility in operation and maintenance.
- Enhanced safety: The isolated handcart structure ensures the highest level of electrical insulation, providing extra safety in high-voltage applications.
- Energy-efficient: Designed to minimize energy losses during operation, the ZN63A(VS1)-24/GL supports green energy initiatives by promoting efficient energy use.

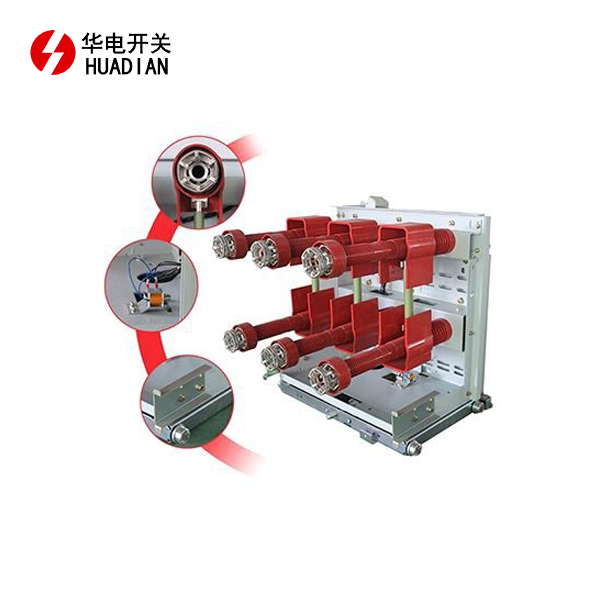

Product Structure
The ZN63A(VS1)-24/GL Isolated Handcart consists of several key components that work together to ensure optimal performance:
- Vacuum Interrupter: Provides high-speed arc extinction for safe circuit interruption.
- Isolated Enclosure: Guarantees electrical insulation between live parts and grounded metal components, improving user safety.
- Manual and Automatic Operation Modes: Offers flexible operation options, with both manual control and automated mechanisms for quick and efficient switching.
- Durable Chassis: The robust chassis structure supports the vacuum interrupter and other components, ensuring stability and long-term reliability.
Main Technical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 24 kV |
| Rated Current | 630A, 1250A, 1600A, 2000A |
| Rated Short-Circuit Breaking Current | 25 kA, 31.5 kA |
| Rated Short-Time Withstand Current | 20 kA/4s |
| Insulation Level | 50 kV |
| Operating Temperature | -10°C to +40°C |
Product Outline and Installation Dimensions:
(Unit:mm)
Product Use Conditions
The ZN63A(VS1)-24/GL Isolated Handcart is designed for use in a variety of environmental and operational conditions:
- Suitable for indoor applications.
- Operates efficiently in environments with humidity levels up to 90%.
- Ideal for areas with ambient temperatures ranging from -10°C to +40°C.
- Designed to perform well under medium-voltage power distribution conditions.
Product Application Scope
The ZN63A(VS1)-24/GL Isolated Handcart is widely used in several sectors, including:
- Power Plants: Providing reliable circuit interruption to protect power generation equipment.
- Metallurgy: Safeguarding high-voltage systems in industrial metal processing environments.
- Petrochemical Industry: Ensuring the safety and stability of electrical distribution systems in oil and gas facilities.
- Railways and Mining: Enhancing the safety and reliability of electrical systems in transport and mining operations.
- Urban and Rural Network Upgrades: Supporting the modernization of electrical grids in both urban and rural areas.
OEM Services
Shaanxi Huadian Electric Co., Ltd. offers comprehensive OEM services to meet the specific needs of its global customers. From customization of product parameters to adapting the design for specific application requirements, the company provides tailored solutions that ensure optimal performance and integration into different electrical systems.
FAQ
1. What is the lifespan of the ZN63A(VS1)-24/GL Isolated Handcart?
The product is designed to provide reliable service for over 20 years, with minimal maintenance required.
2. Can the handcart be customized to fit my specific requirements?
Yes, Shaanxi Huadian offers OEM services to customize the handcart based on your technical needs.
3. What certifications does the product meet?
The ZN63A(VS1)-24/GL is ISO9001:2000 certified, ensuring it meets international quality standards.
4. What industries can benefit from this product?
The handcart is suitable for power plants, petrochemical industries, metallurgy, mining, railways, and other industries requiring high-voltage protection.
5. How do I order this product?
You can contact us directly via email at [austinyang@hdswitchgear.com] for inquiries, pricing, and detailed product information.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information on the ZN63A(VS1)-24/GL Isolated Handcart, please contact Shaanxi Huadian Electric Co., Ltd. via email at [austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com].
