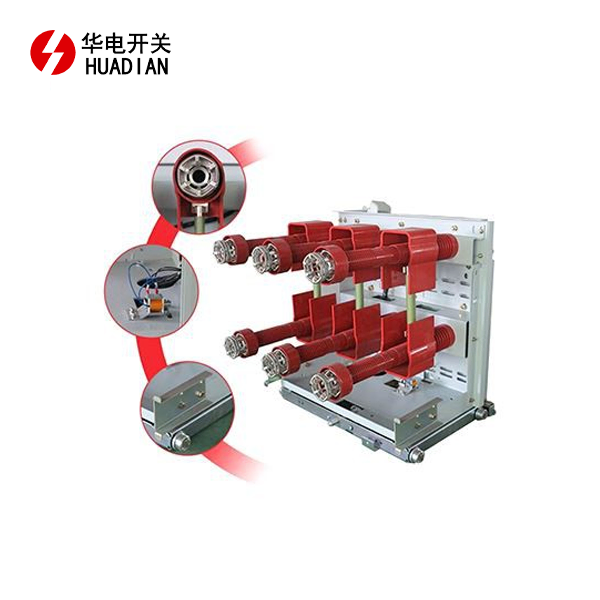

VEGM-12/GL Isolated Handcart
2. **Rated Current**: Supports a maximum continuous current of 630A under normal operating conditions.
3. **Tripping Capacity**: Capable of interrupting fault currents up to 20kA, providing excellent protection.
4. **Tripping Time**: Ensures rapid disconnection with a response time of less than 100 milliseconds.
5. **Operation Mode**: Available in manual, electric, or pneumatic operation modes for flexible use.
6. **Distance**: Guarantees a minimum contact separation distance of 125mm when disconnected.
7. **Delivery**: Worldwide shipping available via sea or air freight, based on customer preference.
8. **Packaging**: Securely packaged in reinforced wooden crates to ensure safe delivery.
VEGM-12/GL Isolated Handcart Introduction
The VEGM-12/GL Isolated Handcart is a reliable and efficient solution designed for isolating equipment in high-voltage systems. Manufactured by Shaanxi Huadian Electric Co., Ltd., this handcart is developed to meet the needs of medium to large-scale industries. With a focus on high performance, durability, and safety, the Isolated Handcart offers a seamless integration into various high-voltage operations.
Features and Advantages
The VEGM-12/GL Isolated Handcart is distinguished by a range of exceptional features that cater to the needs of high-voltage environments.
High Reliability: Engineered for dependable performance, this handcart excels in demanding conditions, ensuring that operations run smoothly without unexpected interruptions. Its design minimizes the risk of failure, making it a trusted choice for professionals in the field.
Ease of Operation: The user-centric design of the VEGM-12/GL simplifies both installation and maintenance, allowing technicians to quickly set up and service the equipment without extensive training. This accessibility translates to reduced downtime and operational efficiency, essential in fast-paced industrial settings.
Durability: Constructed from premium-quality materials, this handcart is built to endure the rigors of harsh environments, providing longevity and reducing the need for frequent replacements. Its robust build ensures that it remains functional and reliable over time, even in the most challenging situations.
Safety Compliance: Adhering to stringent industry standards, the VEGM-12/GL enhances operational safety and security. Its design incorporates multiple safety features that protect both the equipment and personnel, creating a secure working environment.
Product Structure
The Isolated Handcart is constructed with precision engineering, using robust materials that enhance its mechanical strength. The product includes:
- Metal-clad structure for added protection against external factors.
- Advanced insulation technology to prevent electrical leakage.
- Optimized load capacity for handling heavy equipment with ease.
Main Technical Parameters
Here are the key technical specifications of the Isolated Handcart:
| Parameter | Value |
|---|---|
| Rated Voltage | 12 kV |
| Rated Current | 630A |
| Rated Frequency | 50Hz |
| Insulation Level | 75/125kV |
| Protection Level | IP4X |
These parameters ensure that the handcart operates efficiently in high-voltage systems, providing both reliability and safety.
Product Outline and Installation Dimensions:
(Unit:mm)
Product Use Conditions
The VEGM-12/GL Isolated Handcart is designed for use in the following conditions:
- Ambient temperature: -25°C to +40°C
- Altitude: ≤1000m
- Humidity: Relative humidity ≤90% (non-condensing)
- Suitable for both indoor and outdoor environments, the handcart functions effectively even in challenging weather conditions.
Application Scope and Field
This handcart is widely used in industries such as:
- Power plants
- Metallurgy
- Petrochemical plants
- Railway systems
- Mining operations
- Urban construction and rural network transformation
The Isolated Handcart ensures smooth operations in these sectors, enhancing the safety and efficiency of electrical equipment.
OEM Services
At Shaanxi Huadian Electric Co., Ltd., we offer OEM services to meet specific customer requirements. We work closely with our clients to customize the VEGM-12/GL Isolated Handcart according to their unique operational needs. With a professional R&D team and a modern production facility, we are equipped to handle large-scale OEM orders.
FAQ
1. What is the maximum voltage rating of the Isolated Handcart?
The handcart is rated for 12 kV, making it ideal for medium-voltage systems.
2. Can this handcart be used in outdoor environments?
Yes, the Isolated Handcart is designed to perform effectively in both indoor and outdoor conditions.
3. How does the handcart enhance operational safety?
The Isolated Handcart features advanced insulation and metal-clad protection, minimizing the risk of electrical hazards.
4. Are there customization options available?
Yes, we provide OEM services to customize the handcart according to your specific requirements.
5. What are the delivery timelines for large orders?
Delivery timelines vary based on order volume, but we ensure timely delivery through our efficient supply chain.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information or to place an order, feel free to contact us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com. Our team is ready to assist you with all your procurement needs.
