Chassis of low voltage switchgear complete set
**Rated Current:** With a rated current capacity of 630A, this chassis supports continuous operation under normal working conditions, catering to diverse power distribution needs.
**Tripping Capacity:** It can effectively cut off fault currents up to 50kA, providing robust protection against electrical faults and ensuring system safety.
**Tripping Time:** The circuit breaker features a quick tripping time of less than 0.1 seconds, minimizing damage and enhancing safety during fault conditions.
**Operation Mode:** Available operation modes include manual, electric, and pneumatic, allowing for flexible integration into various system configurations.
**Distance:** The minimum contact distance after disconnection is 20mm, ensuring safety and compliance with industry standards.
**Delivery:** We offer multiple delivery methods, including express shipping and freight options, to accommodate your needs and ensure timely arrival.
**Packaging:** Each chassis is securely packaged in durable outer packaging to protect against damage during transportation, ensuring it arrives in perfect condition.
--- Feel free to adjust any sections as needed!

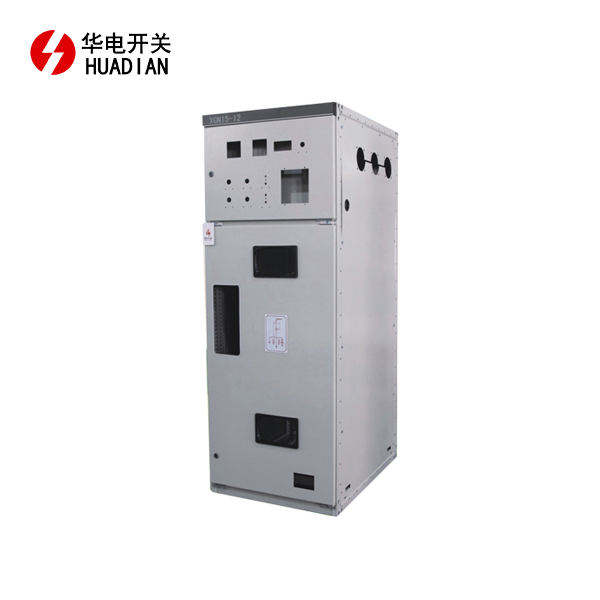

Chassis of Low Voltage Switchgear Complete Set
Welcome to Shaanxi Huadian Electric Co., Ltd., your trusted partner in advanced low voltage switchgear solutions. Our Chassis of Low Voltage Switchgear Complete Set is engineered for reliability, safety, and high performance, making it the preferred choice for industries that require stable and efficient power distribution.
Product Introduction
The Chassis of Low Voltage Switchgear Complete Set is designed to meet the most demanding industrial environments. Built with precision, this chassis forms the backbone of any switchgear assembly, ensuring optimal operation of low voltage systems. Whether you are upgrading your existing system or setting up a new power distribution network, this chassis is tailored to deliver consistent performance.
Product Features and Advantages
- High Durability: Crafted with top-quality materials to withstand harsh conditions, ensuring long-lasting performance.
- Compact Design: Optimized for space efficiency while maintaining full functionality.
- Easy Integration: Seamlessly integrates with various switchgear systems, providing flexibility in installation.
- Safety Assurance: Meets international safety standards, ensuring secure operation in all working environments.
- Customizable Options: Tailored configurations available to meet specific industrial requirements.
Product Structure
The Chassis of Low Voltage Switchgear Complete Set is made up of several key components, including:
- Base Frame: A robust support structure that anchors the entire switchgear assembly.
- Mounting Panels: Designed for secure placement of circuit breakers, meters, and other components.
- Busbars: High-conductivity materials ensure efficient power distribution throughout the system.
- Protection Housing: Ensures safe and clean housing for sensitive components, protecting them from environmental factors and accidental contact.
Main Technical Parameters
-
Rated Voltage: 12-40.5kV
-
Rated Current: Up to 4000A
- Frequency: 50/60Hz
- Protection Class: IP3X to IP4X
- Compliance: ISO9001:2000, IEC Standards
Product Use Conditions
Designed for both indoor and outdoor environments, the Chassis of Low Voltage Switchgear Complete Set can operate under various conditions, including:
- Ambient temperatures between -25°C and +40°C.
- Relative humidity of up to 90%.
- Installations at altitudes of up to 1000 meters.
Product Application Scope and Field
Our chassis is ideal for use in:
- Power Plants: Supporting stable power distribution for critical operations.
- Metallurgy and Mining: Withstanding the tough environments of heavy industries.
- Urban Construction: Facilitating reliable power distribution in growing urban areas.
- Petrochemical Industries: Supporting complex operations requiring consistent power.
- Rural Power Networks: Helping modernize and upgrade rural electricity grids.
OEM Service
At Shaanxi Huadian Electric Co., Ltd., we offer full OEM services to cater to your specific business needs. Whether you require customization in design or technical modifications, our engineering team is ready to provide tailor-made solutions that align with your project requirements.
FAQ
Q1: What makes the chassis durable for industrial use?
Our chassis is made from high-strength, corrosion-resistant materials that ensure longevity, even in extreme industrial environments.
Q2: Can the chassis be customized for specific projects?
Yes, we offer customization options to ensure the chassis fits perfectly with your operational needs.
Q3: How do I ensure compatibility with existing switchgear systems?
Our team provides detailed specifications and technical support to ensure seamless integration with your current setup.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information or to discuss your project needs, reach out to our team today at [austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com]. We’re here to help with any inquiries or technical support.
